lift leaf spring measurements
can anyone get me the length measurement off of the leaf springs? i have stock xj springs now, and and trying to fix my shackle angle and get a slight little lift on the front of my s10. Thanks in advanced!!
#3
CF Veteran
Join Date: Dec 2011
Location: PA KOTUFU!
Posts: 1,777
Likes: 0
Received 18 Likes
on
17 Posts
Year: 1998
Engine: 4.0L 162,000
I think that the XJ springs are 52" with 23" pin location.
Dakota springs are 56" and 24" pin location. Gives 1" stretch and requires RC shackle relocation boxes to use on XJ.
Dakota springs are 56" and 24" pin location. Gives 1" stretch and requires RC shackle relocation boxes to use on XJ.
#4
Newbie
Thread Starter
Join Date: Jun 2012
Location: Pleasant Dale, NE
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Comanche
Engine: 4.0l

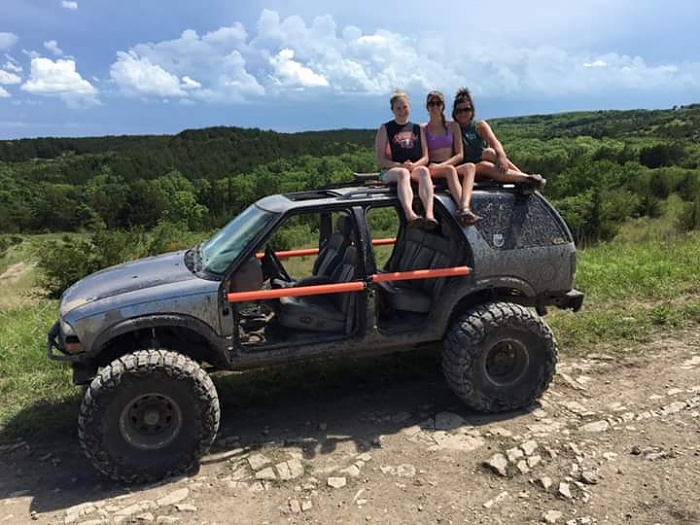

i was looking for lift spring lengths i guess, thats how i came up using the xj springs with the chart. with lift spring the overall length will be 52(51.5) but with once you measure straight across and not follow the arch it will be less like 50inches or so, right now you can kinda see the front springs are flat you cant see my shackle at all for how much of an angle its at. so i was trying to see what 3.5 lift spring length is compared to a 4.5 or so? if that makes since at all? and i have them on the front of my blazer not the rear to clear that up too.
#6
Beach Bum
Trending Topics
#8
Beach Bum

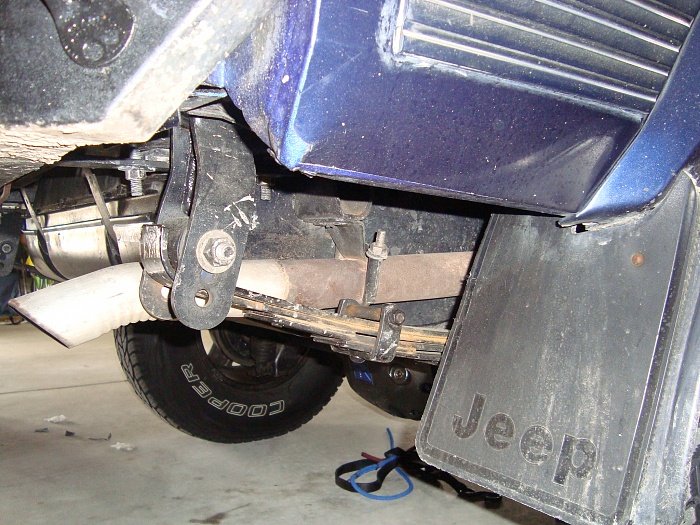

51.25" eye-to-eye at ride height with almost vertical shackle angle. Can reference previous picture for shackle angle.
