You got it in one. I thought about using 285's but those would defiantly rub.
I'll be changing tires soon, but I'm sticking with this size. Running a 4 1/2" kit. No rub issues, yet.
I'll be changing tires soon, but I'm sticking with this size. Running a 4 1/2" kit. No rub issues, yet.
#28
Old School CF Moderator
Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes
on
3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Whoopie!

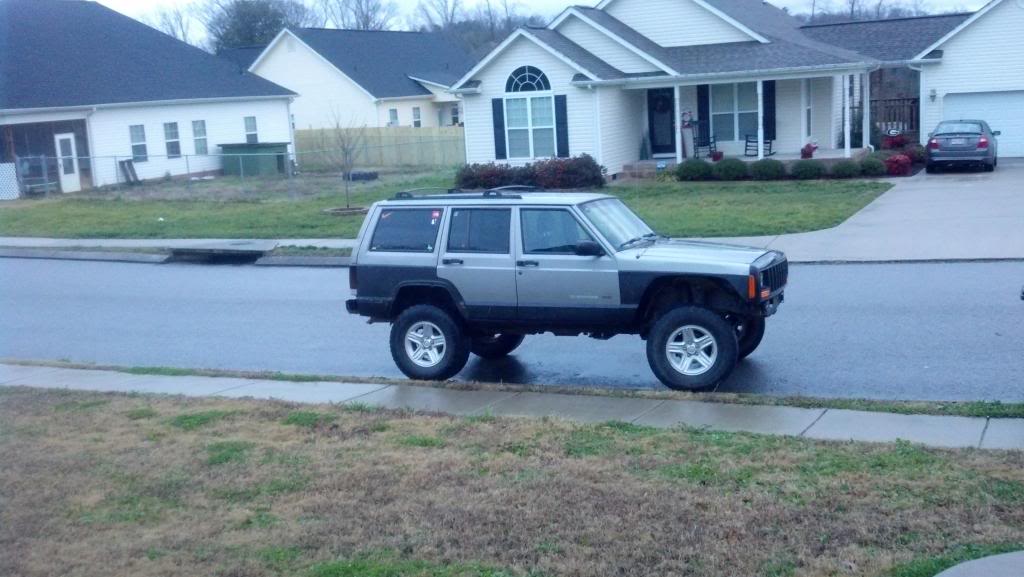

Keep getting random offers on my icons..guess they are pretty desirable. Just havent decided if I want to keep em and run em with 35s and spacers, or get something different.
Keep getting random offers on my icons..guess they are pretty desirable. Just havent decided if I want to keep em and run em with 35s and spacers, or get something different.
#29
Member
Join Date: Jan 2012
Location: Texas
Posts: 124
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Back to the original question--There are a bunch of passenger cars and light trucks that have 4.5"-on-5-lug wheels. Ford Ranger is the first one that comes to mind. Ford Bronco II's also. The problem is that even the 15" Ranger or Bronco wheels usually only have a 7" wide rim. Most off-road tires are going to need a wheel with 8-10" wide rim (measured across where the tire's beads seat in the wheel: "inboard beadseat-to-outboard beadseat.")
I found some Ford Crown Victoria wheels in my local JY ($120 for five wheels--$24 apiece) that have 4.5-on-5-lug holes and that are 16" diameter with an 8" wide rim. The back spacing isn't too great though--6" (Stock XJ rims are back spaced 5".) I'm going to have to run aluminum spacers, and that's another $200. The 15" wheels I'm running right now have a 4" back spacing. That two inches is going to be a problem, and I may not be able to run the tires I want to run (Treadwright Max Trax M/T (D) 265/75R-16's) on these Crown Vic wheels. I may have to buy different wheels (dammit). I was trying to go the less expensive, "more hobo" route by going with JY rims, but I bought the Crown Vic wheels in the rain and like an idiot, I did not measure the back spacing with a tape measure before I bought them. ("Looks like they'll run okay--load 'em up, we're gettin' soaked.")
Life Lesson #1--MEASURE EVERYTHING AT LEAST TWICE.
If I wind up buying more wheels, I'm going aftermarket, 16" wheels, 8" wide rim with a 4" back spacing.
I found some Ford Crown Victoria wheels in my local JY ($120 for five wheels--$24 apiece) that have 4.5-on-5-lug holes and that are 16" diameter with an 8" wide rim. The back spacing isn't too great though--6" (Stock XJ rims are back spaced 5".) I'm going to have to run aluminum spacers, and that's another $200. The 15" wheels I'm running right now have a 4" back spacing. That two inches is going to be a problem, and I may not be able to run the tires I want to run (Treadwright Max Trax M/T (D) 265/75R-16's) on these Crown Vic wheels. I may have to buy different wheels (dammit). I was trying to go the less expensive, "more hobo" route by going with JY rims, but I bought the Crown Vic wheels in the rain and like an idiot, I did not measure the back spacing with a tape measure before I bought them. ("Looks like they'll run okay--load 'em up, we're gettin' soaked.")
Life Lesson #1--MEASURE EVERYTHING AT LEAST TWICE.
If I wind up buying more wheels, I'm going aftermarket, 16" wheels, 8" wide rim with a 4" back spacing.
