96 Cherokee automatic tcm

Thread Tools

Search this Thread

Old 04-28-2017 | 07:01 PM
  #1
SterlingW's Avatar
Thread Starter
Newbie

Joined: Mar 2017
Posts: 7
Likes: 0
Model: Cherokee
Default 96 Cherokee automatic tcm

Ok so i just got a 96 cherokee up and running but it wont shift. I can manually shift it to 1st then to the 3rd gear but drive goes straight yo 3rd or 4th. I noticed theres a connector hanging down under the passengerside dash that looks like a computer connector. My question is where is the transmission control module on these? I think mines missing haha Picked it up it was sitting for a while and got it running healthy but i need to get that fixed. Thanks in advance.
Old 04-28-2017 | 10:36 PM
  #2
SterlingW's Avatar
Thread Starter
Newbie

Joined: Mar 2017
Posts: 7
Likes: 0
Model: Cherokee
Default

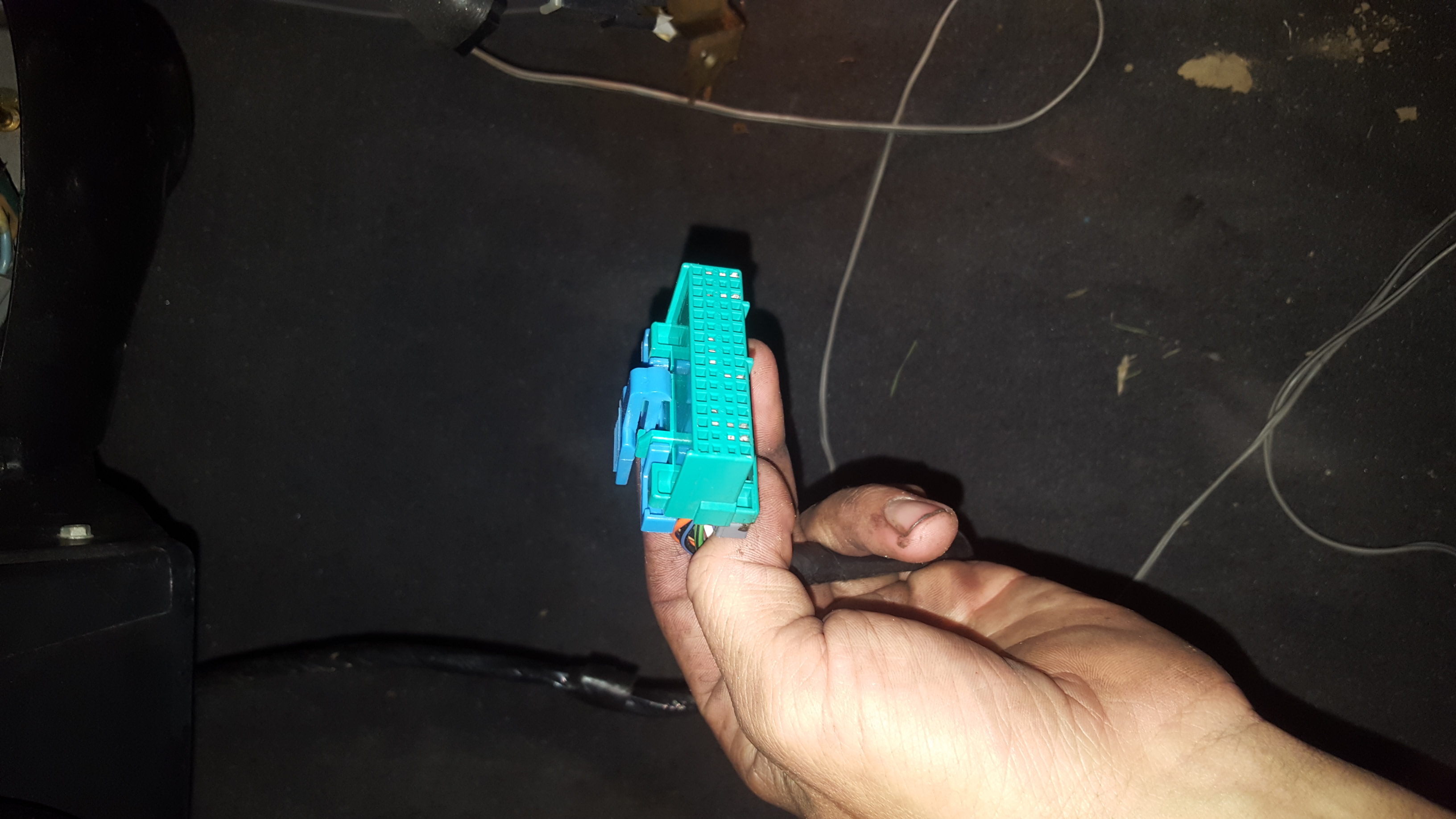

Heres what the connector looks like
Attached Thumbnails 96 Cherokee automatic tcm-20170428_212206.jpg
Old 04-29-2017 | 09:55 AM
  #3
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,566
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

That's the plug for the TCU!!!!
Look up under the dash above the plug.
