Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

AC compressor busting belts!!

Thread Tools

Search this Thread

Old 02-25-2018 | 12:55 PM
  #1
John T's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2010
Posts: 283
Likes: 12
From: Oxford, CT.
Year: 1998
Model: Cherokee
Engine: 4.0
Default AC compressor busting belts!!

Busted a serpentine belt this morning...
threw on my spare ... but it kept squealing...
finally noticed the AC compressor pulley stuck.

I swore I just replaced this whole unit.

I unplugged it and it spins free.....

Q:

Can I replace just the clutch?
or do I need to replace the whole unit again?

thanks.

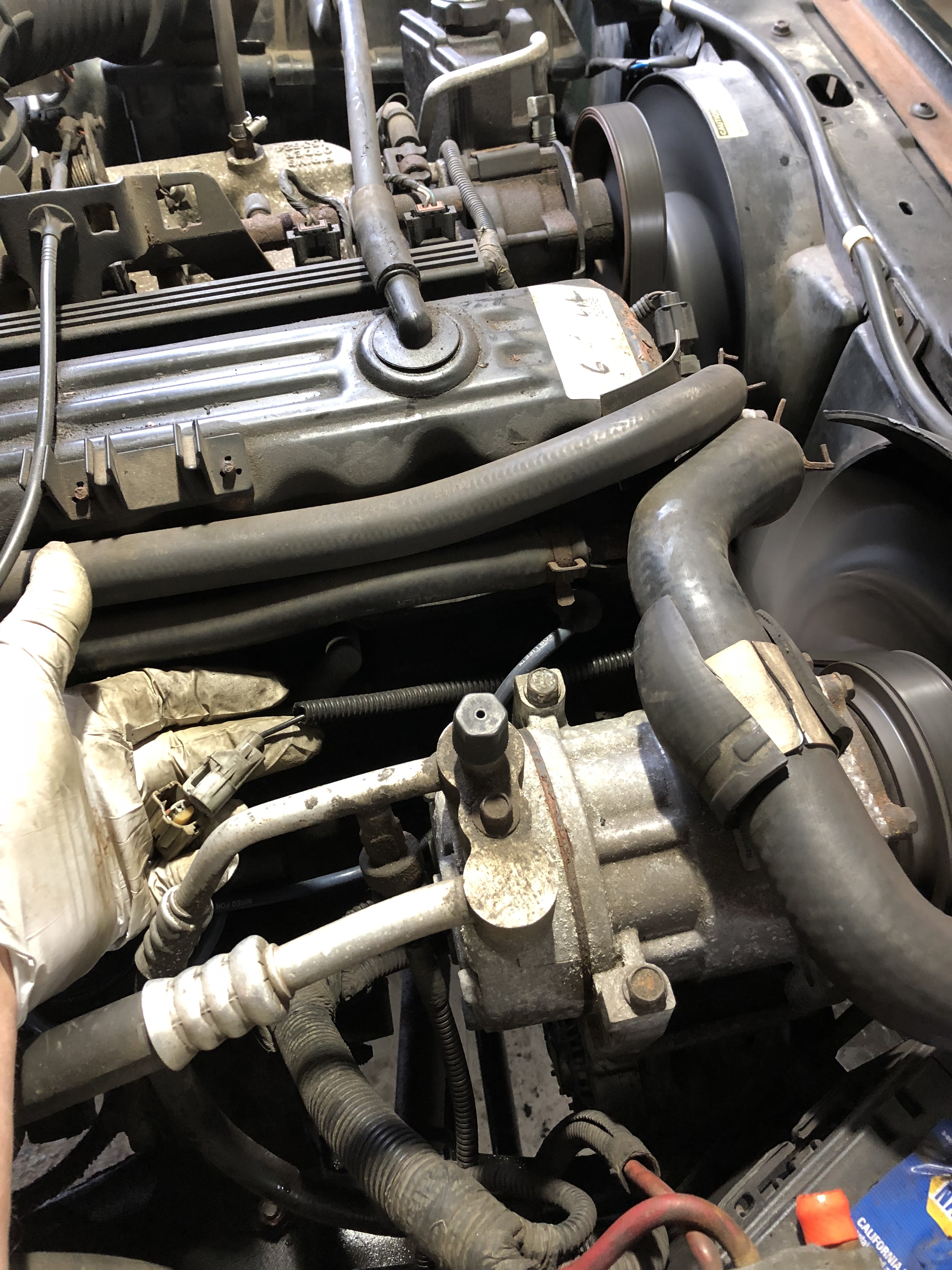

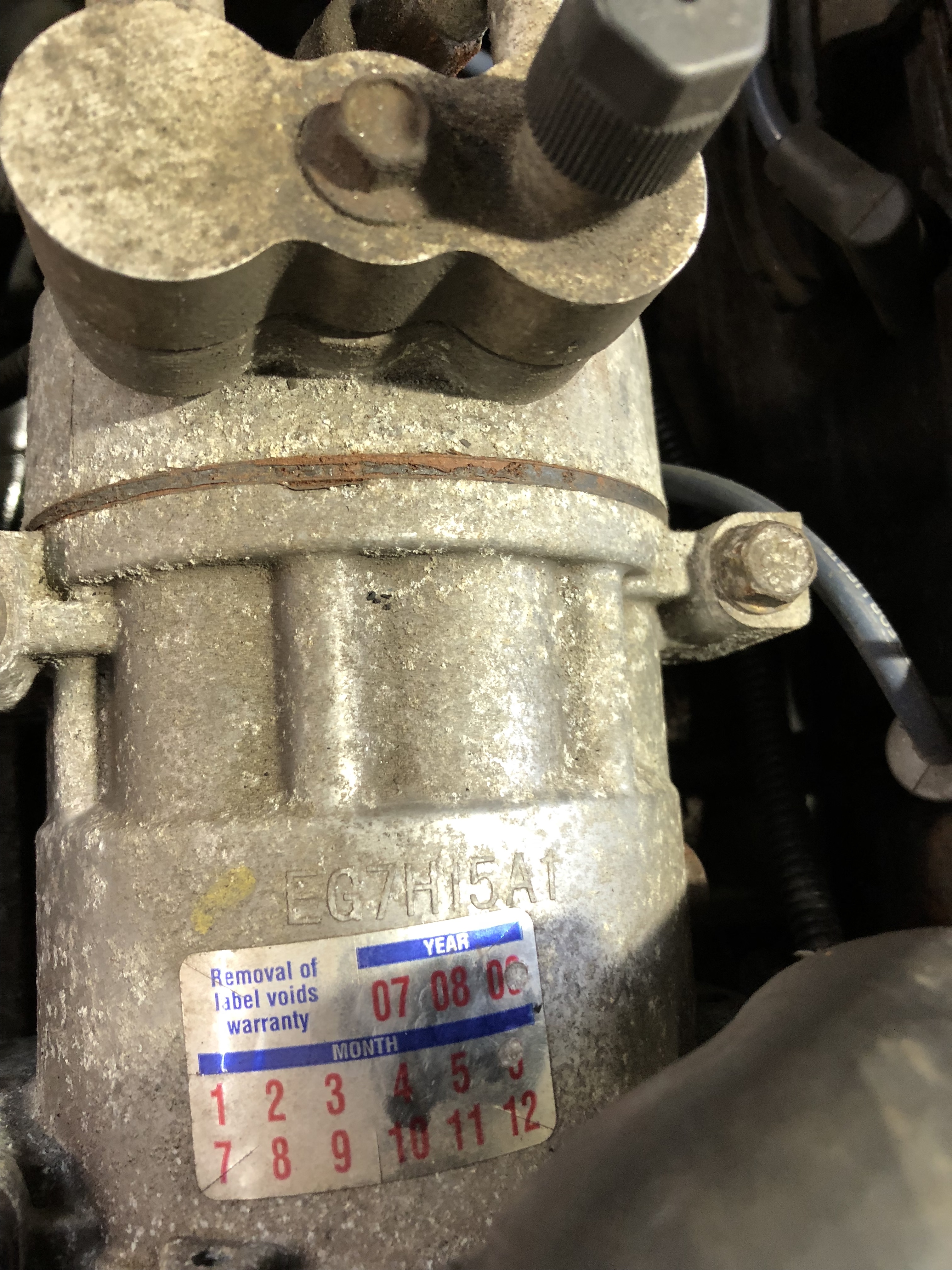

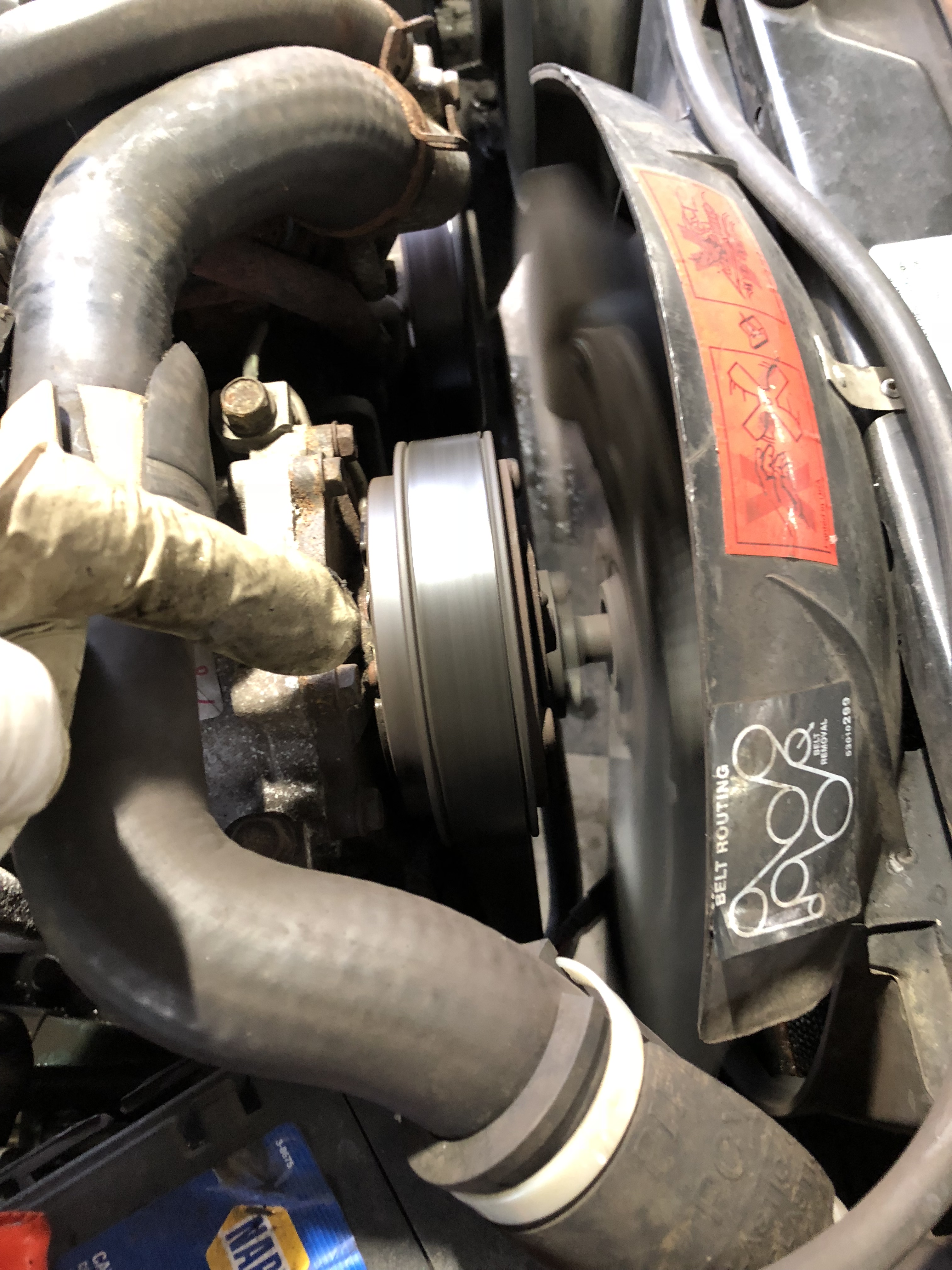

Attached Thumbnails AC compressor busting belts!!-img_8019.jpg   AC compressor busting belts!!-img_8020.jpg   AC compressor busting belts!!-img_8021.jpg
Old 02-25-2018 | 12:58 PM
  #2
John T's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2010
Posts: 283
Likes: 12
From: Oxford, CT.
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Just noticed... it's been 9 years...

I guess time flys....

anyway... I'd still rather not deal with recharging the freon
Old 02-25-2018 | 01:05 PM
  #3
fb97xj1's Avatar
CF Veteran

Joined: Dec 2015
Posts: 3,038
Likes: 337
From: PA
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

If the ribbed pulley doesnt spin freely, the compressor seized up.
Old 02-25-2018 | 01:09 PM
  #4
John T's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2010
Posts: 283
Likes: 12
From: Oxford, CT.
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by fb97xj1
If the ribbed pulley doesnt spin freely, the compressor seized up.
It's the compressor clutch. not the compressor..... pretty sure.

but you may be right... I have been wrong a few times...


anyone else...?
Old 02-25-2018 | 03:37 PM
  #5
John T's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2010
Posts: 283
Likes: 12
From: Oxford, CT.
Year: 1998
Model: Cherokee
Engine: 4.0
Default

OK

thinking about this.... I think you are right....

It must be the actual compressor locked up and not the clutch....

the clutch spins freely.... and when it engages, the pully stops... must be the compressor IS locked...

still waiting for some more input.... but I guess I will be swapping out the entire compressor...

Another Question... Is there a shut off valve to minimize Freon loss?
Old 02-25-2018 | 06:28 PM
  #6
Turbo X_J's Avatar
CF Veteran

Joined: Sep 2009
Posts: 8,567
Likes: 19
From: ☼ Blackhole Sun
Year: My Jeep is a GMC
Default

Have the system properly evacuated then flushed to remove any shrapnel. Replace at least the compressor and accumulator. Then evacuate the system, verify there are no leaks then add fresh oil and the proper charge of refrigerant.
Old 02-25-2018 | 07:12 PM
  #7
KenR's Avatar
Junior Member

Joined: Sep 2017
Posts: 58
Likes: 0
From: Central NJ
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

John T? As in John T and the Hooligans?

Yes, You can replace just the compressor clutch, you just have to get the air gap right.

I'll bet you need a compressor tho.

Last edited by KenR; 02-25-2018 at 07:14 PM. Reason: More info
Old 02-25-2018 | 11:29 PM
  #8
John T's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2010
Posts: 283
Likes: 12
From: Oxford, CT.
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by KenR
John T? As in John T and the Hooligans?
.
Thats right Sexy Legs....

I get around...
Old 02-25-2018 | 11:39 PM
  #9
John T's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2010
Posts: 283
Likes: 12
From: Oxford, CT.
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Turbo X_J
Have the system properly evacuated then flushed to remove any shrapnel. Replace at least the compressor and accumulator. Then evacuate the system, verify there are no leaks then add fresh oil and the proper charge of refrigerant.
What is your opinion of my problem here...

clutch OR compressor?

with the (compressor)electrical plug connected and AC (or heater controls) on
The pulley locks up.

disconnect the plug and the pulley spins free....
Old 02-26-2018 | 12:16 AM
  #10
Rambler65's Avatar
Senior Member
Premium Member

Joined: Sep 2015
Posts: 922
Likes: 65
From: Abysmo, NJ
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Turbo X_J
Have the system properly evacuated then flushed to remove any shrapnel. Replace at least the compressor and accumulator. Then evacuate the system, verify there are no leaks then add fresh oil and the proper charge of refrigerant.
If the compressor fails on an R134 system it's best to also replace the condenser. Since the condenser is parallel-flow, any debris can get wedged in there and flushing compound just goes around it - then later the metal shards come loose and trash your new compressor. Ditto for the evaporator if it is parallel-flow.
Old 02-26-2018 | 07:40 AM
  #11
Waynerd's Avatar
CF Veteran

Joined: Jan 2015
Posts: 1,469
Likes: 26
From: North canaan Connecticut
Year: 01, 99, 98, 98,98
Model: Cherokee
Engine: 4.0
Default

I've been running with the clutch plate removed from mine for about a year and a half. No problems but no AC. The bearing went in my pulley. I had one from a different model that wouldn't let the clutch disengage because it was slightly different. The pulley will free spin and only when the clutch engages will the compressor turn. I think if you unplug the compressor it shouldn't engage.
Old 02-26-2018 | 11:28 PM
  #12
John T's Avatar
Thread Starter
Seasoned Member

Joined: Jan 2010
Posts: 283
Likes: 12
From: Oxford, CT.
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Turbo X_J
Have the system properly evacuated then flushed to remove any shrapnel. Replace at least the compressor and accumulator. Then evacuate the system, verify there are no leaks then add fresh oil and the proper charge of refrigerant.
I brought it to my friend who owns a repair shop..

Yes, The compressor is locked up. He said he would replace the compressor/accumulator and also one of the lines that runs to the compressor.... top/bottom/can't remember....

He feels he should be able to flush the system successfully.

I usually fix anything I can / mechanically, but AC / I'll just have him do the job.....

Gotta pick your battles....


He also told me the AC compressor works with the defroster... blowing dry air to the windshield....

learned something there.
Old 02-27-2018 | 12:02 AM
  #13
Turbo X_J's Avatar
CF Veteran

Joined: Sep 2009
Posts: 8,567
Likes: 19
From: ☼ Blackhole Sun
Year: My Jeep is a GMC
Default
