Air conditioning "where to start"
#31
CF Veteran
Joined: Mar 2010
Posts: 47,923
Likes: 30
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
, you do no leaving the pressure switch jumped is not safe correct,when it stops working is there still current at jumper
#32
CF Veteran
Joined: Dec 2010
Posts: 1,246
Likes: 1
From: Missouri
Year: 1998
Model: Cherokee
Engine: I6 4.0 L
Originally Posted by freegdr
by passing the presssure switch clutch should stay engaged no matter what pressuers there, check for current at switch plug with ac on key in run position yet?
#35
CF Veteran
Joined: Mar 2010
Posts: 47,923
Likes: 30
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
#37
CF Veteran
Joined: Dec 2010
Posts: 1,246
Likes: 1
From: Missouri
Year: 1998
Model: Cherokee
Engine: I6 4.0 L
Originally Posted by freegdr
by passing it for a few seconds is ok for a quick compressor check,proper freon levels/pressure will keep the compressor running
#40
CF Veteran
Joined: Dec 2010
Posts: 1,246
Likes: 1
From: Missouri
Year: 1998
Model: Cherokee
Engine: I6 4.0 L
Originally Posted by freegdr

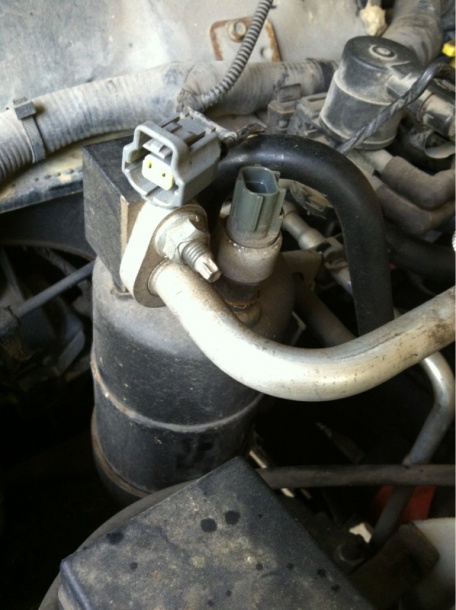

yes those are low pressure switchs
#41
CF Veteran
Joined: Mar 2010
Posts: 47,923
Likes: 30
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

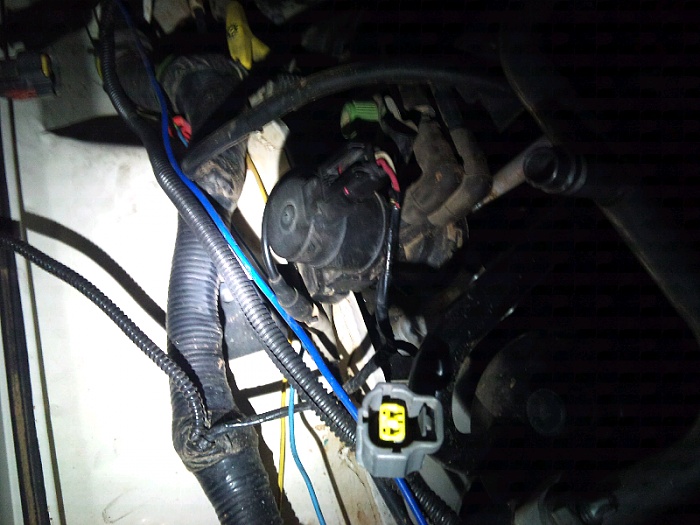

Not trying to hack the thread but quick question. My ac system has probably less than an ounce to no refrigerant in it. I'm gonna recharge it this week. When I go to jump the plug, the compressor kicks on and squeals or squeaks then shuts off. Is that because there is no refrigerant in the system to lube it to help it run smoothly? Or is the squeak bad?
Last edited by freegdr; 04-23-2012 at 07:33 PM.
#42
CF Veteran
Joined: Dec 2010
Posts: 1,246
Likes: 1
From: Missouri
Year: 1998
Model: Cherokee
Engine: I6 4.0 L
Originally Posted by freegdr
squees bad unless belts doing it from improper tension
#44
Senior Member
Joined: Feb 2012
Posts: 864
Likes: 4
From: Arlington, Texas
Year: 1998
Model: Cherokee
Engine: 4.0
I lived through that crazy heat wave here last summer with 100+ temps for weeks at stretch. Not anyone's idea of a good time...
#45
So when my low gauge hits 45 the compressor will kick on. The high side will go to 150, but then the low side will drop and the compressor kicks off. When it does kick on it kicks right back off. The cycles starts over. Lows side hits 45 and kicks compressor on, as this happens the high side goes to 150 but the low side drops again and the compressor kicks off. Over and over and over.........
