Axel Identification TEST!
12-04-2012 | 03:43 PM
#3
Thread Starter
Member
Joined: Aug 2012
Posts: 115
Likes: 1
From: Fort Myers
Year: 1998
Model: Cherokee
Engine: 4.0

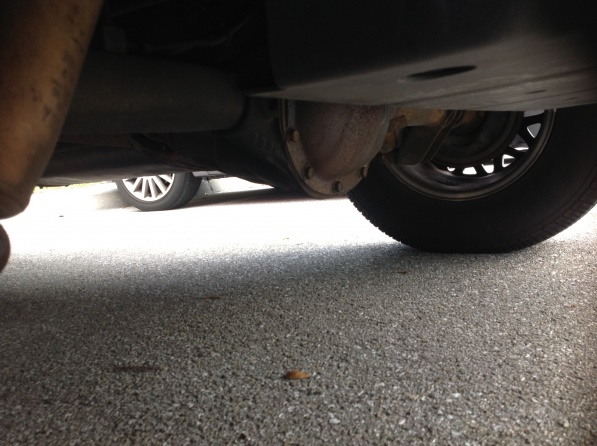

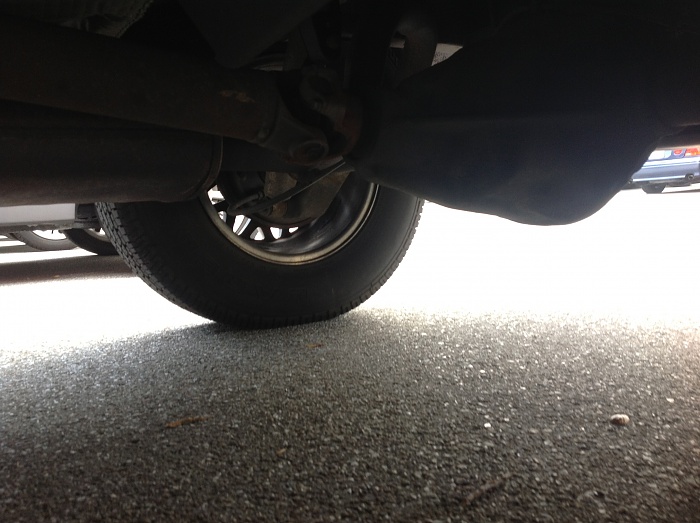

on the 8.25 the ring gear relief is flat on the bottom on the 35 it dips...hard to see in the picture I know, 100% certain its an 8.25? You'll make me happy if you say it is.
12-04-2012 | 03:45 PM
#4
CF Veteran
Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output

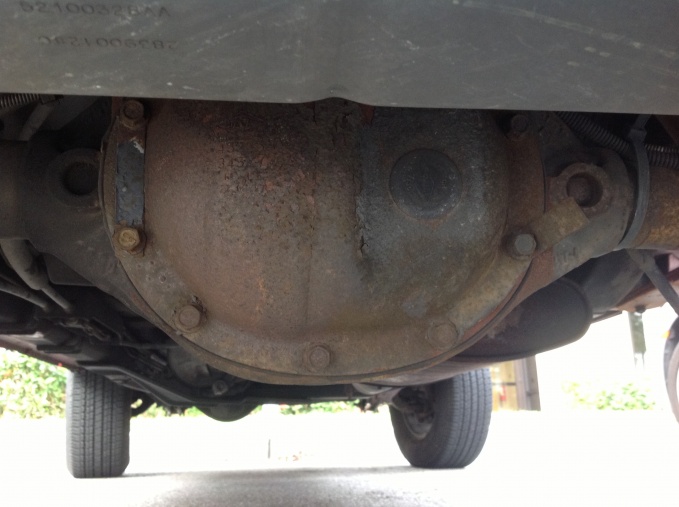

Post up another pic - from directly behind the axle - so you can see the diff cover, harder to tell on my phone but looks like it... You'll have better ring gear and a 29 spline axle if so
Trending Topics
12-04-2012 | 06:27 PM
#10
Senior Member
Joined: Aug 2010
Posts: 850
Likes: 4
From: Arcata California
Year: 1996
Model: Cherokee
Engine: 4.0
Don't worry about it till you want to put 33's on it. Ignore the fact that you even have a rear diff. Lift it, put big tires on, wheel it, wheel it, wheel it, then change diff and wheel harder.
12-04-2012 | 07:49 PM
#11
CF Veteran
Joined: Jan 2012
Posts: 3,170
Likes: 311
From: Australia
Year: 1997 (RHD)
Model: Cherokee (XJ)
Engine: 4.0 ltr
Bugger, mine looks quite similar, after using other thread identification pics, I thought mine was a 8.25. So, please, help me out here: is mine a 35 or the 8.25?
12-04-2012 | 08:03 PM
#14
Senior Member
Joined: Apr 2012
Posts: 954
Likes: 1
From: Vegas
Year: 1992
Model: Cherokee
Engine: I6

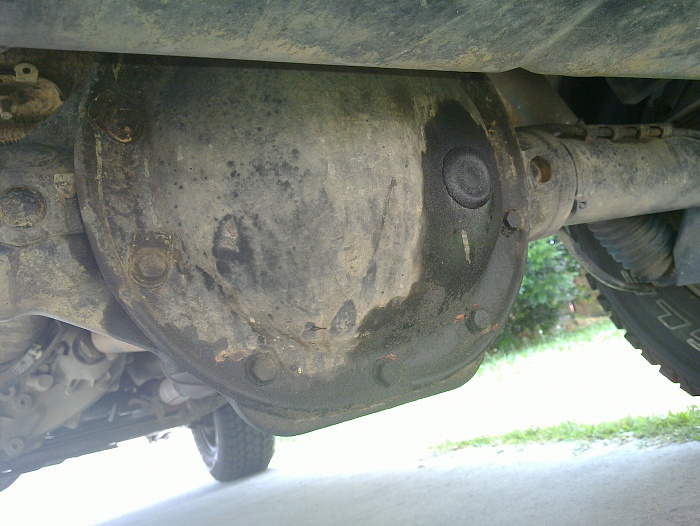

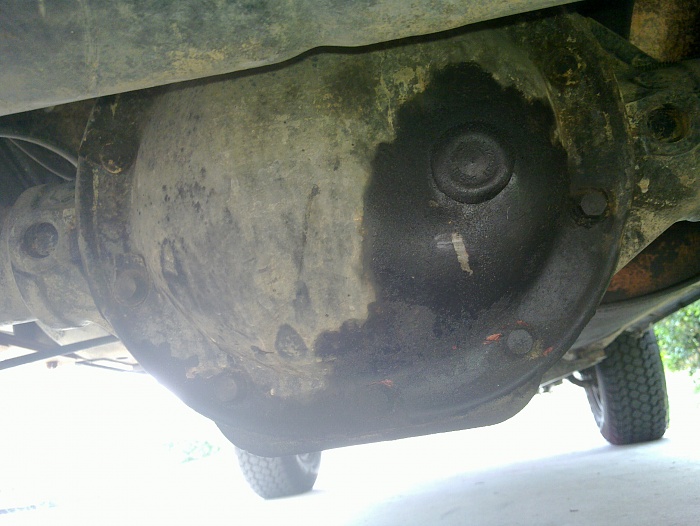

Bugger, mine looks quite similar, after using other thread identification pics, I thought mine was a 8.25. So, please, help me out here: is mine a 35 or the 8.25?
Attachment 159152
Attachment 159153
Attachment 159152
Attachment 159153
