Clutch fork issues
07-04-2013, 09:40 PM
#1
Newbie
Thread Starter
Join Date: Jun 2013
Location: California
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Clutch fork issues
So the clutch fork on our cherokee decided to detach itself from the inside of the bell housing... This may sound incredibly lazy, but does anyone know any way to fix this without dropping the tranny? Any suggestions would be appreciated.
07-05-2013, 07:11 AM
#2
CF Veteran
Join Date: Aug 2009
Location: Hanover,Ont, Canada
Posts: 1,047
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1991
Model: Cherokee
Engine: 4.o
I think you will have to remove trans... If the fork managed to jump out, there must be something else going on in there. Damaged release brg, or failing pressure plate????
07-05-2013, 02:11 PM
#3
Newbie
Thread Starter
Join Date: Jun 2013
Location: California
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
My dad was thinking that could be part of the problem. We just did the clutch, but something might have been defective. At the very least I'm pretty sure the retainer clip for the fork is worn out or broken.
07-07-2013, 12:34 AM
#4
Newbie
Thread Starter
Join Date: Jun 2013
Location: California
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Looks like we're gonna have to pull the trans to fix it... Does anyone know if the clutch fork is only supposed to go in one way? Not sure if that might have been part of the problem...
07-07-2013, 12:38 AM
#5
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 26 Likes
on
26 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

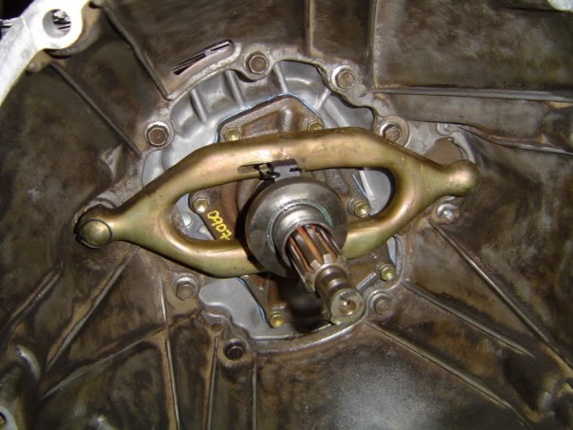

Only fit one way sounds like clip on ball broke ,pressure from slave should keep it tight on bell housing ?
Last edited by freegdr; 07-07-2013 at 12:42 AM.
02-01-2018, 09:10 PM
#6
Newbie
Join Date: Aug 2012
Location: land of ILL
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996 tudor,00 fodo, stock,stock
Model: Cherokee
Engine: 4.0
02-01-2018, 09:23 PM
#7
CF Veteran
Join Date: Nov 2017
Location: Groton, MA
Posts: 3,700
Received 235 Likes
on
208 Posts
Year: 1995
Model: Cherokee(XJ)
Engine: I6 4.0L
Summit https://www.summitracing.com/parts/c...yABEgJpIvD_BwE
Quadratec sells it too.
You can probably find it at a dealer since it looks like it spans a lot of years and models.
Quadratec sells it too.
You can probably find it at a dealer since it looks like it spans a lot of years and models.
