Clutch issues
#1
Member
Thread Starter
Join Date: Jan 2010
Location: Schuylkill County PA
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 HO I-6
Clutch issues
I just replaced the clutch master cyl and bled my clutch and now the pedal sits about 4" from the floor instead of the normal 8" or 9". Very hard to get it into gear and when you pull out it grabs about a centimeter off the floor. I'm leaning towards the clutch pedal being bent. Anyone have any pics of a straight pedal compared to a bent one?
#2
Seasoned Member
Join Date: Nov 2011
Location: West Warwick, RI
Posts: 289
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L High Output
Im having the exact same issue and have been trying to fix it for MONTHS. Hope one of us can track down the issue. How many miles on your XJ?
#5
Member
Thread Starter
Join Date: Jan 2010
Location: Schuylkill County PA
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 HO I-6
It's a hydraulic system I didn't think there was a cable or linkage. If the pedal is bent than it won't properly bleed right so yes there prob still is air in it. I just have to get my pedal off to see if I can tell if its bent or not.
My 94 xj country had 161xxx on it.
My 94 xj country had 161xxx on it.
#7
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 29 Likes
on
28 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
To bleed it you need two people if theres a bleeder ,yu push pedal half way down open bleeder then push pedal to floor close bleeder . Keep bleeding this way until pedal get good . checking fluid every couple of times . one other thing a member on here had a inner rubber cup inside his master made it difficult to bleed he removed it and pedal beed fine.
Trending Topics
#8
Junior Member
Join Date: Jul 2011
Location: Western Washington
Posts: 85
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
I just replaced the clutch master cyl and bled my clutch and now the pedal sits about 4" from the floor instead of the normal 8" or 9". Very hard to get it into gear and when you pull out it grabs about a centimeter off the floor. I'm leaning towards the clutch pedal being bent. Anyone have any pics of a straight pedal compared to a bent one?
You asked for pictures - these are all of the bad pedal. The short actuator arm with the stud should be parallel, and not twisted, to the pedal arm.
#9
Member
Thread Starter
Join Date: Jan 2010
Location: Schuylkill County PA
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 HO I-6
Thanks for the pics Darrell.
I think I have my pedal linkage twisted because when all this went down and my pedal was hard as a rock I was putting some serious leg into it and finally got it to go to the floor with little pressure. Now the pedal sits a few inches off the floor and when I removed and replaced the new master it was a ***** trying to get the plastic end on and off.
I'm wondering if the pedal is twisted and I straighten it if the pedal will be sitting in its normal location again. And then I can properly bleed it because the pedal will have it's full length of travel.
I think I have my pedal linkage twisted because when all this went down and my pedal was hard as a rock I was putting some serious leg into it and finally got it to go to the floor with little pressure. Now the pedal sits a few inches off the floor and when I removed and replaced the new master it was a ***** trying to get the plastic end on and off.
I'm wondering if the pedal is twisted and I straighten it if the pedal will be sitting in its normal location again. And then I can properly bleed it because the pedal will have it's full length of travel.
#10
Member
Thread Starter
Join Date: Jan 2010
Location: Schuylkill County PA
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 HO I-6
PROBLEM SOLVED!!!!
Just removed the clutch pedal and as soon as I got it in my hands I can see it was twisted. Over to vise I went with a pipe wrench and straightened it out. Got it all back up in place and you wouldn't believe it but the plastic end on the master rod just fell right onto the pin. I was in awe. No pliers, no screwdrivers it just slipped on. I then got out and looked at the pedals and look at that both brake and clutch were even with each other.
Check the fluid in the master it was full. Didn't try and bleed it again and took it for a spin. Drives nice.
The only issue with it now is that the clutch grabs real high and almost feels like I'm in a Vw with those super soft clutches that you can't even feel. Will bleeding it again make the pedal a little stiffer and grab at a different spot?
Thanks everyone for all your input.
Amen to cherokeeforum. You can find anything and if you can't someone most likely went through the same prob you are and can chime in with some insight.

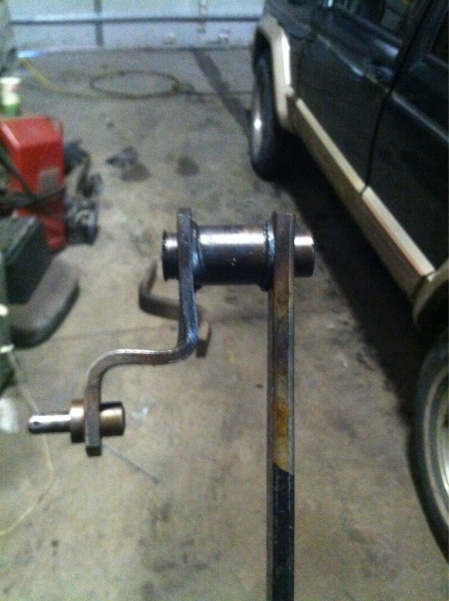

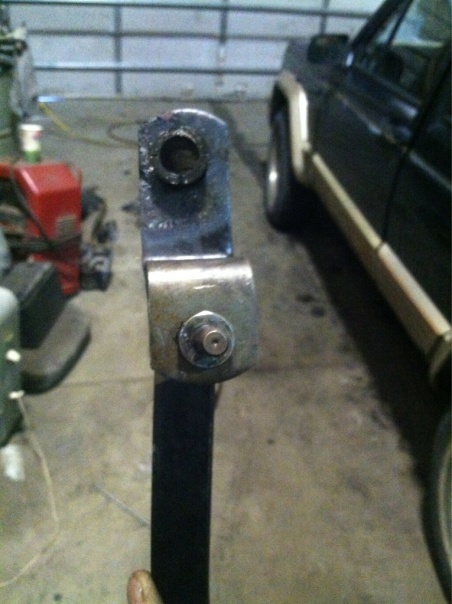

Here's a pic of my twisted arm. It wasn't off by much but man did it make a difference.
Just removed the clutch pedal and as soon as I got it in my hands I can see it was twisted. Over to vise I went with a pipe wrench and straightened it out. Got it all back up in place and you wouldn't believe it but the plastic end on the master rod just fell right onto the pin. I was in awe. No pliers, no screwdrivers it just slipped on. I then got out and looked at the pedals and look at that both brake and clutch were even with each other.
Check the fluid in the master it was full. Didn't try and bleed it again and took it for a spin. Drives nice.
The only issue with it now is that the clutch grabs real high and almost feels like I'm in a Vw with those super soft clutches that you can't even feel. Will bleeding it again make the pedal a little stiffer and grab at a different spot?
Thanks everyone for all your input.
Amen to cherokeeforum. You can find anything and if you can't someone most likely went through the same prob you are and can chime in with some insight.
Here's a pic of my twisted arm. It wasn't off by much but man did it make a difference.
#11
Member
Thread Starter
Join Date: Jan 2010
Location: Schuylkill County PA
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 HO I-6
Originally Posted by TABonifacio
Im having the exact same issue and have been trying to fix it for MONTHS. Hope one of us can track down the issue. How many miles on your XJ?
#12
Junior Member
Join Date: Jul 2011
Location: Western Washington
Posts: 85
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
Thanks for the pics Darrell.
I think I have my pedal linkage twisted because when all this went down and my pedal was hard as a rock I was putting some serious leg into it and finally got it to go to the floor with little pressure. Now the pedal sits a few inches off the floor and when I removed and replaced the new master it was a ***** trying to get the plastic end on and off.
I'm wondering if the pedal is twisted and I straighten it if the pedal will be sitting in its normal location again. And then I can properly bleed it because the pedal will have it's full length of travel.
I think I have my pedal linkage twisted because when all this went down and my pedal was hard as a rock I was putting some serious leg into it and finally got it to go to the floor with little pressure. Now the pedal sits a few inches off the floor and when I removed and replaced the new master it was a ***** trying to get the plastic end on and off.
I'm wondering if the pedal is twisted and I straighten it if the pedal will be sitting in its normal location again. And then I can properly bleed it because the pedal will have it's full length of travel.
I'd be careful with the repair you made. That metal is fatigued, it's likely to do it again. May last a while, but I would guess it will fail, probably break, at the point where it's been fatigued. Better idea would be to replace the pedal, or to at least run a weld bead in the 90 degree bend where it failed on you. You should be able to find a clutch pedal - not an easy find, but they're out there.
#13
Member
Thread Starter
Join Date: Jan 2010
Location: Schuylkill County PA
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 HO I-6
Originally Posted by DarrellXJ
This is exactly the way mine went. Same twist. The clutch and brake pedal distance from the floorboard should match nearly exactly. I kept thinking it was an issue with the clutch master and the pressure was just fubared and it wasn't returning to the correct spot.
I'd be careful with the repair you made. That metal is fatigued, it's likely to do it again. May last a while, but I would guess it will fail, probably break, at the point where it's been fatigued. Better idea would be to replace the pedal, or to at least run a weld bead in the 90 degree bend where it failed on you. You should be able to find a clutch pedal - not an easy find, but they're out there.
New prob now. Went to bleed it and stripped the Allen plug on the slave. Anyone know what else will thread into that hole? I can prob get it back out but don't know what I can put in its place. I was thinking of taking the plug out and drilling the Allen home a tad bigger and sticking a 1/4" bold in the home and welding it so if I ever had to bleed it again all I need is a 7/16" wrench. Not sure if it will work though.
#14
Junior Member
Join Date: Jul 2011
Location: Western Washington
Posts: 85
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
True. Now I know if the pedal ever goes solid DO NOT force it.
New prob now. Went to bleed it and stripped the Allen plug on the slave. Anyone know what else will thread into that hole? I can prob get it back out but don't know what I can put in its place. I was thinking of taking the plug out and drilling the Allen home a tad bigger and sticking a 1/4" bold in the home and welding it so if I ever had to bleed it again all I need is a 7/16" wrench. Not sure if it will work though.
New prob now. Went to bleed it and stripped the Allen plug on the slave. Anyone know what else will thread into that hole? I can prob get it back out but don't know what I can put in its place. I was thinking of taking the plug out and drilling the Allen home a tad bigger and sticking a 1/4" bold in the home and welding it so if I ever had to bleed it again all I need is a 7/16" wrench. Not sure if it will work though.
