Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

connector

Thread Tools

Search this Thread

Old 09-18-2014 | 10:25 PM
  #1
1987XJ's Avatar
Thread Starter
Senior Member

Joined: Nov 2008
Posts: 510
Likes: 0
From: Oak Harbor, Wa
Year: 1987
Model: Cherokee
Engine: 4.0 Renix
Default connector

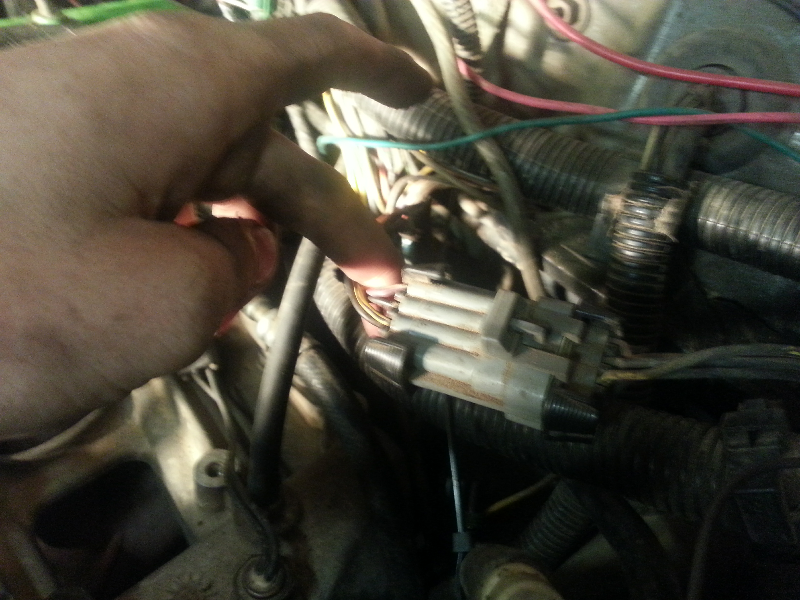

Any ideas what this connector goes?

It is renix wiring.
Old 09-19-2014 | 12:40 AM
  #2
djgrayxj's Avatar
Senior Member

Joined: Jul 2011
Posts: 550
Likes: 25
From: West Covina, Ca.
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Note from DJ
This information bay or may not be true. I have not verified all of it but it may be what you asking about.
It looks like the C116 connector which is a gray 8 pin connector.
It is used to connect one harness to the main harness.
A, D&H pine are not used
B pin is a black wire connecting the oil dipstick ground to the ground for the 02 sensor
C pin is gray wire which oxygen sensor input to the ECU D9
E pin is violet/white wire for the knock sensor input to the ECU
G pin is yellow/black wire for the knock sensor ground
Old 09-19-2014 | 01:35 AM
  #3
1987XJ's Avatar
Thread Starter
Senior Member

Joined: Nov 2008
Posts: 510
Likes: 0
From: Oak Harbor, Wa
Year: 1987
Model: Cherokee
Engine: 4.0 Renix
Default

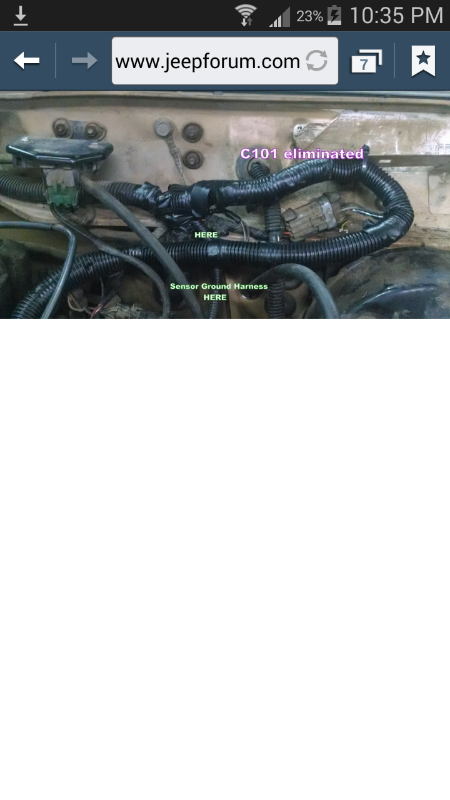

Im talking about the grey connector like the one in this pic.




]
