Model: Cherokee
electrical problem

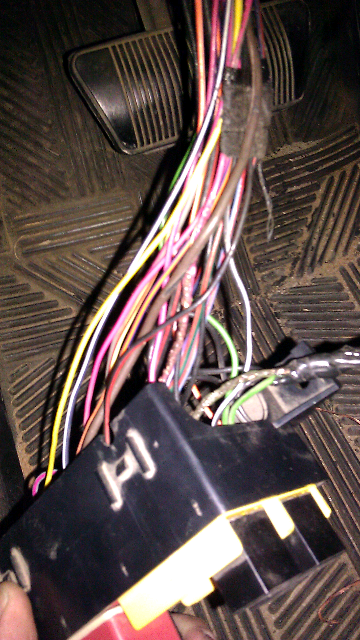

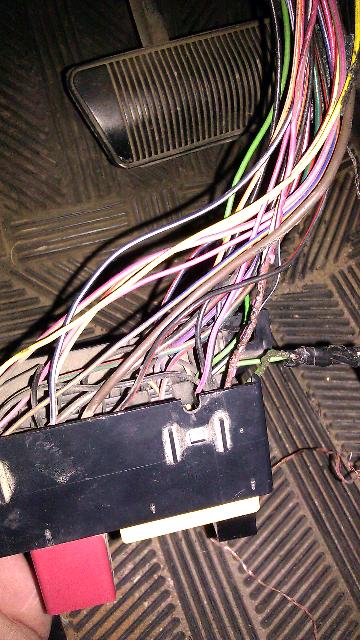

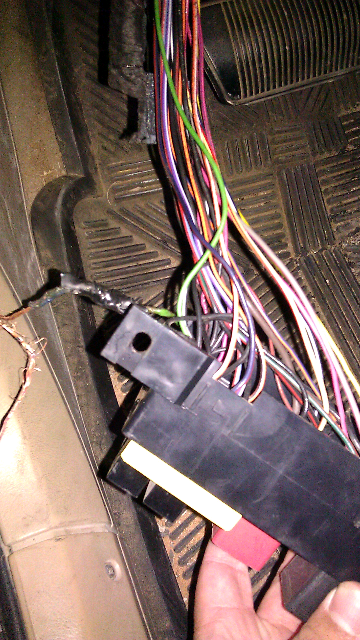

Hey guys, another electrical problem. I have a 93 cherokee with the 4.0 and automatic. I was driving down the highway and when I stopped at the rest area, the bottom of the dash started to smoke. I now have two burnt wires on the tiny relay box and now my column has power only when on acc. and engine isn't running. Any ideas?
#2
Former Sponsor
Join Date: Jan 2011
Location: Jefferson City, MO
Posts: 339
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Engine: 4.0
Trace those 2 wires and try an find a short, when an electrical wire burns it's usually because a positive wire is touching a ground source or a ground source is touching a positive wire somewhere.
#4
Newbie
Thread Starter
Join Date: Mar 2012
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

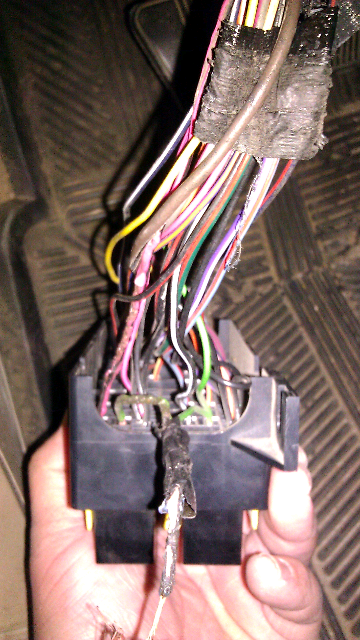

I've ran the wires and it seems the short originated from one of those wires. It was only the 40 A fuse under the good that was blown and it is replaced to no effect. It would help if anyone knew exactly what those small relays were for and I could try to pull something out of the air.
#5
CF Veteran
Join Date: Feb 2012
Location: Hamburg AR
Posts: 1,249
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
I've ran the wires and it seems the short originated from one of those wires. It was only the 40 A fuse under the good that was blown and it is replaced to no effect. It would help if anyone knew exactly what those small relays were for and I could try to pull something out of the air.
Trending Topics
#8
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 20 Likes
on
17 Posts
Model: Cherokee

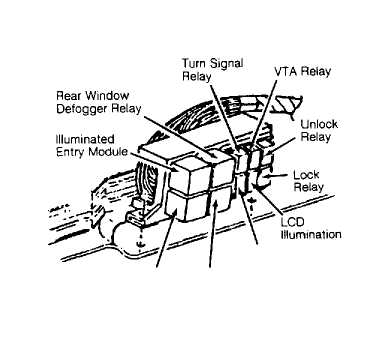

93- second pic and more info found here http://jeep-manual.ru/index.php?page=281
Last edited by Radi; 04-12-2013 at 01:37 AM. Reason: add additional drawing
#9
Newbie
Thread Starter
Join Date: Mar 2012
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Thanks alot radi, do you guys know if this system is really removed. I don't have the keyless entry switch and this thing seems to spit out one problem after another.
