Evaporator Question...Wire??

Thread Tools

Search this Thread

Old 07-02-2011 | 07:49 PM
  #1
Screwd up 6's Avatar
Thread Starter
Seasoned Member

Joined: Nov 2010
Posts: 469
Likes: 0
From: Spring, TX
Year: 1994
Model: Cherokee
Engine: 4.0
Default Evaporator Question...Wire??

I just got done removing my dash and swaping out my evaporator, but the only thing that baffles me is the the replacement one I used was slightly different from the one that was stock. On the rear of the stock one there was a small copper pin with a white wire running in it. The replacement one didnt have this. What is this wire used for? Is it some kind of temp sensor or something?
Old 07-02-2011 | 08:37 PM
  #2
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 31
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

might be the thermostat
Old 07-03-2011 | 11:49 AM
  #3
Screwd up 6's Avatar
Thread Starter
Seasoned Member

Joined: Nov 2010
Posts: 469
Likes: 0
From: Spring, TX
Year: 1994
Model: Cherokee
Engine: 4.0
Default

the new one didnt have one...will it be ok to just hook it up without it?
Old 07-03-2011 | 12:53 PM
  #4
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 31
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

see it in the picture here is this what your talking about
Attached Thumbnails Evaporator Question...Wire??-1192915214.jpg
Old 07-03-2011 | 04:40 PM
  #5
freegdr's Avatar
CF Veteran

Joined: Mar 2010
Posts: 47,923
Likes: 31
From: Broward County Fl.
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

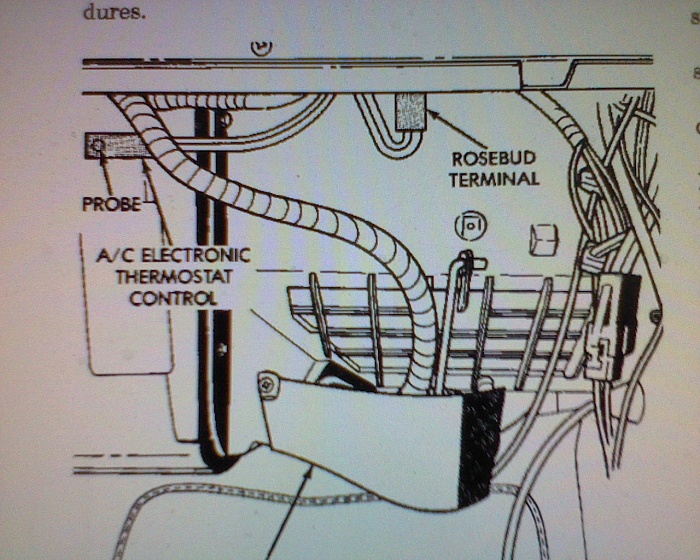

was it mounted like this
Attached Thumbnails Evaporator Question...Wire??-0616111841a_286177.jpg
Old 07-04-2011 | 09:57 PM
  #6
Screwd up 6's Avatar
Thread Starter
Seasoned Member

Joined: Nov 2010
Posts: 469
Likes: 0
From: Spring, TX
Year: 1994
Model: Cherokee
Engine: 4.0
Default

no it was inside the box holding the evaporator
Old 07-16-2012 | 11:12 AM
  #7
capt1e3's Avatar
Newbie

Joined: Jul 2012
Posts: 15
Likes: 0
Model: Cherokee
Default Same Problem

I have this same deal. the new replacement evaporators do not have the tube, and or switch. Did they just do away with it? What is required to bypass thermostat? Anyone?
Old 07-17-2012 | 11:27 AM
  #8
Screwd up 6's Avatar
Thread Starter
Seasoned Member

Joined: Nov 2010
Posts: 469
Likes: 0
From: Spring, TX
Year: 1994
Model: Cherokee
Engine: 4.0
Default

If you hold the evaporator up to the light, you will see the path of the internal work. Stick the thermostat wire/probe between some fins without puncturing anything. It should push thru very gently with minimal pressure. I did this and it worked fine with no problems when I had my jeep. Hope this makes sense and helps you out.
