Front tires/camber
#18
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 20 Likes
on
17 Posts
Model: Cherokee
Jack up the front so one front tire is off the ground. Grab the tire at 12 and 6 o'clock and push the top while pulling the bottom. Then reverse and go back and forth a couple times. Any movement? 12/6 o'clock is often bad bearings. Watch the backside to verify.
Basically only a few things can cause that: Bent axle or flange, bad hub/bearing, bad (or incorrect, or incorrectly adjusted adjustables) ball joints. Or your caster is so far off the toe adjustments are changing the camber- but that would be IMHO horrendous to drive and the alignment shop should've caught that.
Basically only a few things can cause that: Bent axle or flange, bad hub/bearing, bad (or incorrect, or incorrectly adjusted adjustables) ball joints. Or your caster is so far off the toe adjustments are changing the camber- but that would be IMHO horrendous to drive and the alignment shop should've caught that.
#20
Junior Member
Thread Starter
Join Date: May 2013
Location: SoCal
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l
Update: '99 Jeep XJ 4.0L I6

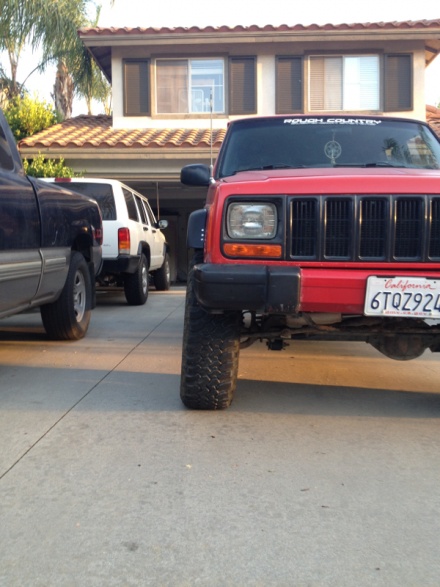

My camber issues are not any better.
Parts replaced- both upper and lower ball joints, hub bearing assembly.
My axle tubing doesn't look bent, the C-flange looks alright.
My camber issues are not any better.
Parts replaced- both upper and lower ball joints, hub bearing assembly.
My axle tubing doesn't look bent, the C-flange looks alright.
#22
CF Veteran
Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
I have a bit of a negative camber on both sides. Ball joints are good. It's bent axle C's I think.
Setting my toe correctly helped tire wear.
Nothing else besides adjustable ball joints or getting a new axle I can do about it.
Good thing HP Dana30's are 60$ around here.
Hope you figure this out.
Goodluck
Setting my toe correctly helped tire wear.
Nothing else besides adjustable ball joints or getting a new axle I can do about it.
Good thing HP Dana30's are 60$ around here.
Hope you figure this out.
Goodluck
#23
Junior Member
Thread Starter
Join Date: May 2013
Location: SoCal
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l
Upon more examining, my upper C's aren't bent. I measured them in comparison to another XJ and they were identical. Thanks for the info guys!
#24
Junior Member
Thread Starter
Join Date: May 2013
Location: SoCal
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l
Well doing more research, my Dana 30 was one of many that had casting issues. I'm doing the ford 8.8 swap in the rear and to match the 4:10 gears up front I'll pull a Dana 30 from a 4 banger manual that has the same ratio.
#26
Junior Member
Join Date: Apr 2019
Posts: 31
Likes: 0
Received 2 Likes
on
2 Posts
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0L
Did you ever figure this out? My jeep is the same, when I drive forward the camber looks ok but when I reverse the wheels look like yours. I am thinking I may need new ball joints as when it’s reversing I can see a slight gap form. They aren’t that old though.
#28
Junior Member
Thread Starter
Join Date: May 2013
Location: SoCal
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0l
Totalled:
