Gauge cluster
#20
Junior Member
Joined: May 2009
Posts: 59
Likes: 1
From: NW Ohio
Year: 1999
Model: Cherokee
Engine: 4.0
Are you the dude on toledo craigslist parting his out? Almost called you yesterday but it was like 9pm. I thought I had fuel pump problems but turns out I dont have any freaking clue what problems I have. Oh well, maybe you'll hear from me, if thats you lol. My thread is below.
https://www.cherokeeforum.com/f2/so-...8/#post2313693
https://www.cherokeeforum.com/f2/so-...8/#post2313693
#22
Thread Starter
Seasoned Member
Joined: Jun 2011
Posts: 535
Likes: 0
From: Michigan
Year: 2000
Model: Cherokee
Engine: 4.0 HO
Got cluster back today gauges are all wack and when I test it they cycle little bit at a time, like tach goes 2 k, 4k 5k then goes down more then back.. So idk???
#23
CF Veteran
Joined: Aug 2010
Posts: 8,357
Likes: 90
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
Instrument Cluster Actuator Test
(1) Begin the test with the ignition switch in the Off position.
(2) Depress the trip odometer reset button.
(3) While holding the trip odometer reset button depressed, turn the ignition switch to the On position, but do not start the engine.
(4) Release the trip odometer reset button.
(5) The gauges should cycle through their ranges, stopping at intermediate readings, going up and going down, at two second intervals. The indicator lamps should cycle on and off.
(6) The instrument cluster will automatically exit the self-diagnostic mode and return to normal operation at the completion of the test, if the ignition switch is turned to the Off position during the test, or if a vehicle speed message indicating that the vehicle is moving is received from the PCM on the CCD data bus during the test.

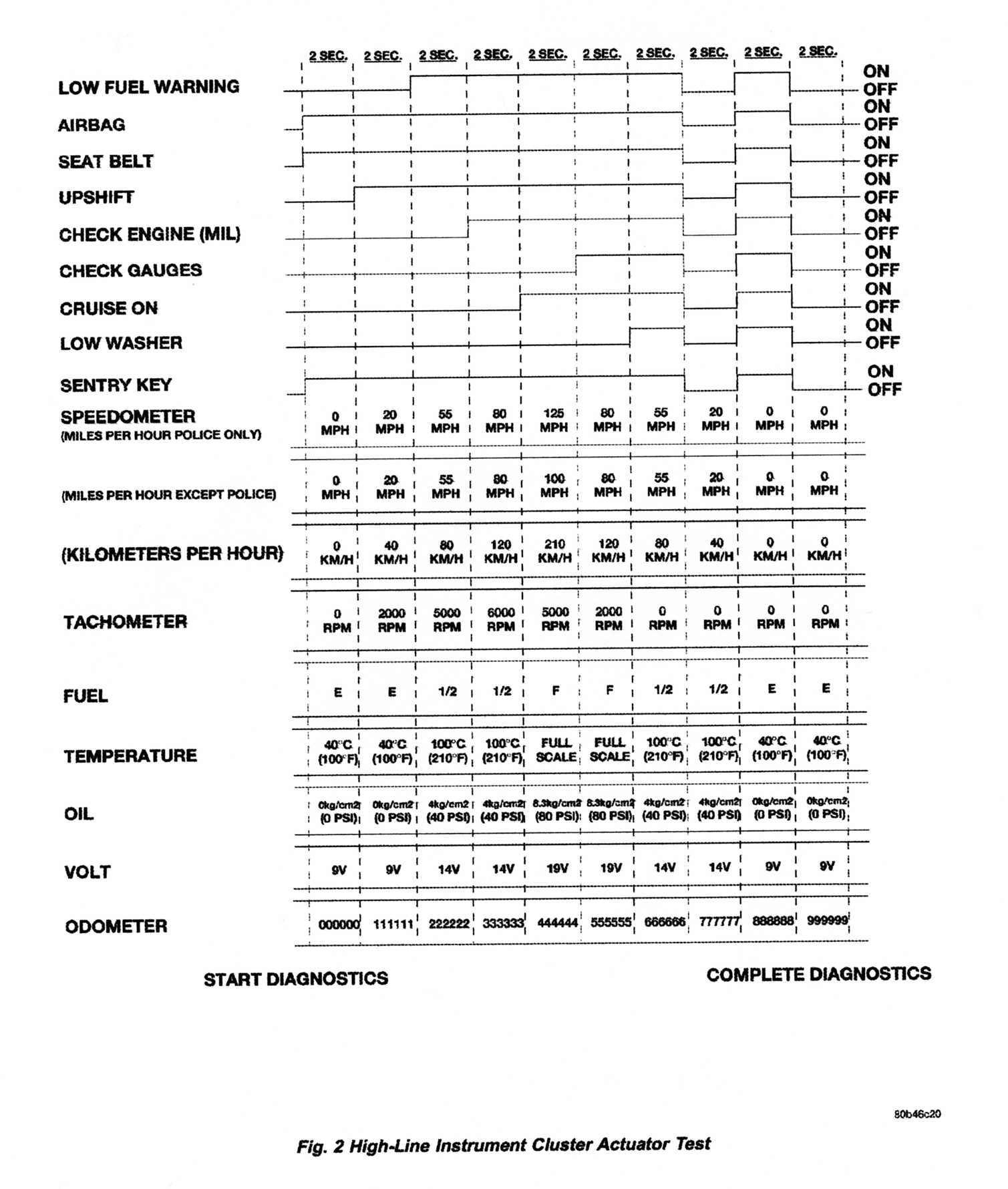

Here's te chart that goes with the actuator test:
Last edited by CCKen; 02-22-2013 at 07:13 AM.
#24
Senior Member
Joined: Jul 2012
Posts: 860
Likes: 0
From: middleburg fl
Year: 1998
Model: Cherokee
Engine: 4.0
one has to ask them selves why he is replacing the cluster in the first place especially since its newer than yours my guess is his old one did the same thing and he dosent know about cherokeeforum so he just figured new gauges ought to do it
#26
If you are doing the actuator test the instruments are supposed to cycle. Here's the procedure:
Instrument Cluster Actuator Test
(1) Begin the test with the ignition switch in the Off position.
(2) Depress the trip odometer reset button.
(3) While holding the trip odometer reset button depressed, turn the ignition switch to the On position, but do not start the engine.
(4) Release the trip odometer reset button.
(5) The gauges should cycle through their ranges, stopping at intermediate readings, going up and going down, at two second intervals. The indicator lamps should cycle on and off.
(6) The instrument cluster will automatically exit the self-diagnostic mode and return to normal operation at the completion of the test, if the ignition switch is turned to the Off position during the test, or if a vehicle speed message indicating that the vehicle is moving is received from the PCM on the CCD data bus during the test.
Here's te chart that goes with the actuator test:
#27
CF Veteran
Joined: Aug 2010
Posts: 8,357
Likes: 90
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
If the speedometer doesn't work there's a chance the vehicle speed sensor (VSS) doesn't work, or there is a wiring problem between the VSS and the PCM. If the PCM doesn't receive vehicle speed data it won't display speed through the CCD Data Bus.
#28
Member
Joined: Feb 2012
Posts: 220
Likes: 0
From: Albany, Oregon
Year: 1992
Model: Cherokee
Engine: 6 cyl 4.0L high output
It being a 90 does that matter
#29
CF Veteran
Joined: Aug 2010
Posts: 8,357
Likes: 90
From: Canton, MI
Year: 1999
Model: Cherokee
Engine: 4.0
#30
Member
Joined: Feb 2012
Posts: 220
Likes: 0
From: Albany, Oregon
Year: 1992
Model: Cherokee
Engine: 6 cyl 4.0L high output
