HCV Orientation and Flow
#46
It sorta does...........
When the heater is turned off, the butterfly valve inside closes off the heater core, and simply re-directs the flow of coolant back to the water pump.
The arrows in the picture are correct.
#47
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
The factory FSM "sorta does" show the 2 flow different flow paths thru the HCV?......my FSM doesn't. Not the heater core, there's flow or no flow thru the heater core.
Again, the flow diagram for '97 up XJ's is wrong in '97 up FSM's. Top nipple is the inlet and bottom nipple is the outlet.
Again, the flow diagram for '97 up XJ's is wrong in '97 up FSM's. Top nipple is the inlet and bottom nipple is the outlet.
#49
#50
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
My FSM shows the diagram without the HCV.....no HCV on '97 up. The diagram is just the opposite of how the hoses r actually routed from the factory.
The diagram in '97 up FSM's is WRONG.
The '97 up diagram is the same diagram u post, minus the HCV. The Factory hose connections at the firewall r opposite of the diagram on '97 up XJ's.
The diagram in '97 up FSM's is WRONG.
The '97 up diagram is the same diagram u post, minus the HCV. The Factory hose connections at the firewall r opposite of the diagram on '97 up XJ's.
Last edited by djb383; 01-09-2015 at 07:33 PM.
#55
#56
Yes, I have pictures of a factory-original, untouched '99
The heater hoses still have the factory clamps on them, and the hoses still have the Mopar markings on them.
djb383 is correct...............(the FSM diagrams are backwards)
I admit, I was skeptical that they would change the heater core flow direction, but you were right!
Here is the factory original '99 hose routing.
So, I am going to assume it is safe to say that they changed the flow direction within the heater core for '97-up. Not sure why the design change, given that the heater cores are identical between the years?
So, for '91-'96 HO the flow goes in the smaller bottom tube, and out the larger top tube.
'97-'01 the flow goes in the larger top tube, and out the smaller bottom tube.
I have only worked on 2 Renix XJs, and never paid attention to heater core flow, so couldn't comment on those.
#58
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,562 Likes
on
1,266 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

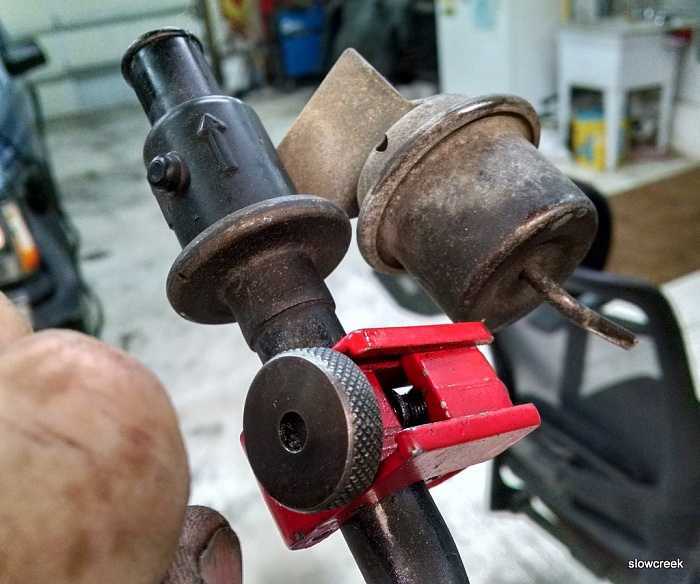

Renix HCV fix.
#59
Junior Member
thats what i did yesterday but i don't have a radiator witha cap, so you can go to moroso.com and buy a radiator hose filler which is basically a radiator cap that fits into the upper radiator hose so you can fill it. i had to get a different coolant res also.
