Help Diagnosing Noise
#1
CF Veteran
Thread Starter
Help Diagnosing Noise
On my way home from work last night, while sitting at a red light, my engine suddenly started making a whine similar to a supercharger. The whine was accompanied by a noticeable alternator whine from my speakers. My radio was on (iPod input) but idle, e.g. my iPod was not playing. The alternator whine changes pitch with RPM but is not affected by volume (the alternator whine is the same volume whether the radio volume is at 0 or full blast) . I searched around the engine bay, the supercharger whine is very noticeable but the source isn't.
I can tell no difference in performance and everything that worked before continues to work. The serpentine belt is in good shape and tensioned properly, the alternator appears to be working correctly (volts range from 12.5-13.5 on the gauge), both the clutch fan and e-fan spin freely and are unimpeded. The only work done (recently) was replacing the ignition lock cylinder on the steering column. That was done last weekend, four days before the weird noises started.
I can tell no difference in performance and everything that worked before continues to work. The serpentine belt is in good shape and tensioned properly, the alternator appears to be working correctly (volts range from 12.5-13.5 on the gauge), both the clutch fan and e-fan spin freely and are unimpeded. The only work done (recently) was replacing the ignition lock cylinder on the steering column. That was done last weekend, four days before the weird noises started.
#2
Senior Member
Join Date: Jun 2013
Location: Wilton, CA
Posts: 579
Likes: 0
Received 0 Likes
on
0 Posts
Year: '93
Model: Cherokee
Engine: 2.5L I4 (Mercedes Turbo Diesel planned)
There's a ground strap above the back of the valve cover going to the firewall that, if I've read correctly, is to eliminate radio noise from the engine. Might be worth checking to see if it's in good condition
#3
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Remove the belt and start rotating pulleys.
You've done all the ground refreshing, right?
You've done all the ground refreshing, right?
#4
CF Veteran
Thread Starter
#5
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 90 Likes
on
74 Posts
Year: 1999
Model: Cherokee
Engine: 4.0

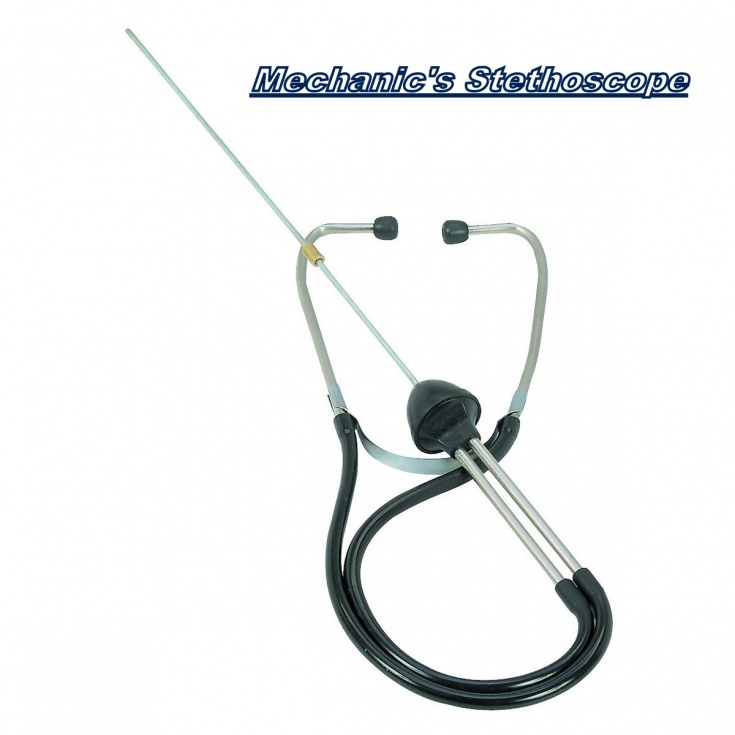

Before removing the belt, use that mechnic's stethoscope to touch the alternator body while the engine is running and see if it's the bad guy.
Also, touch the base of the distributor to see if it's running dry and making that noise. That bonding strap on the firewall is there to help in radio noise suppression. Sources of noise are the distributor, spark plug wires, alternator, and even from the distributor rotor tip.
Last edited by CCKen; 02-14-2014 at 11:36 AM.
#6
CF Veteran
Thread Starter
I would suspect the alternator but, with the serpentine belt removed you can run the engine (for a max of two minutes) to see if the noise goes away. If it's still there check the crankshaft harmonic balancer condition and for rubbing on the timing chain cover. This is a very long shot but worth eliminating in your troubleshooting steps.
Before removing the belt, use that mechnic's stethoscope to touch the alternator body while the engine is running and see if it's the bad guy.
Also, touch the base of the distributor to see if it's running dry and making that noise. That bonding strap on the firewall is there to help in radio noise suppression. Sources of noise are the distributor, spark plug wires, alternator, and even from the distributor rotor tip.
Before removing the belt, use that mechnic's stethoscope to touch the alternator body while the engine is running and see if it's the bad guy.
Also, touch the base of the distributor to see if it's running dry and making that noise. That bonding strap on the firewall is there to help in radio noise suppression. Sources of noise are the distributor, spark plug wires, alternator, and even from the distributor rotor tip.
I noticed some bare wires in the harness that runs under the exhaust manifold (from injector harness). I pulled that part of the harness to re-wrap/re-loom and in the process, broke the tip off the sensor that bolts into the middle of the block just above the oil pan (manifold side). Any idea what that is? It's not identified in my Haynes. I thought I'd ask here before starting a new thread.
#7
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 90 Likes
on
74 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I'm not a Renuts expert but I think that's a Knock Sensor.
Thanks Ken, that's really valuable information. I pulled the serp belt and all pulleys are smooth as butter. I will for sure get a stethoscope on the distributor.
I noticed some bare wires in the harness that runs under the exhaust manifold (from injector harness). I pulled that part of the harness to re-wrap/re-loom and in the process, broke the tip off the sensor that bolts into the middle of the block just above the oil pan (manifold side). Any idea what that is? It's not identified in my Haynes. I thought I'd ask here before starting a new thread.
I noticed some bare wires in the harness that runs under the exhaust manifold (from injector harness). I pulled that part of the harness to re-wrap/re-loom and in the process, broke the tip off the sensor that bolts into the middle of the block just above the oil pan (manifold side). Any idea what that is? It's not identified in my Haynes. I thought I'd ask here before starting a new thread.
Trending Topics
#8
CF Veteran
Thread Starter
Coolio. Word on the Interwebs suggest it's not necessary or, at least, not critical. I'm thinking about epoxying the whole thing back together and sticking it back in. Just the shell is broken/cracked. Cruiser? Thoughts?
#9
CF Veteran
Thread Starter
Hey! Mechanic's stethoscopes are fun! I think I've narrowed the whine down to my alternator. It feels fine if I spin it by hand but my stethoscope definitely says the alternator is whining.
On the plus side, my stethoscope says everything else is purring like a happy kitten. Thanks again for your help Ken and Cruiser.
On the plus side, my stethoscope says everything else is purring like a happy kitten. Thanks again for your help Ken and Cruiser.
