Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Newbie trying to remove factory front brush guard

Thread Tools

Search this Thread

Old 01-30-2009 | 11:06 PM
  #1
epic4444's Avatar
Thread Starter
Newbie

Joined: Jan 2009
Posts: 8
Likes: 0
Model: Cherokee
Default Newbie trying to remove factory front brush guard

I just got a 99 jeep cherokee and it came with a factory brush guard with foglights and i want to remove it but i was wondering what i should watch out for and need to do to remove this...thanks for any and all input
Old 01-30-2009 | 11:28 PM
  #2
cherokee4meplz's Avatar
Senior Member

Joined: Dec 2008
Posts: 606
Likes: 0
From: northwest Indiana USA
Year: 1990 laredo
Model: Cherokee
Default

most of the ones I have seen just have 4 bolts holding it to the bumper.
Old 01-31-2009 | 04:04 AM
  #3
cheapJeeper's Avatar
Seasoned Member

Joined: Sep 2008
Posts: 329
Likes: 0
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Some brush guards are also mounted to the tow hook brackets....you might want to check, if you have factory tow hooks.
HTH!
Old 01-31-2009 | 05:56 AM
  #4
QuakerTown's Avatar
Junior Member

Joined: Jan 2009
Posts: 62
Likes: 0
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

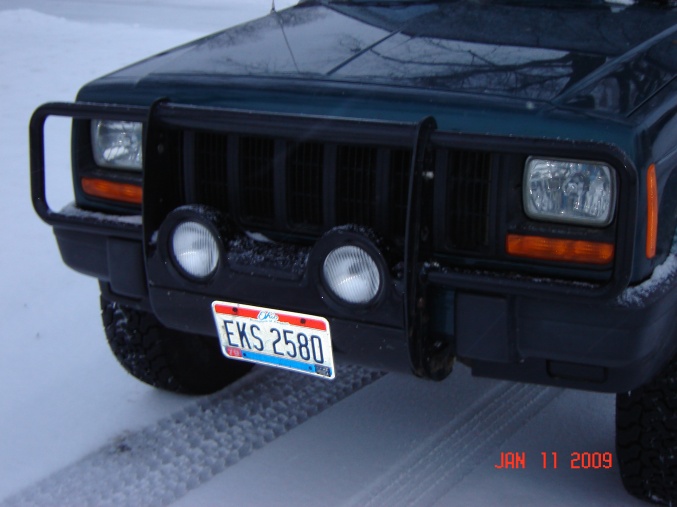

Does it look anything like this??

If so you have to remove the entire bumper...
Attached Images
Old 01-31-2009 | 11:58 AM
  #5
epic4444's Avatar
Thread Starter
Newbie

Joined: Jan 2009
Posts: 8
Likes: 0
Model: Cherokee
Default

ya its the one quakertown posted...so do i just have to removed my bumper or get a new one? and how hard is it to remove the bumber? thanks
Old 01-31-2009 | 04:16 PM
  #6
Howler_GT's Avatar
CF Veteran

Joined: Jul 2008
Posts: 1,217
Likes: 7
From: Schnecksville, PA
Year: 94 XJ
Model: Cherokee
Engine: 4.0L
Default

Bumpers are fairly easy to remove. There are basically TWO ways to go about this.

#1: Crawl under the front with a wrench and ratchet/socket and carefully unbolt the 6 bumper bolts (3 per side) after soaking them with your favorite penetrating oil.

#2: Pull a bone-head move on the road, lose it and forcibly remove the bumper from the front-end of your Cherokee.


Personally, I would recommend shying away from #2 for obvious reasons.


With the addition of the brush guard, I am unsure if there is more hardware attaching the whole assembly. But I am sure, if you looked under the front-end, it would be quite obvious if there was.

Good luck
Old 01-31-2009 | 05:10 PM
  #7
QuakerTown's Avatar
Junior Member

Joined: Jan 2009
Posts: 62
Likes: 0
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Geee, Howler...I wish mine was that easy!

There were four small bolts holding the corner moldings on, and then four in the actual metal bumper.

You also have to unbolt the OEM bumper mounts to get your brush gaurd bolts out...

I just sold mine, so I removed it on Thursday...

It's not super complicated, but I would second Howler's advice and douse the bolts. I snapped three or four of the small bolts holding the plastic molding on even after a good soak.

Also, the factory wiring harness just has to be fished back through, and disconnected in the small fuse box above your passenger side fender well.

Good luck!
Old 02-03-2009 | 11:42 PM
  #8
epic4444's Avatar
Thread Starter
Newbie

Joined: Jan 2009
Posts: 8
Likes: 0
Model: Cherokee
Default

thanks for all the input and advice...me and my pops took that sucker off in a lil under and hour...looks great without!!! got the front valance on the way!!!
