NGK plugs part number
96 cherokee country what NGK plugs part number is it for my XJ?? I ordered them just now at napa hoping I ordered the right ones . And don't say get champions cause there in my jeep now and NGKs are going in next.
06-22-2014, 10:09 AM
#4
Banned
Thread Starter
Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
06-22-2014, 11:10 AM
#5
Banned
Thread Starter
Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
06-22-2014, 12:00 PM
#6
CF Veteran
Join Date: Aug 2010
Location: Nashville, TN
Posts: 1,150
Likes: 0
Received 1 Like
on
1 Post
Year: 1997, 1993
Model: Cherokee
Engine: 4.0L
Probably will have to pull the distributor cap up and take a look at the part number on the rotor that's in the jeep. I'm pretty sure it switched part way through 1996.
06-23-2014, 07:00 AM
#7
Member
Join Date: Apr 2012
Location: Minersville Pennsylvania
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 H.O.
7252's in my 1991, runs great. I removed very good condition champion 412's and noticed no difference with the ngk's, I only replaced them because I have no faith in champion plugs, even my lawn mower and 2 strokes run ngks.
Trending Topics
06-23-2014, 08:04 AM
#8
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 90 Likes
on
74 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I wouldn't be afraid to use NGK ZFR5N plugs in place of the Champlion RC12LYC plugs in a '96 4.0.
Those NGK FR5-1 (7252) plugs are an odd duck, with their extended shell. NGK tech could not explain the advantage of the extended shell, other than they said it is a Chrysler design. I say if it were a Chrysler design, why does Chrysler specify Champion RC12LYC (412) plugs (without the extended shell) for their '93-'98 4.0's?
In '99, Chrysler introduced the Champion RC12ECC plugs for the 4.0, at the release of the coil pack (waste spark) ignition system which was installed on Grand Cherokees, but the RC12ECC was also used on the XJ distributor 4.0's for '99.
The NGK equivalent for the Champion RC12ECC is their ZFR5N plug.
Edit: The difference between the RC12LYC "Copper" plugs and the RC12ECC "Double Copper" plugs is that the "Copper" plugs have a Copper center electrode and the "Double Copper" plugs have a Copper center electrode and a Copper ground electrode. This is the only difference between the two plugs.
Those NGK FR5-1 (7252) plugs are an odd duck, with their extended shell. NGK tech could not explain the advantage of the extended shell, other than they said it is a Chrysler design. I say if it were a Chrysler design, why does Chrysler specify Champion RC12LYC (412) plugs (without the extended shell) for their '93-'98 4.0's?
In '99, Chrysler introduced the Champion RC12ECC plugs for the 4.0, at the release of the coil pack (waste spark) ignition system which was installed on Grand Cherokees, but the RC12ECC was also used on the XJ distributor 4.0's for '99.
The NGK equivalent for the Champion RC12ECC is their ZFR5N plug.
Edit: The difference between the RC12LYC "Copper" plugs and the RC12ECC "Double Copper" plugs is that the "Copper" plugs have a Copper center electrode and the "Double Copper" plugs have a Copper center electrode and a Copper ground electrode. This is the only difference between the two plugs.
Last edited by CCKen; 06-23-2014 at 08:10 AM.
06-24-2014, 04:38 AM
#9
Banned
Thread Starter
Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
I wouldn't be afraid to use NGK ZFR5N plugs in place of the Champlion RC12LYC plugs in a '96 4.0. Those NGK FR5-1 (7252) plugs are an odd duck, with their extended shell. NGK tech could not explain the advantage of the extended shell, other than they said it is a Chrysler design. I say if it were a Chrysler design, why does Chrysler specify Champion RC12LYC (412) plugs (without the extended shell) for their '93-'98 4.0's? In '99, Chrysler introduced the Champion RC12ECC plugs for the 4.0, at the release of the coil pack (waste spark) ignition system which was installed on Grand Cherokees, but the RC12ECC was also used on the XJ distributor 4.0's for '99. The NGK equivalent for the Champion RC12ECC is their ZFR5N plug. Edit: The difference between the RC12LYC "Copper" plugs and the RC12ECC "Double Copper" plugs is that the "Copper" plugs have a Copper center electrode and the "Double Copper" plugs have a Copper center electrode and a Copper ground electrode. This is the only difference between the two plugs.

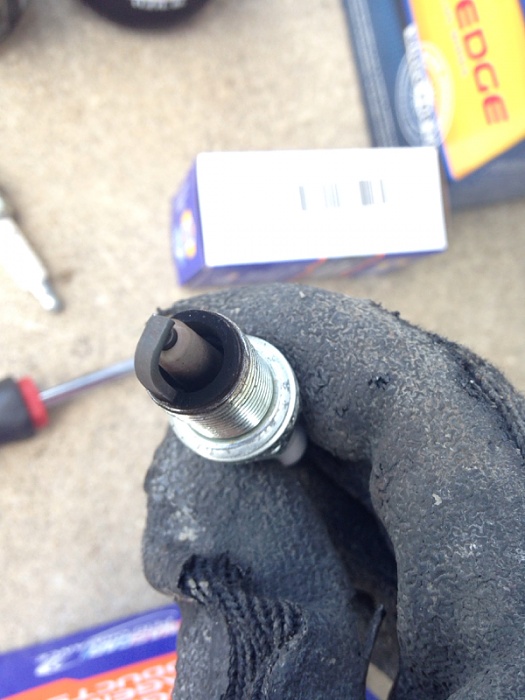

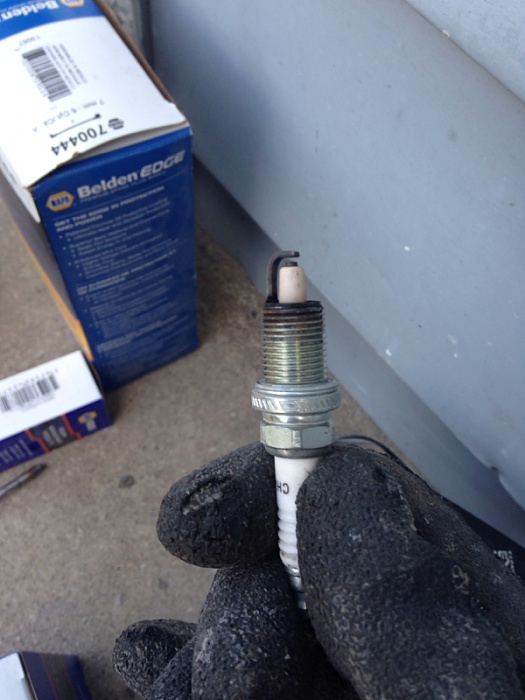

We'll so far my champion plugs look like this when I pull them out. this is cylinder 2 and 4 because those 2 cylinders seem to always miss the most my other also were missing.
