The MAP sensor is up on the firewall, a little left of center looking forward. It has a small tube comes forward that plugs into the base of the throttle body on the engine side.
Cruiser, or anyone. Can the MAP get man. vac. from anywhere? My line disintegrated today.
Cruiser, or anyone. Can the MAP get man. vac. from anywhere? My line disintegrated today.
11-01-2011, 10:16 PM
#32
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Manifold vacuum from anywhere on the manifold id okay. But, the TB needs to be plugged well......
11-01-2011, 11:07 PM
#34
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 18 Likes
on
18 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Sort of a cross between a lawn mower and a toaster. It's on a bracket that sticks out from the firewall. It's up high....And thanks cruiser.
Last edited by DFlintstone; 11-01-2011 at 11:10 PM.
11-01-2011, 11:25 PM
#36
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 18 Likes
on
18 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I still have loads to learn...I've seen that the MAP is important for fuel mixture. Check wikipedia, that's one place that explains it.
11-02-2011, 06:28 AM
#38
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
11-02-2011, 10:10 AM
#39
Junior Member
Thread Starter
Join Date: Oct 2011
Location: Galesburg Illinois
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
11-02-2011, 10:56 AM
#40
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 18 Likes
on
18 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

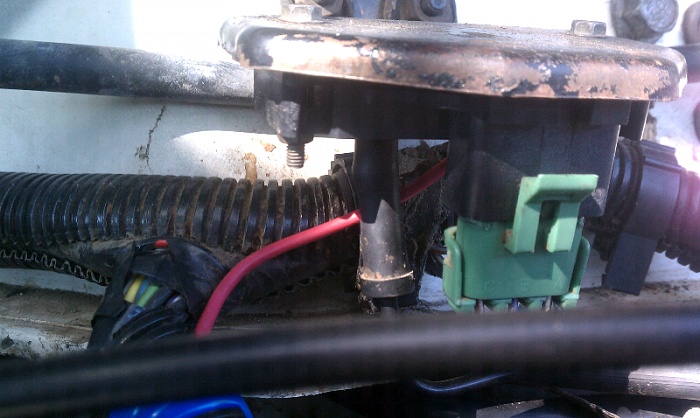

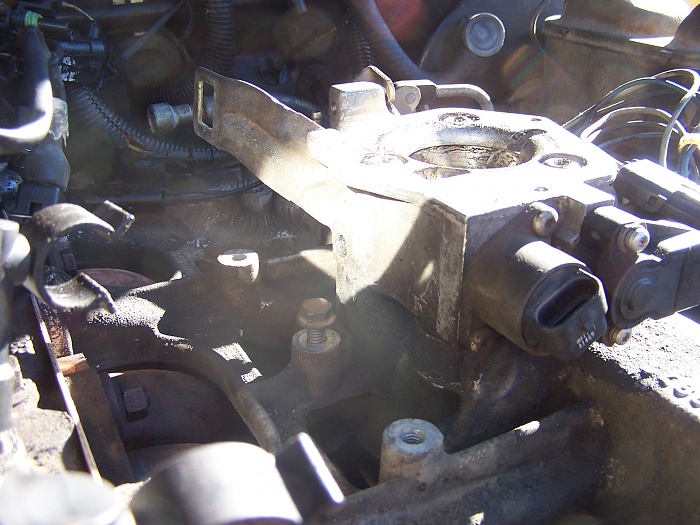

See the green? That's it there. The tube came straight toward the camera, into the engine side of the throttle body.
Last edited by DFlintstone; 11-02-2011 at 11:14 AM.
11-02-2011, 01:20 PM
#42
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 18 Likes
on
18 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

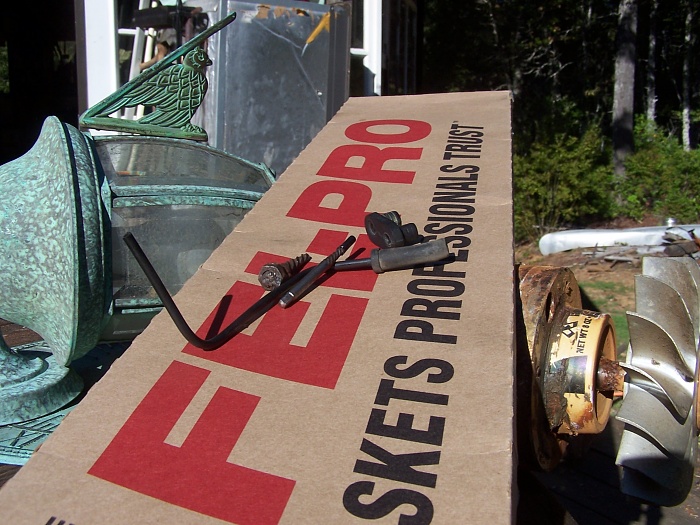

Broken MAP tube Broken.

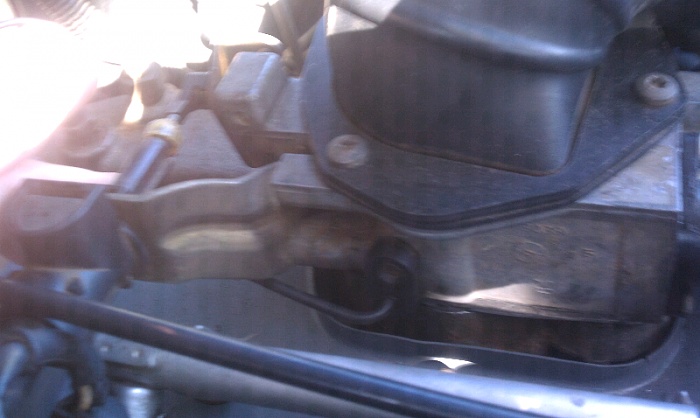

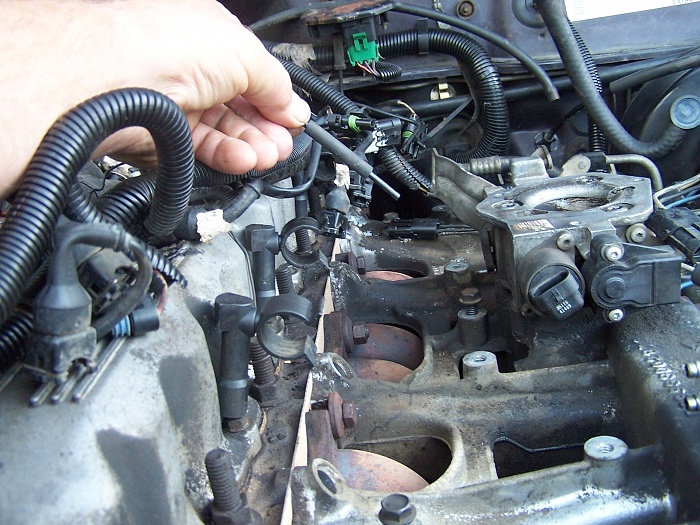

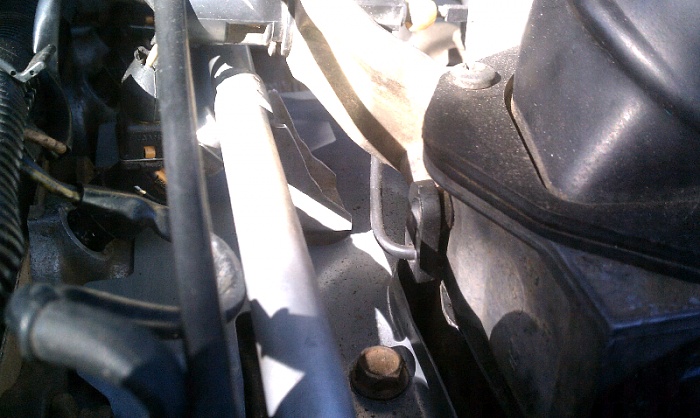

Wish I could! Until then...On the engine side of the throttle body there is a rubber plug with two holes, it goes in the lower. If the little tube snapped off in there it can be extracted.

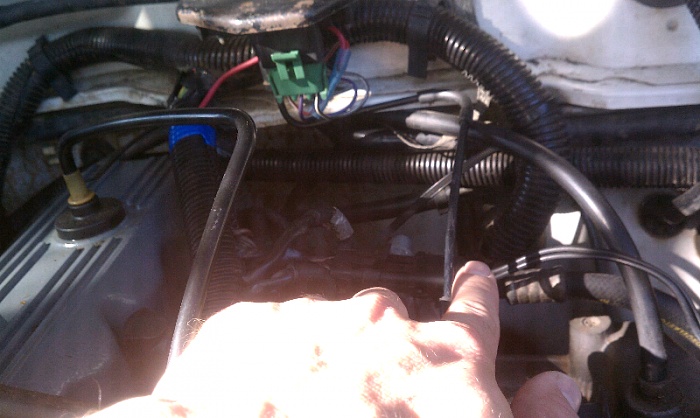

The other end goes up to a nipple on the inner side of the MAP sensor. You can just see it to the left of the green connector in the photo ABOVE /\ /\. Your tube might look like the little pieces you see here.
The other end goes up to a nipple on the inner side of the MAP sensor. You can just see it to the left of the green connector in the photo ABOVE /\ /\. Your tube might look like the little pieces you see here.
Last edited by DFlintstone; 11-02-2011 at 01:31 PM.
11-02-2011, 06:55 PM
#45
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Can't get any better than that. Thanks, guys.
