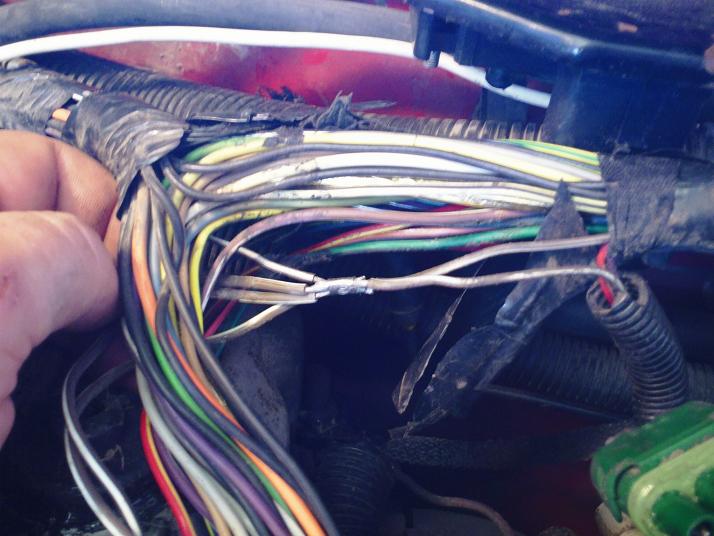

Ok so I found only 1 splice in my system, not 2...
all 5 Brown with white stipe wires were spliced into 1 Brown and white wire.
In your instructions it says I am supposed to find two splices? making a total of 6
I didnt find any other Brown and white wires
The looks of your picture help alot but am i supposed to take the 1 wire that the other 5 splice into and soldier them all together
all 5 Brown with white stipe wires were spliced into 1 Brown and white wire.
In your instructions it says I am supposed to find two splices? making a total of 6
I didnt find any other Brown and white wires
The looks of your picture help alot but am i supposed to take the 1 wire that the other 5 splice into and soldier them all together
Last edited by Kris503; 10-25-2012 at 10:07 PM. Reason: Miss wrote
10-25-2012, 10:10 PM
#34
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,555 Likes
on
1,261 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
The number of splices varies from year to year. My instructions were written primarily for 87 and 88 models with the C101 connector. Bottom line is you want them all soldered together and have less than 1 ohm resistance when wiggling the harness. You wanna make sure the grounds for CTS, TPS, IAT, and MAP are all good.
