Default Random Hose Under Hood

Any ideas what this hose should be hooked up to? I'm guessing it is not super important, because I have been driving with it disconnected and ran through emissions this morning.

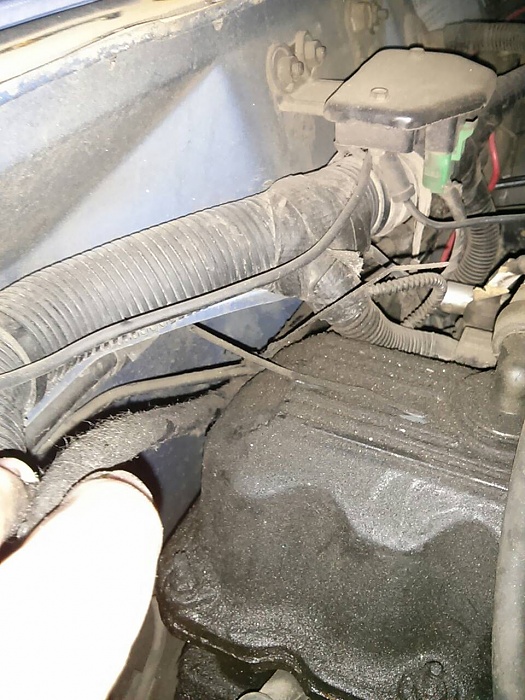

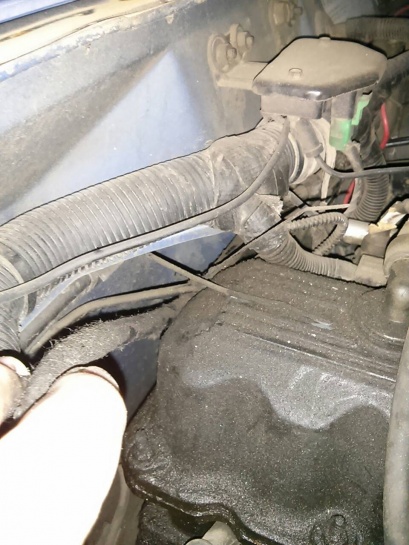

Attached Thumbnails Random Hose Under Hood-uploadfromtaptalk1381272925546.jpg
Old 10-08-2013 | 08:54 PM
  #2
Mclovin80's Avatar
Thread Starter
Newbie

Joined: Sep 2013
Posts: 27
Likes: 0
From: Denver, CO
Model: Cherokee
Default

Its a 1992 4.0l. The hose looks like it runs into the firewall, but I cant really tell.
Old 10-11-2013 | 08:26 AM
  #3
XJRed96's Avatar
Senior Member

Joined: Dec 2012
Posts: 638
Likes: 15
From: Midwest
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Default

if it's running into the firewall chances are it's a vacuum supply for the climate control... do all the modes and settings work when you change them?
Old 10-11-2013 | 08:27 AM
  #4
XJRed96's Avatar
Senior Member

Joined: Dec 2012
Posts: 638
Likes: 15
From: Midwest
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Default

or could have been for a heater control valve that a PO may have removed.
Old 10-11-2013 | 10:03 AM
  #5
Mclovin80's Avatar
Thread Starter
Newbie

Joined: Sep 2013
Posts: 27
Likes: 0
From: Denver, CO
Model: Cherokee
Default

Heat and A/C both work fine. I just can't figure out where the hose should connect to. The end is split which is why is probably fell off.
Old 10-12-2013 | 08:01 AM
  #6
XJRed96's Avatar
Senior Member

Joined: Dec 2012
Posts: 638
Likes: 15
From: Midwest
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Default

is there a a heater control valve in one of your heater hoses that you can see under the hood... they tend to self destruct and is not necessarily a needed part so some people just opt to run with out. are you sure it runs IN to the firewall and not just along the firewall.
Old 10-12-2013 | 08:02 AM
  #7
XJRed96's Avatar
Senior Member

Joined: Dec 2012
Posts: 638
Likes: 15
From: Midwest
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Default

it looks like the hose thats running along the wiring harness just above your finger in the picture looks like it's newer, is it possible that it was run to replace the hose in your hand???? hmmm ,probably not, that would be too easy though... lol.
Old 10-12-2013 | 08:12 AM
  #8
peep's Avatar
CF Veteran

Joined: Oct 2010
Posts: 2,150
Likes: 12
From: Ontario, Canada
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
Default

So one end is disconnected? Where does the other end go.
I'd say that hose was to originate at a connection to upper rear of your intake manifold, a vacuum hose, then it travelled along firewall to passenger side inner fender and forward to the vacuum accumulator (little plastic pig) mounted behind and below passenger side headlite area. Check if someone hasn't replaced it in the past. If both ends are disconnected and your running, pull it and discard.
