rear shackle bolts....
#1
Member
Thread Starter
Join Date: Dec 2008
Location: Maryland - Bel Air
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: I6
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
i had to loosen my pass side shackle bolt in order to line up my new spring pack and for some reason it would only loosen and come out like 3/8th - 1/2inch, and now it wont even turn.. iv'e been using a air wrench/breaker bar and everything else i could imagine, itll slowly turn but all it does is make a cracking noise(while i try to tighten it back in) i have to put all my weight into it....
what im trying to find out is, how far it actually "threads" into the body(nut).... im scared if i keep trying to tighten it, ill snap it. then im ef'd.
i was thinking about leaving it, but keep checking on it on a regular basis to see if its moved, or anything.. even if i put a prybar btween the leafspring and shackle mount it wont budge.. so i believe its still threaded into the nut... i just dont know how far.
any idea's on what to do?
thanks in advance!
what im trying to find out is, how far it actually "threads" into the body(nut).... im scared if i keep trying to tighten it, ill snap it. then im ef'd.
i was thinking about leaving it, but keep checking on it on a regular basis to see if its moved, or anything.. even if i put a prybar btween the leafspring and shackle mount it wont budge.. so i believe its still threaded into the nut... i just dont know how far.
any idea's on what to do?
thanks in advance!
#2
CF Veteran
Join Date: Nov 2008
Location: Eugene, OR
Posts: 1,251
Likes: 0
Received 0 Likes
on
0 Posts
Year: 01
Model: Cherokee
Engine: 4.0L I6
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
spray the hell out of it with some pb blaster or something of equal power and see if that helps. is there a lot of rust present? if so, you might just need something like pb to coax it out.
#4
Member
Thread Starter
Join Date: Dec 2008
Location: Maryland - Bel Air
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: I6
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
yea ive been thinking about it, and im def not gonna leave it.. because i think over time as the leafs level out the shackle will move too, and i take the chance of one side of the jeep being higher....
how hard is it to break a grade 8 bolt?
how hard is it to break a grade 8 bolt?
#5
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
Cut it out!
This is like the third thread I have seen about this lol.
Review this thread!
Post 18
https://www.cherokeeforum.com/showth...?t=3065&page=2
This is like the third thread I have seen about this lol.
Review this thread!
Post 18
https://www.cherokeeforum.com/showth...?t=3065&page=2
#6
Member
Thread Starter
Join Date: Dec 2008
Location: Maryland - Bel Air
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: I6
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
ok.. so say i cut it out?...ill then need to cut into the body to axcess the rest of the bolt in the nut, which i dont want to do... but if i have to, then i have too.
are the shackles suppose to move at all? or do they stay in one position once they are tightend down?
are the shackles suppose to move at all? or do they stay in one position once they are tightend down?
#7
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
It is prolly free from the nut and just siezed to the bushing. If you could take some pics of what you are dealing with (unless it is the same as what i have pictured) it would help out a lil.
It is not uncommon at all to have to cut and grind stuff out when doing a lift for the first time on an XJ.
It is not uncommon at all to have to cut and grind stuff out when doing a lift for the first time on an XJ.
Trending Topics
#8
Member
Thread Starter
Join Date: Dec 2008
Location: Maryland - Bel Air
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: I6
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
damn, ill try to get some pics.. but new springs and everything have already been put on.. so i coukd tighten all the bolts when i took it off the jack stands...
whats the best way to tell if it just siezed in the bushing?
isnt there a small access hole behind the bumper that i could use a flashlight to look in to see if the bolts still in the nut?. and even spray pb blaster if it is.
whats the best way to tell if it just siezed in the bushing?
isnt there a small access hole behind the bumper that i could use a flashlight to look in to see if the bolts still in the nut?. and even spray pb blaster if it is.
#9
Newbie
Join Date: May 2014
Location: Brooksville, FL
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)

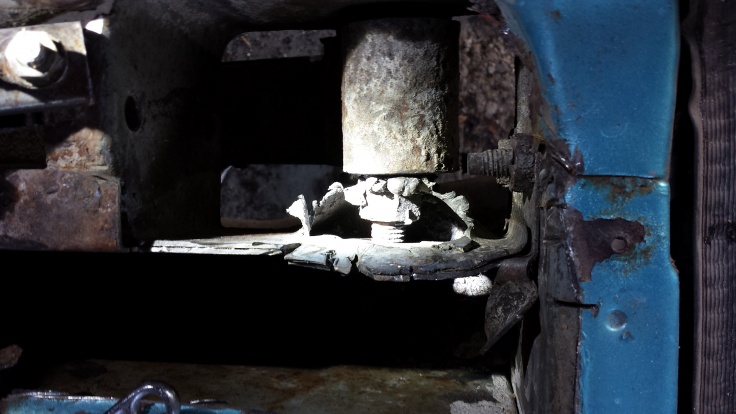

Here is what you are looking at with the bolt and nut for the rear shackle. This is currently what I'm dealing with right now trying to install 2" shackles in my rusty 95 from Maine lol. It is a headache at best, I went through the floor board since it was already rusted out but if you have a sawzall and a metal cutting blade you could just cut the bolt out, however, then you are still left with having to get in there and fix the nut if it broke the tack welds holding it to the frame... the ridiculous part is it has an access hole through the frame rail but you can't fit a deep socket into it because the bolt sticks out too far!!! lol Damn ***** with the pencil that designed this!!! Anyways, good luck on getting it out, be prepared to weld up a new bracket though if it's as rusty as mine you'll find that it wasn't the welds that broke but the housing itself lol
![Cry](https://www.cherokeeforum.com/images/smilies/cry.gif)
#10
CF Veteran
Join Date: Sep 2011
Location: Riviera, Texas
Posts: 4,172
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1998 Sport
Model: Cherokee
Engine: 4.0
![Default](https://www.cherokeeforum.com/images/icons/icon1.gif)
Here is what you are looking at with the bolt and nut for the rear shackle. This is currently what I'm dealing with right now trying to install 2" shackles in my rusty 95 from Maine lol. It is a headache at best, I went through the floor board since it was already rusted out but if you have a sawzall and a metal cutting blade you could just cut the bolt out, however, then you are still left with having to get in there and fix the nut if it broke the tack welds holding it to the frame... the ridiculous part is it has an access hole through the frame rail but you can't fit a deep socket into it because the bolt sticks out too far!!! lol Damn ***** with the pencil that designed this!!! Anyways, good luck on getting it out, be prepared to weld up a new bracket though if it's as rusty as mine you'll find that it wasn't the welds that broke but the housing itself lol ![Cry](https://www.cherokeeforum.com/images/smilies/cry.gif)
![Cry](https://www.cherokeeforum.com/images/smilies/cry.gif)
