Renix EGR/vacuum/smog help
08-28-2014, 05:14 PM
#1
Newbie
Thread Starter
Join Date: Jul 2014
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Renix EGR/vacuum/smog help
1989 Renix
recently bought new vacuum harness'
one line i cant find a spot for because my EGR vlave looks like this
thing is i need to pass CA smog ONE!!! time then i could TOSS this EGR and plug it or something!
so my question is does this line go to the EGR
anyone got an EGR valve they can toss me so i dont have to fork over $80 for a new one
recently bought new vacuum harness'
one line i cant find a spot for because my EGR vlave looks like this
thing is i need to pass CA smog ONE!!! time then i could TOSS this EGR and plug it or something!
so my question is does this line go to the EGR
anyone got an EGR valve they can toss me so i dont have to fork over $80 for a new one
08-28-2014, 06:19 PM
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

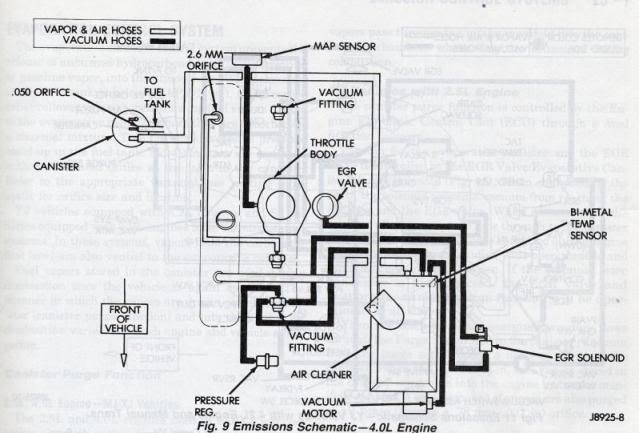

This help?
08-28-2014, 06:37 PM
#3
Newbie
Thread Starter
Join Date: Jul 2014
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
It helped with everything but this egr thing,
this egr is obviously connected to itself and I know thats wrong
just looked up a new EGR(at $80 jeez) it seems that my egr is missing a part to it.
**edit
also let me say, i got the car this way this is my first xj.
only things i have done to it so far, go from closed to open cooling and

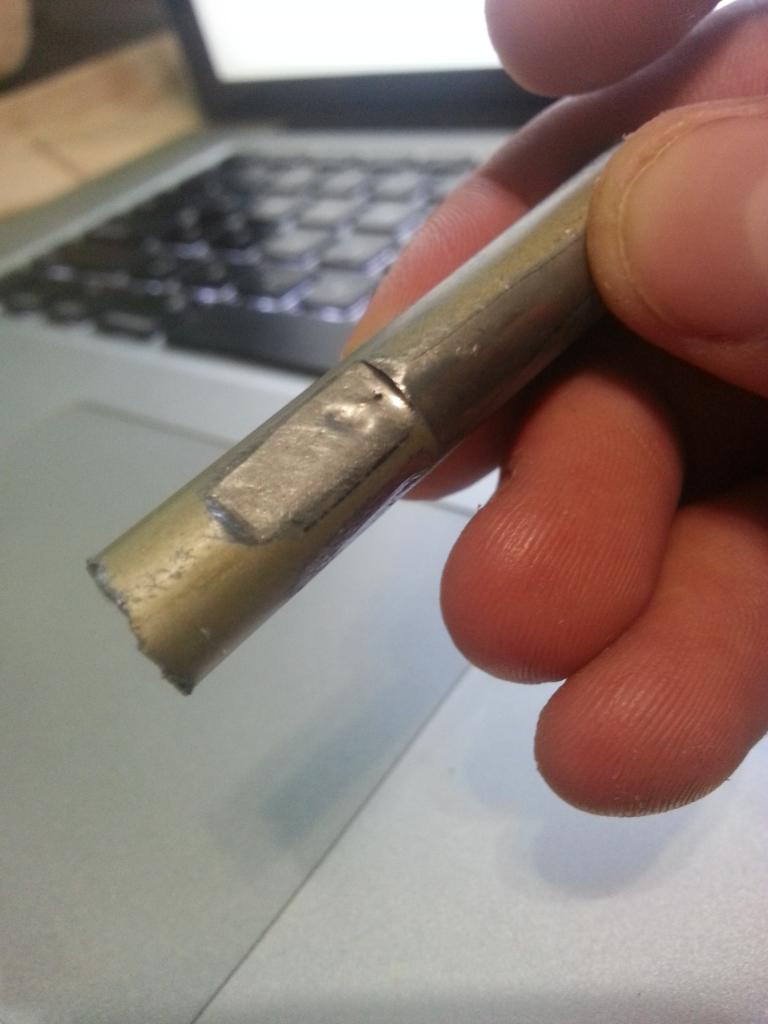

repair a hole in a hardline for the trans cooling lines where it was mounted underneath
this egr is obviously connected to itself and I know thats wrong
just looked up a new EGR(at $80 jeez) it seems that my egr is missing a part to it.
**edit
also let me say, i got the car this way this is my first xj.
only things i have done to it so far, go from closed to open cooling and
repair a hole in a hardline for the trans cooling lines where it was mounted underneath
Last edited by Alpine; 08-28-2014 at 07:11 PM.
08-28-2014, 07:48 PM
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
No eGR solenoid?
08-28-2014, 10:07 PM
#6
Member
Join Date: Feb 2014
Location: north of the Rio Grande, south of the Red, east of the Pecos, west of the Sabine
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Comanche
Engine: 4.0

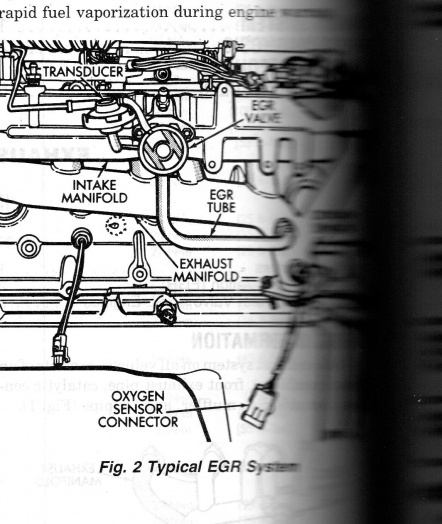

If your 89 is the same as the 90, what you're missing (and also missing in Cruiser's vacuum diagram) is the EGR transducer, a small plastic gizmo that is not mounted to anything, but is kept in place by the vacuum lines themselves. The only diagram that i can find is on the firewall, but I scanned this drawing in my FSM that shows the transducer and its location. After posting this I'll see if I can find a source for the part.
08-28-2014, 10:15 PM
#7
Member
Join Date: Feb 2014
Location: north of the Rio Grande, south of the Red, east of the Pecos, west of the Sabine
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Comanche
Engine: 4.0
Well crap....I found 'em. Still carried by stealerships for over $100. http://www.factorychryslerparts.com/.../53004867.html
Go to a junk yard and grab one off a Renix era 4.0L.
Go to a junk yard and grab one off a Renix era 4.0L.
Trending Topics
08-28-2014, 10:17 PM
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Well crap....I found 'em. Still carried by stealerships for over $100. http://www.factorychryslerparts.com/.../53004867.html
Go to a junk yard and grab one off a Renix era 4.0L.
Go to a junk yard and grab one off a Renix era 4.0L.
08-28-2014, 10:21 PM
#9
Newbie
Thread Starter
Join Date: Jul 2014
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
If your 89 is the same as the 90, what you're missing (and also missing in Cruiser's vacuum diagram) is the EGR transducer, a small plastic gizmo that is not mounted to anything, but is kept in place by the vacuum lines themselves. The only diagram that i can find is on the firewall, but I scanned this drawing in my FSM that shows the transducer and its location. After posting this I'll see if I can find a source for the part.
hopefully i can find one at a jy
thanks.
08-28-2014, 10:25 PM
#10
Member
Join Date: Feb 2014
Location: north of the Rio Grande, south of the Red, east of the Pecos, west of the Sabine
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Comanche
Engine: 4.0
Well, by clicking on the link, then clicking on the link of the part on that page, it references both item #11 and item #18 in the parts blow-up, so the price might be for both the transducer and the valve. I hate parts definitions like the one shown on that website. Still, a junkyard is a good bet.
EDIT........
And in looking at more sources, it is definitely the entire assembly, transducer and valve, and $88 at one site. And can't find a source for the xducer alone.
EDIT........
And in looking at more sources, it is definitely the entire assembly, transducer and valve, and $88 at one site. And can't find a source for the xducer alone.
Last edited by Bobolink; 08-28-2014 at 10:41 PM.
08-29-2014, 04:34 AM
#11
Senior Member
I'm going to have to check -I don't think my '87 has one. Here's a pic from ebay
There's a good post (with diagram) on this topic on the Comanche Club forum:
http://comancheclub.com/topic/28026-...vacuum-issues/
There's a good post (with diagram) on this topic on the Comanche Club forum:
http://comancheclub.com/topic/28026-...vacuum-issues/
Last edited by 67 GMC; 08-29-2014 at 04:40 AM.
