Run without AC
#1
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Rapid City SD
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Run without AC
I got a 97 that the AC compressor pulley bearings seized on. Obviously I can't run the Jeep like this, and I need to be running by Christmas. I really don't have the cash for a re-man compressor, and I don't want to just vent the R-134 as I want to get it working this spring. I can't find just the pulley to replace it with like is described in the FSM either. Getting the bypass pulley would mean removing the compressor. and like i said venting the refrigerant. Also found out there was no option for a 97 without AC either. The parts store found that on a 95 you can get one with out AC. Issue is I see that the belt with AC is 2 inches longer than the 97. So first would the 95 non-ac belt work or is there anyone out there has found a belt that will work on a 97 and bypass the ac compressor?
#2
CF Veteran
Join Date: Aug 2009
Location: Hanover,Ont, Canada
Posts: 1,047
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1991
Model: Cherokee
Engine: 4.o
Just a thought, remove the nut at the center of the ac clutch, remove the outer clutch plate, you should see a snap ring that holds the pulley/brg on the end of the compressor. If you can get the failed pulley off, you can possibly replace the bearing or get a parts comp from the jy.
Good luck!
Good luck!
#4
CF Veteran
Join Date: Oct 2010
Location: Long Island N.Y.
Posts: 1,889
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: I6 4.0

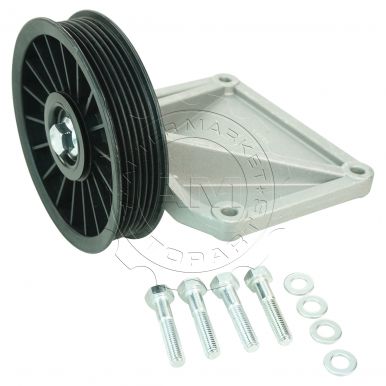

Do what i did car quest carries a direct bolt on A/C bypass pulley it takes away the compressor and is a free spinning pulley call car quest its like 50 bucks if you tell them you work for a some BS shop they give you discount this is exactly what it looks like http://www.am-autoimages.com/partima...64559/main.JPG
#5
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Rapid City SD
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
If I'm going to spend 50 bucks I might as well spend another 50 and get the new compressor. I was hoping for something quick and cheap to get me through the winter. I guess just using a different belt isn't possible. Unfortunately new bearings won't be in until mid week and it needs to be fixed by Thursday.
#6
Junior Member
Join Date: Dec 2011
Location: Western Arkansas (in the ozarks, on the arkansas)
Posts: 48
Likes: 0
Received 1 Like
on
1 Post
Year: 95
Model: Cherokee
Engine: 4L
My 95 has an alternate belt routing for no AC does the 97 not have this?
If not just replace the bearing or bearing/clutch assembly only. If you replace the compressor you have to replace freon, etc and could screw something else up at the same time. I have replaced the bearing on several of my A/C compressors and it is not a big deal (they were not xj though). Thx-Ace
If not just replace the bearing or bearing/clutch assembly only. If you replace the compressor you have to replace freon, etc and could screw something else up at the same time. I have replaced the bearing on several of my A/C compressors and it is not a big deal (they were not xj though). Thx-Ace
Trending Topics
#8
Newbie
Join Date: Feb 2012
Location: Washington
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L
Same problem. I have been unable to locate any ac bypass pulley that will bolt right in. AC cluth is 200 bucks. New compressor is also 200 bucks and then some. SOOO I pulled the clutch off and removed the bearing. Found a replacement bearing and it is 38 bucks. Lot of money for a bearing but better than a new ac compressor.
Napa could not get it. I actually found it through a local parts store who ordered it from cyberland somewhere. They are out there though. Good luck.
Napa could not get it. I actually found it through a local parts store who ordered it from cyberland somewhere. They are out there though. Good luck.
