Surging problems

Thread Tools

Search this Thread

Old 12-08-2014, 08:06 PM
  #1
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default Surging problems

Have a 1997 5 speed jeep

About a year ago the mpg has went from 23 to 15 and it surges bad. 0 to 60 mph surges. In high gear under load like a hill surges. You can see black (rich) smoke out the back window when you hard accelerate. - no joke. It all so feels like it has much less power.
What I have done in the past year. Just so you know. PS the problem was the same before the motor rebuild.

Air filter
Coil
Plugs
Wires
Fuel pump (not pressure regular)
Cleaned injectors
Crank position sensor
Rebuild motor ( oil pressure )
Vacuum seafoam
Upstream 02 sensor
Checked fuel pressure. In spec
No codes other than o2 out of range.

Can anyone help? I drive this a lot and the mpg is killing me.
Old 12-09-2014, 12:07 AM
  #2
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes on 16 Posts
Year: My Jeep is a GMC
Default

Check the O2 sensor fuse? Simple stuff first.
Old 12-10-2014, 03:22 PM
  #3
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Turbo X_J
Check the O2 sensor fuse? Simple stuff first.
Not the 02 sensor fuse. Just checked it.
Old 12-10-2014, 04:12 PM
  #4
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes on 16 Posts
Year: My Jeep is a GMC
Default

What is the exact numeric code? Is this thing 2wd?
Old 12-10-2014, 05:57 PM
  #5
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

It's not 2 wheel.

I code has been wiped but I'll re scan it to see if it coded again
Old 12-10-2014, 09:01 PM
  #6
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Rescanned with no codes.
Old 12-11-2014, 02:40 AM
  #7
CF Veteran

hbracing13's Avatar

Join Date: Sep 2011
Location: new mexico
Posts: 1,874
Likes: 0
Received 1 Like on 1 Post
Year: 88
Engine: 4.0
Default

So in first start no problems. Light throttle no problems. But on hard throttle from 0 to 60 it bogs And when under load it bogs. Had code for o2 bit that's it. If it was me it try to recreate the bog/miss and record live feed. Then look at when it starts acting up and see if anything looks out of spec.
What does cap and rotor look like again? Moisture? Wouldn't a ground have similar problems like that?
Old 12-11-2014, 04:49 PM
  #8
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Has had grounds removed and cleaned (when I rebuilt the motor). Cap and rotor look good.
Old 12-11-2014, 06:55 PM
  #9
CF Veteran

hbracing13's Avatar

Join Date: Sep 2011
Location: new mexico
Posts: 1,874
Likes: 0
Received 1 Like on 1 Post
Year: 88
Engine: 4.0
Default

Had you checked all sensors for in valve readings? A sticking tps will bog and give you a miss feeling. Iat also see the tps then so the map any one of those being off can cause problems, but also can throw a code.
Old 12-16-2014, 12:04 PM
  #10
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Originally Posted by hbracing13
Had you checked all sensors for in valve readings? A sticking tps will bog and give you a miss feeling. Iat also see the tps then so the map any one of those being off can cause problems, but also can throw a code.
Working on the tps today..... I hope
Old 12-16-2014, 07:16 PM
  #11
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Codes as of today. P0443 and P1492
Old 12-16-2014, 07:18 PM
  #12
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

It seems like the TPS checks out. The best I can do with a multi meter is what the book/internet says.
Old 12-16-2014, 10:47 PM
  #13
CF Veteran

hbracing13's Avatar

Join Date: Sep 2011
Location: new mexico
Posts: 1,874
Likes: 0
Received 1 Like on 1 Post
Year: 88
Engine: 4.0
Default

What happens if you unplug the upstream O2 and run it does anything change besides a MIL light for the O2. Evap purge solenoid circuit open or hose broken. The other is battery ambient temp sensor, the only thing is that something if feeding the battery more voltage and it getting hot or something. I don't think a evap solenoid/ broken hose would be causing issues like that.
Old 12-20-2014, 08:49 PM
  #14
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Originally Posted by hbracing13
What happens if you unplug the upstream O2 and run it does anything change besides a MIL light for the O2. Evap purge solenoid circuit open or hose broken. The other is battery ambient temp sensor, the only thing is that something if feeding the battery more voltage and it getting hot or something. I don't think a evap solenoid/ broken hose would be causing issues like that.
I unplugged the up stream it ran better. Then I replaced it, I have not unplugged the new one yet and run it. I'll try it and get back to you.
Old 03-19-2015, 04:38 PM
  #15
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Default

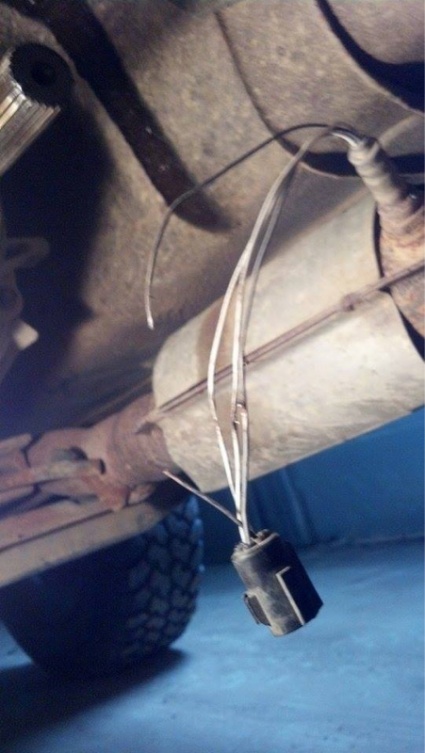

Fixed!!! Killed the mouse that caused the problems.
Attached Thumbnails Surging problems-image-1646987950.jpg
