Temperture gauge goes down with the heat on
#16
CF Veteran
Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
I don't know if this happens to you also rooster but when I turn on any of my climate control settings wether its a/c or heater my e-fan turns on also. Another possibility as to why it drops.
#17
CF Veteran
Join Date: May 2008
Posts: 3,018
Likes: 0
Received 17 Likes
on
17 Posts
Year: 1988
Model: Cherokee
Engine: AMC242
Anytime the AC REQ signals goes out (aircon, defog) to the ECU, part of its response is to turn on the e-fan to handle the extra thermal load and reduced heat rejection capacity of the system (the "reduced capacity" is because the condenser is in front of the radiator core, and the air flowing over the core is therefore that much warmer. It can accept that much less heat. Therefore, more of it is needed to accept the same amount of heat rejection as before. Basic thermodynamics...)
#18
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Seems like there should be 1 or 2 vent selector positions that do not engage the compressor (which engages the efan). In those positions, the efan should only be engaged by coolant temp.
#19
CF Veteran
Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0

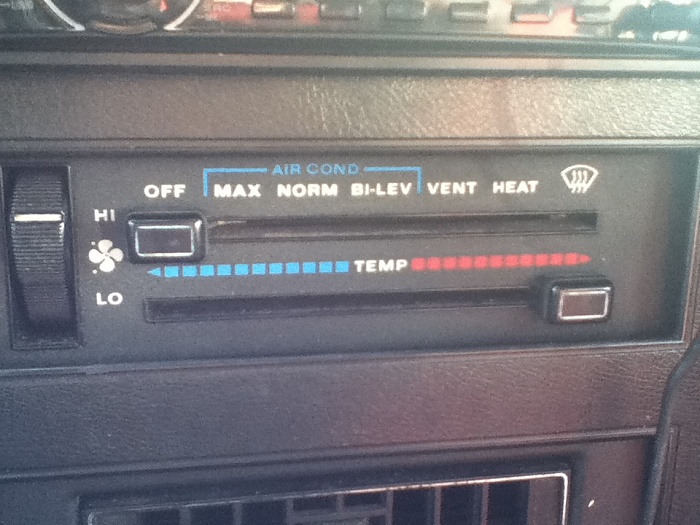

These are the options I have for climate control. I usually have it on the vent or heat selection (I like the heat one because it comes out the floor boards and heat rises.
I'm not saying any of this is a problem just that its a possible reason for the sudden drop in temp.
#21
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
The temp selector lever will mix in heat when moved to the right regardless of where the vent selector lever is set. The compressor should not engage in the vent and heat positions (no efan) thus no efan on in the vent/heat positions unless coolant temp rises high enough to trigger the efan.
#22
CF Veteran
Thread Starter
Join Date: Feb 2011
Location: Bergen County, New Jersey U.S.A.
Posts: 3,074
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990 Laredo
Model: Cherokee
Engine: 4.0 Inline 6 Renix
That's what I want to see is if the e fan is making the temp drop happen...
#23
Senior Member
Join Date: Jan 2011
Location: Russellville, Arkansas
Posts: 957
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I-6
My '91 fluctuates like this until it is good and warmed up, and it takes a while this time of year. When I serviced my cooling system, I removed the AC condenser so I get more airflow through the radiator. This is great during the warm summers here, not too bad during the winters. As a result, even on defrost, my aux fan doesn't kick on when I turn on the defrost-only when it gets to around 218 degrees. No AC in the summer, but I never use it anyway. Anywho, like was said before, running your heat will cause a fluctuation until the vehicle is fully warmed up. Nothing to worry about.
#24
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
If ambient is cold enough to need the heater, one of the vent selector positions that does not engage the compressor should be used.
#25
CF Veteran
Join Date: Feb 2012
Location: Southern Oregon
Posts: 1,206
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
So out of curiosity why does the defrost engage the compressor? I figured it just put hot air through the vents on top of the dash, I don't see why the compressor would need to be engaged for that.
#26
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
The XJ HVAC is no different than any other vehicle.....defrost (outside)/defog (inside) work the same.
Last edited by djb383; 02-20-2013 at 09:03 PM.
#28
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
....but some folks don't understand that 4 of the 6 vent selector positions (pic above) engage the compressor (efan on, '99 down XJs) and on later model XJs with 7 positions, 5 of the 7 vent selector positions engage the compressor. Likewise, some folks don't understand that the temp selector has nothing to do with compressor engagement (or efan on).
Last edited by djb383; 02-21-2013 at 12:38 PM.
