Trailer Light Wiring Problem.
#16
CF Veteran
Join Date: Nov 2011
Location: Las Vegas, NV - St. George, UT
Posts: 1,314
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
I had that problem with mine. The tail lights would work, but the brake and signal wouldn't. Ended up replacing the converter and now everything works fine. Plug and play or universal shouldn't matter.
Have you checked the actual voltage at the lights for the brake/turn? And the voltage for the tails? Make sure it is at least 10V
Have you checked the actual voltage at the lights for the brake/turn? And the voltage for the tails? Make sure it is at least 10V
#17
Senior Member
Join Date: Jan 2010
Location: Lyons, Oregon
Posts: 536
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 HO
Blinkers and Brake use the same filament on the trailer, make sure your bulbs are good. I've had both fail within hours of each other. Get a test light, probe on one end and alligator clip on the other and check your plug, if it's working there it's on the trailer somewhere. Also refresh your grounds!! A lot of older trailers use the ball as a ground. I've seen running lights work right after hooking up but brakes/blinkers didn't until I'd driven a few miles (rubbed the rust off the top of the ball/bottom of the coupler).
#18
Member
Thread Starter
Join Date: Jan 2011
Location: Bridgeport, tx
Posts: 195
Likes: 0
Received 1 Like
on
1 Post
Year: 1991
Model: Cherokee
Engine: 4.0 High Output
I have regrounded the trailer ground, the trailer lights work perfectly on my dads truck, and the trailers bout new so the lights are good
#20
Member
Thread Starter
Join Date: Jan 2011
Location: Bridgeport, tx
Posts: 195
Likes: 0
Received 1 Like
on
1 Post
Year: 1991
Model: Cherokee
Engine: 4.0 High Output
Ok I used my test like all the way back to the bulb, it flashed when I punctured the wire for the blinker, but the light wouldn come on? Then all the sudden it blink about 5 times kinda dull, then stopped...them blinked again 5 times then stopped?
Could it be lack of volts?
Could it be lack of volts?
#21
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
As stated above, the blinkers and brakes on the XJ are two separate bulbs.....on the trailer, they are both in the same bulb, that's why the plug-n-play converter is needed.
#22
CF Veteran
Join Date: Nov 2011
Location: Las Vegas, NV - St. George, UT
Posts: 1,314
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Ok I used my test like all the way back to the bulb, it flashed when I punctured the wire for the blinker, but the light wouldn come on? Then all the sudden it blink about 5 times kinda dull, then stopped...them blinked again 5 times then stopped?
Could it be lack of volts?
Could it be lack of volts?
#24
CF Veteran
Join Date: Nov 2009
Location: Dallas, GA 30157
Posts: 1,438
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Grand Cherokee
Engine: 4.0
what kind of truck does your dad have? Are the brake lights and turn signals
the same bulb or different?
Also, run a temporary ground from your truck to the trailer, just to see if it is
a grounding problem.(you can use jumper cables for this)
the same bulb or different?
Also, run a temporary ground from your truck to the trailer, just to see if it is
a grounding problem.(you can use jumper cables for this)
Last edited by PatriotGT; 01-26-2013 at 11:51 PM.
#26
CF Veteran
Join Date: Nov 2011
Location: Las Vegas, NV - St. George, UT
Posts: 1,314
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Again, I had my converter go out and produce the exact same problem that you are having. This converter was installed last year and I never used it until earlier this month. Low voltage output was the cause so I had to replace the converter.
Also, no mention of whether the trailer has LED lights or not. Make sure your flasher is set up for LED and can handle the extra bulb capacity. Get the LED 4-6 bulb flasher.
#28
CF Veteran
Join Date: Nov 2011
Location: Las Vegas, NV - St. George, UT
Posts: 1,314
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
#29
CF Veteran
Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 15 Likes
on
15 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO

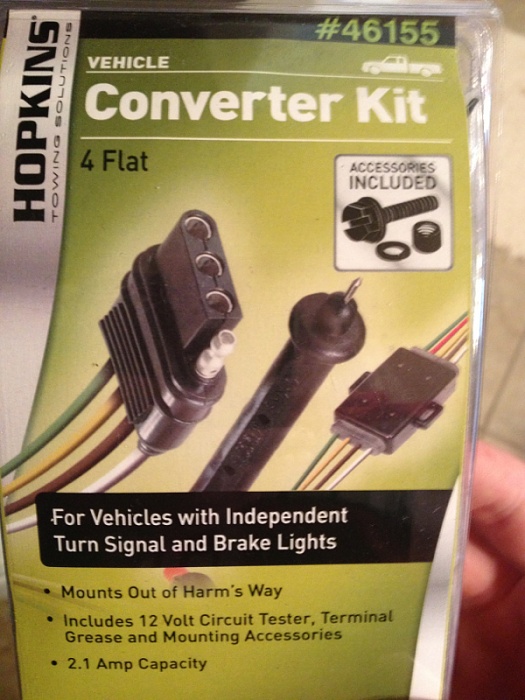

Was the converter specific for your year XJ? We could not find a year/model converter locally for our XJ....ordered it from etrailer.com. It works perfect with the stock XJ flasher and the LED lights on our trailer. The correct/model year specific converter is fool-proof plug-n-play.
