transmission
#1
transmission
Still can't figure out why my transmission wont shift on its own. Tried changing the tcu today and didn't do any good and the inline fuse is good. Do u think that its the solenoids in the pan or am I missing something? Wiring looks good to.
#2
Junior Member
Join Date: Dec 2012
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
A dirty/malfunctioning NSS or TPS can cause this. Codes?
#3
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 21 Likes
on
18 Posts
Model: Cherokee
Try measuring the solenoid resistance. You can do it from the transmission harness where it plugs into the TCU. Should be in the 12 ohm ballpark.
Might also measure the voltage there by backprobing the connector while driving to see if the TCU is attempting to operate the solenoids.
NSS shouldn't be an issue on a '91, at least not where it would completely prevent shifts, but the TPS might be.
Anything in particular happen right before it stopped shifting?
Might also measure the voltage there by backprobing the connector while driving to see if the TCU is attempting to operate the solenoids.
NSS shouldn't be an issue on a '91, at least not where it would completely prevent shifts, but the TPS might be.
Anything in particular happen right before it stopped shifting?
#4
It was like that that when I got it but didn't know the the Tps would keep it from shifting. I will start checking all the the wires I guess. What would the Tps read if its good or bad?
#6
Seasoned Member
Join Date: Jun 2011
Location: Key Peninsula, WA
Posts: 319
Likes: 0
Received 3 Likes
on
2 Posts
Year: 1997
Model: Grand Cherokee
Engine: 4.0
Always do the easy stuff first.
Did you adjust the TV cable?
https://www.cherokeeforum.com/f2/free-quick-fix-41821/
Did you adjust the TV cable?
https://www.cherokeeforum.com/f2/free-quick-fix-41821/
Trending Topics
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
91 may still have the fuse wrapped in the yellow tape up under the passenger side dash. Check it out. If the fuse is blown or corroded, it won't shift.
#10
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#12
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#14
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
If I had power, I would make sure the TCU is plugged all the way in.
There are some connectors under the hood near the dipstick tube that carry all the info between the tCU, various sensors and trans solenoids:
Cruiser’s Trans Plug Refreshing

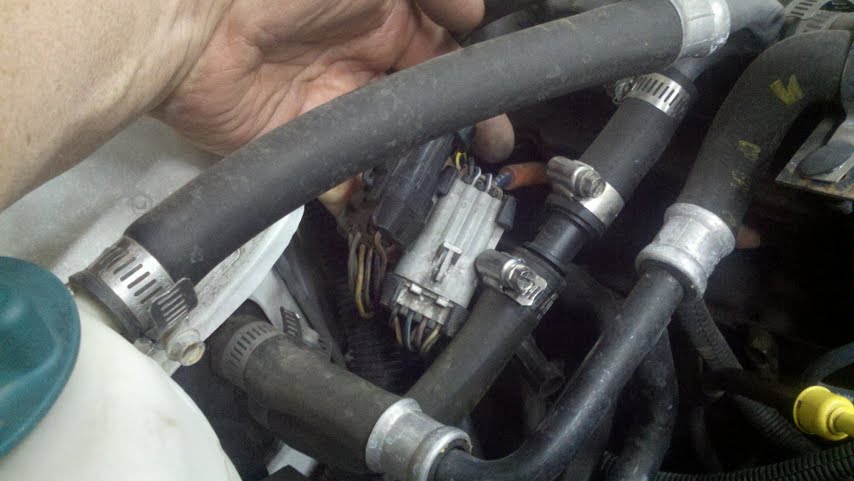

Over near the transmission dipstick tube are 2 rather large connectors. One is black and the other gray. These 2 connectors carry all the info between TPS, TCU, NSS, speed sensor, and transmission solenoids.
Unplug each one, visually inspect for corrosion or bent pins, spray them out with electrical contact cleaner and plug them back in.
Additionally, if your Jeep is an 87 to 90 Renix, it’s always a good idea to reach up under the glovebox area and unplug the connector to the TCU and spray it out along with the receptacle of the TCU. While you’re there, find the fuse right in that area for the TCU. Remove it and spray out it’s receptacle and clean any corrosion from the fuse.
Revised 9-10-2012
