Transmission cooling line fitting? Help?
#1
Thread Starter
Junior Member
Joined: Jul 2012
Posts: 66
Likes: 0
Year: 1988
Model: Cherokee
Engine: Inlie 6 4.0
Transmission cooling line fitting? Help?

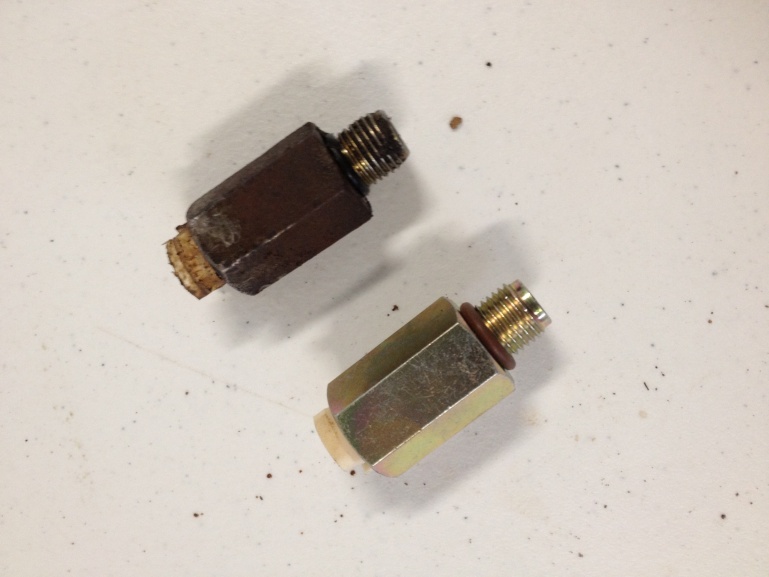

Hey guys, so my upper (pressure) transmission cooling line fitting was all rusty and I think something hit it and bent it. Thus, the little plastic (snap) that goes into the little fitting cracked making trans fluid spray everywhere. Now I'm talking about on the transmission it's self, not the transmission cooling radiatior. So I went out and spend $10 bucks on this little fitting and after about 4 hours I installed it jus to find out that it leaked because the old line was all rusty and bent where it goes into the fitting. So I tried bending it back, and well of course it snapped about a half of a inch inside the fitting. What I'm wondering was if there is a way you can just weld a barbed fitting onto the end of the fitting that goes on the trans and then just put rubber hose on the end of the barbed fitting an then about 3 inches onto the old line with some hose clamps? Or do they sell a fitting that comes pre-made so I don't have to weld it? I'm talking about this fitting : http://m.summitracing.com/parts/rnb-800-714
I have managed to get it to a drip compared to how it used to spray by bending the line a bit inside the fitting.
Any help will be appreciated, Thanks!
I have managed to get it to a drip compared to how it used to spray by bending the line a bit inside the fitting.
Any help will be appreciated, Thanks!
#2
CF Veteran
Joined: Nov 2008
Posts: 7,874
Likes: 98
From: Northern Ontario, Canada
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
where did it snap? do you have a pic of the area the break is in?
if it's along the front near the rad, i've cut mine out and just used rubber hose and clamps without any problems for a few years now.
if it's along the front near the rad, i've cut mine out and just used rubber hose and clamps without any problems for a few years now.
#3
Thread Starter
Junior Member
Joined: Jul 2012
Posts: 66
Likes: 0
Year: 1988
Model: Cherokee
Engine: Inlie 6 4.0
No, it snapped off by the opposit end that goes into the transmission. And the end of the line cracked off inside the fitting. That's why I wa wondering if they made a barbed fitting so I could just completely get rid of that quick disconnect dorman fitting and just put a rubber hose on it and then on the end of the line.
#7
Newbie
Joined: Feb 2013
Posts: 11
Likes: 0
From: Lewisville, NC
Year: 1998
Model: Cherokee
Engine: 4.0L
I'd say spend a little dough and convert it to AN fittings with trans fluid rated line. May cost you $100 or so initially for both but will be leak free for years and the fittings are reusable should the hose go bad.
That what I'll be doing soon to fix all the leaks with mine.
That what I'll be doing soon to fix all the leaks with mine.
Trending Topics
#8
Thread Starter
Junior Member
Joined: Jul 2012
Posts: 66
Likes: 0
Year: 1988
Model: Cherokee
Engine: Inlie 6 4.0
---UPDATE---FIXED---!
Hey guys, so my upper (pressure) transmission cooling line fitting was all rusty and I think something hit it and bent it. Thus, the little plastic (snap) that goes into the little fitting cracked making trans fluid spray everywhere. Now I'm talking about on the transmission it's self, not the transmission cooling radiatior. So I went out and spend $10 bucks on this little fitting and after about 4 hours I installed it jus to find out that it leaked because the old line was all rusty and bent where it goes into the fitting. So I tried bending it back, and well of course it snapped about a half of a inch inside the fitting. What I'm wondering was if there is a way you can just weld a barbed fitting onto the end of the fitting that goes on the trans and then just put rubber hose on the end of the barbed fitting an then about 3 inches onto the old line with some hose clamps? Or do they sell a fitting that comes pre-made so I don't have to weld it? I'm talking about this fitting : http://m.summitracing.com/parts/rnb-800-714
I have managed to get it to a drip compared to how it used to spray by bending the line a bit inside the fitting.
Any help will be appreciated, Thanks!
I have managed to get it to a drip compared to how it used to spray by bending the line a bit inside the fitting.
Any help will be appreciated, Thanks!
____________________UPDATE___________FIXED!_______ _________
- So what I did t o fix it was took the old fitting and welded a peice of steel pipe that threaded into it. Then I threaded a 90 Degree elbow on it with a barbed fitting sticking off that. I then put one hoseclamp on the barbed fitting side, And then two on the side that it just slid over the hose. I had to cut the line like 4' back.
Here are some pics. Did a little bit of trail driving.
Web sight still messed up.
http://s1084.photobucket.com/user/12...n%20line%20fix
