Transmission leak in front..
#16
Member
Thread Starter
Join Date: Oct 2008
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89
Model: Cherokee
Engine: 4.0L
Yea, very much so. I will just try to replace it with whatever they suggest. Sounds like it doesnt matter that much.. good to replace the filter at the same time? might as well make some routine maintenance out of this haha.
#17
Renix Super Guru
Join Date: Mar 2008
Location: In yourz postez fissin jurr spelinzs
Posts: 24,653
Likes: 0
Received 19 Likes
on
13 Posts
Year: 1990XJ/1989MJ
Model: Comanche
Engine: 4.0L Renix
IMO the rubber gasket is a better choice if it is available. It won't rot as fast as the cork one and if you use the red FormaGasket you will probably never have a leak. Hope that solves your problem but if you need to replace the front seal we will try to help with that as well.
#18
Member
Thread Starter
Join Date: Oct 2008
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89
Model: Cherokee
Engine: 4.0L
Very cool man, hey the forma gasket is that the red goupey stuff? or is it a plyable gasket?
If it was the front main seal would the oil be on the pan too? i know it drops from the front but im wondering where its coming from as far as leaking on the exhaust
If it was the front main seal would the oil be on the pan too? i know it drops from the front but im wondering where its coming from as far as leaking on the exhaust
#19
Renix Super Guru
Join Date: Mar 2008
Location: In yourz postez fissin jurr spelinzs
Posts: 24,653
Likes: 0
Received 19 Likes
on
13 Posts
Year: 1990XJ/1989MJ
Model: Comanche
Engine: 4.0L Renix
The red FormaGasket is in a tube like toothpaste.
If the fluid was leaking from your front seal then it would run down the inside of the bellhousing and also down the torque converter and out the front of the bellhousing and spray all over everything from the bell back to the rear bumper. May even get on the rear hatch's glass too.
If the fluid was leaking from your front seal then it would run down the inside of the bellhousing and also down the torque converter and out the front of the bellhousing and spray all over everything from the bell back to the rear bumper. May even get on the rear hatch's glass too.
#20
Member
Thread Starter
Join Date: Oct 2008
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89
Model: Cherokee
Engine: 4.0L
Thanks for the advice blue, i got the stuff and am going to install it later today.
Kind of a stupid question but when i replace the pan gasket im going to fill it back up with fluid but any advice on replacing the filter? ive never replaced one before.
Kind of a stupid question but when i replace the pan gasket im going to fill it back up with fluid but any advice on replacing the filter? ive never replaced one before.
#22
Member
Thread Starter
Join Date: Oct 2008
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89
Model: Cherokee
Engine: 4.0L
Update!

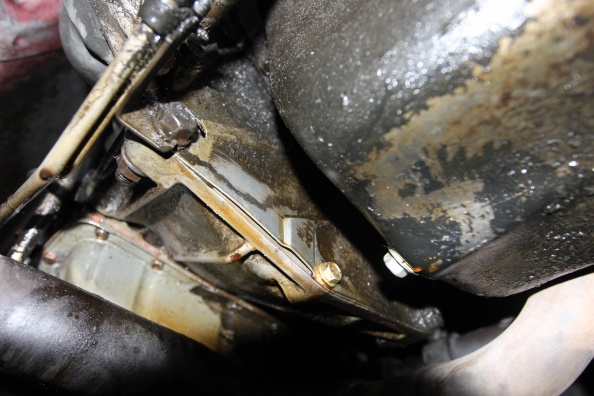

ok, so i almost changed the seal which im going to anyway, but heres the culprit of the leak... if anyone can tell me what might be causing it or if it IS the front main seal..!

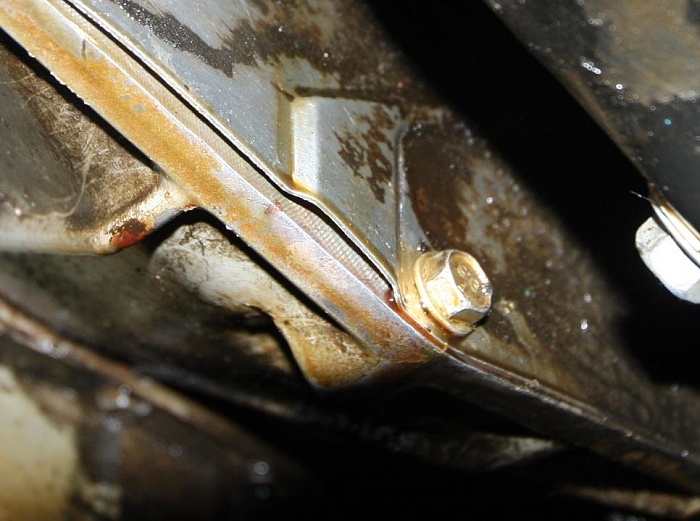

the top pic is far out, but the 2nd one is close
the top pic is far out, but the 2nd one is close
#24
Member
Thread Starter
Join Date: Oct 2008
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89
Model: Cherokee
Engine: 4.0L
Thanks again! Man blue ur on top of things around here, i was hoping you were going to say tighten a bolt somewhere haha. Well, ill have to hope my buddy is home, hes got alot more experience at this than me.
Anyone know a good write up on replacing the front seals? i have the one about the rear.. but a good one on R&Ring the transmission would be great!
Anyone know a good write up on replacing the front seals? i have the one about the rear.. but a good one on R&Ring the transmission would be great!
#25
Renix Super Guru
Join Date: Mar 2008
Location: In yourz postez fissin jurr spelinzs
Posts: 24,653
Likes: 0
Received 19 Likes
on
13 Posts
Year: 1990XJ/1989MJ
Model: Comanche
Engine: 4.0L Renix
Some of the requested info may be in this thread Jsny. https://www.cherokeeforum.com/f2/xj-auto-tranny-removal-advice-5294/
#26
Same Issue
Sorry to bring an old post back to life like this but I have the exact same issue. What was your final fix?
Thanks again! Man blue ur on top of things around here, i was hoping you were going to say tighten a bolt somewhere haha. Well, ill have to hope my buddy is home, hes got alot more experience at this than me.
Anyone know a good write up on replacing the front seals? i have the one about the rear.. but a good one on R&Ring the transmission would be great!
Anyone know a good write up on replacing the front seals? i have the one about the rear.. but a good one on R&Ring the transmission would be great!
#27
CF Veteran
Join Date: Sep 2009
Location: NC
Posts: 5,376
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Mine leaks plain oil colored fluid from that general area too. One bolt down there was backed out almost all the way but when I tried to tighten it back down it just kept spinning and did not get any tighter. What could the fluid be (I guess plain oil, or is tcase fluid also the same color as engine oil?) What can I do about the one bolt that wont tighten?
Last edited by NewXJaddict; 10-21-2009 at 06:21 PM.
#28
Mine leaks plain oil colored fluid from that general area too. One bolt down there was backed out almost all the way but when I tried to tighten it back down it just kept spinning and did not get any tighter. What could the fluid be (I guess plain oil, or is tcase fluid also the same color as engine oil?) What can I do about the one bolt that wont tighten?
TC oil = Transmission Oil (red in color)
You could tap the hole to the next size and get a bigger bolt.
