Upper Control Arm Bushing...
12-02-2012, 09:44 PM
#1
Newbie
Thread Starter
Join Date: Nov 2012
Location: Gillette, Wyoming
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Upper Control Arm Bushing...
Does anyone have any tips on removing the UCA Bushing located on top of the differential housing? Tried about everything I can think of so far...thanks.
12-02-2012, 10:34 PM
#3
Newbie
Thread Starter
Join Date: Nov 2012
Location: Gillette, Wyoming
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Thanks I was worried when mine began to look like swiss cheese until I saw this. I'll see if I cant find an air chisel tommorow at work.
12-03-2012, 09:26 AM
#5
Junior Member
Join Date: Oct 2012
Location: Corpus Christi, TX
Posts: 65
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
this is probably what gave me the most grey hairs during my lift install, trying to figure out how to get this baby out.
After beating it for a couple days trying to collapse it my grandpa brought out a 1.5" fence post about 9 feet long and a quart of burned motor oil. drenched the bushing with the oil, Stuck the pipe in through the passenger side with the axle dropped...... 5 swings with the mini sledge hammer and she was out.
Good luck, let us know when shes out.
After beating it for a couple days trying to collapse it my grandpa brought out a 1.5" fence post about 9 feet long and a quart of burned motor oil. drenched the bushing with the oil, Stuck the pipe in through the passenger side with the axle dropped...... 5 swings with the mini sledge hammer and she was out.
Good luck, let us know when shes out.
12-03-2012, 10:00 AM
#6
Junior Member
I drill several holes thru the rubber, then knock the rubber out, then make a cut in the bottom of the outer metal sleeve and a cut in the top of the metal sleeve with a Saw-z-all. Falls right out 10 minutes later.
12-04-2012, 12:18 AM
#7
Newbie
Thread Starter
Join Date: Nov 2012
Location: Gillette, Wyoming
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
this is probably what gave me the most grey hairs during my lift install, trying to figure out how to get this baby out.

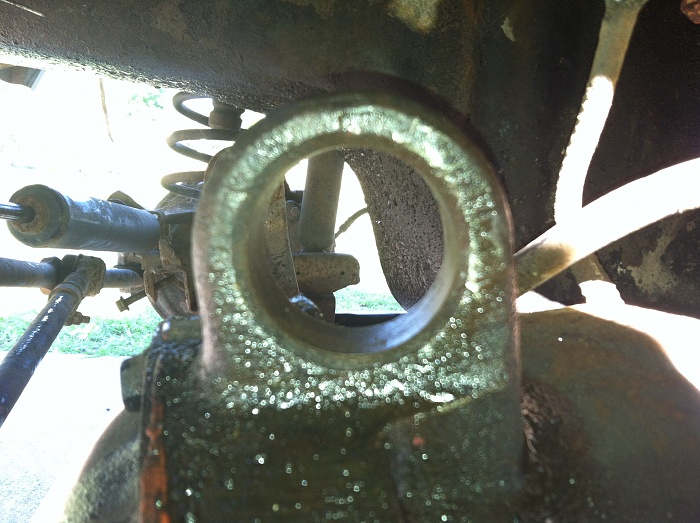

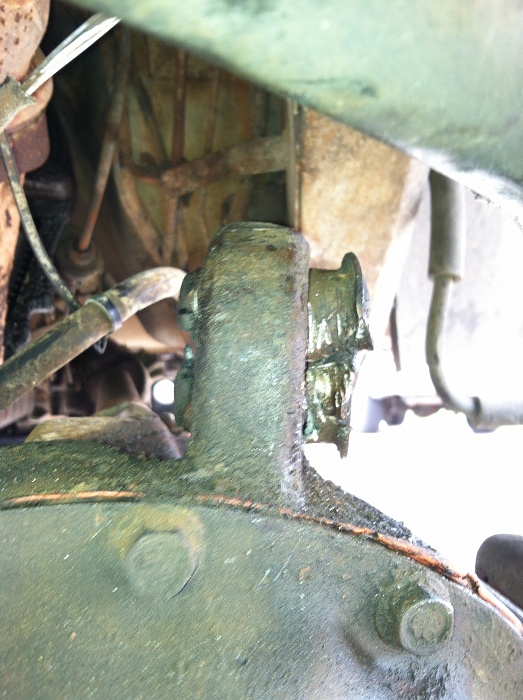

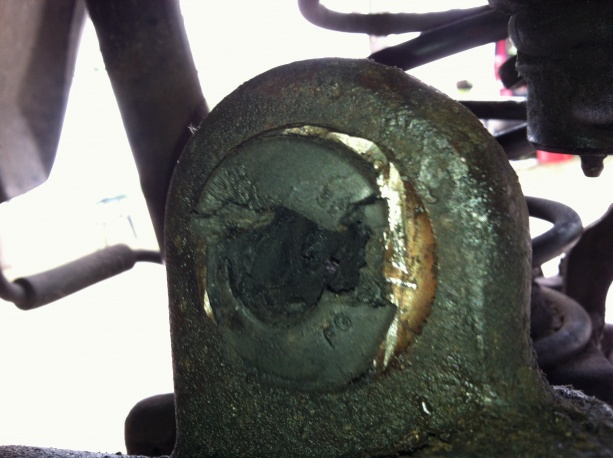

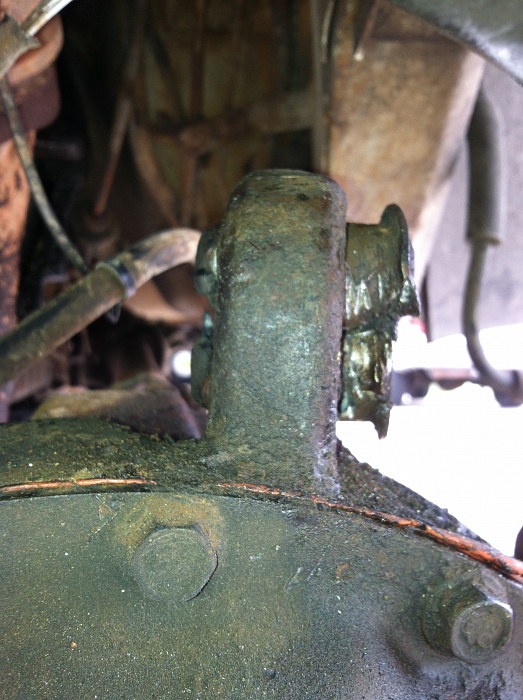

Attachment 158733
Attachment 158735
Attachment 158736
Attachment 158734
After beating it for a couple days trying to collapse it my grandpa brought out a 1.5" fence post about 9 feet long and a quart of burned motor oil. drenched the bushing with the oil, Stuck the pipe in through the passenger side with the axle dropped...... 5 swings with the mini sledge hammer and she was out. Good luck, let us know when shes out.
Attachment 158733
Attachment 158735
Attachment 158736
Attachment 158734
After beating it for a couple days trying to collapse it my grandpa brought out a 1.5" fence post about 9 feet long and a quart of burned motor oil. drenched the bushing with the oil, Stuck the pipe in through the passenger side with the axle dropped...... 5 swings with the mini sledge hammer and she was out.
Good luck, let us know when shes out.Trending Topics
12-04-2012, 09:03 AM
#8
Senior Member
Geeze guys, the best and easiest way is to use a ball joint press. I use mine for ball joints, u joints, control arm bushings you name it, anything that needs to be pressed out really. You can get them cheap, less that $100 and theyre worth every penny!
