Vacuum system help..

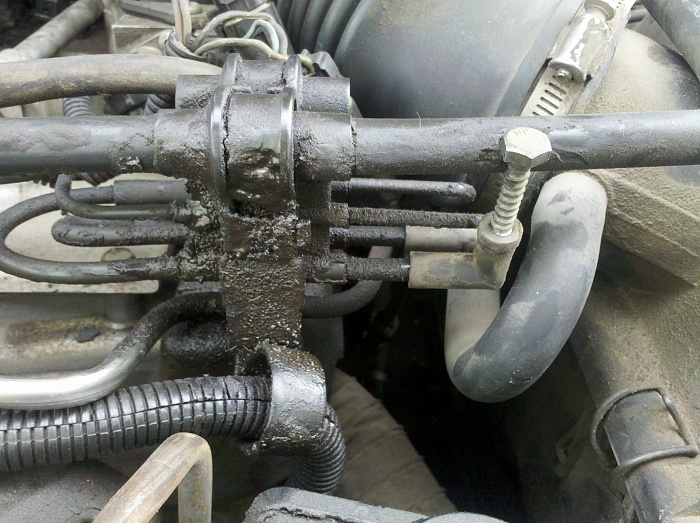

Can anyone tell me where this plugged line goes to? My ac and cruise don't work and am trying to figure out this vacuum system..
Sorry this pic is so big
Sorry this pic is so big
#4
Member
Join Date: Jun 2011
Location: Wisconsin
Posts: 184
Likes: 0
Received 1 Like
on
1 Post
Year: 1988
Model: Cherokee
Engine: 4.0

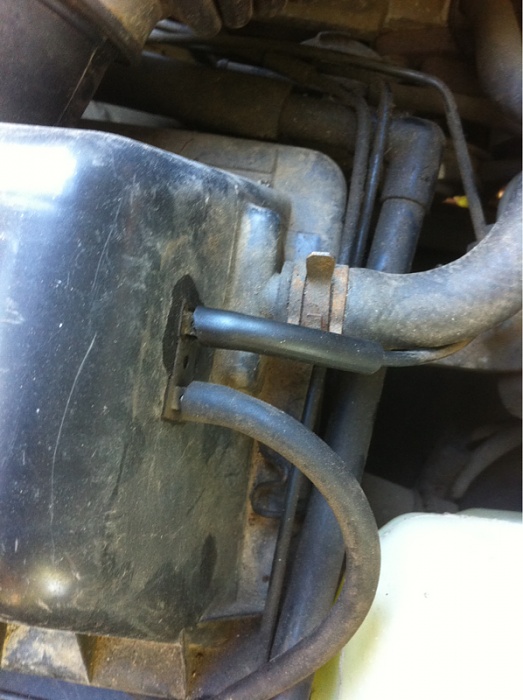

On my 88, that is a vacuum line that run to the back of the top of the air filter housing. My guess is that they have oil coming into their air filter. (very common problem) and that's how they "fixed" it.
#6
Member
Join Date: Jun 2011
Location: Wisconsin
Posts: 184
Likes: 0
Received 1 Like
on
1 Post
Year: 1988
Model: Cherokee
Engine: 4.0
That I can't answer but I just went ahead and fixed that particular issue I was having by using this guide
http://jeep.off-road.com/jeep/tech/c...ter-19834.html
Saved some dough by getting the parts from rockauto instead of the dealer
http://jeep.off-road.com/jeep/tech/c...ter-19834.html
Saved some dough by getting the parts from rockauto instead of the dealer
#7
Member
Join Date: Jun 2011
Location: Rocky Mountain House, Alberta, Canada
Posts: 104
Likes: 0
Received 1 Like
on
1 Post
Year: 1988 & 1990
Model: Cherokee
Engine: Inline 6
Originally Posted by duffman5001
Can anyone tell me where this plugged line goes to? My ac and cruise don't work and am trying to figure out this vacuum system..
Sorry this pic is so big
Sorry this pic is so big
Trending Topics
#8
Seasoned Member
Thread Starter
Join Date: May 2010
Location: NW Montana
Posts: 361
Likes: 0
Received 0 Likes
on
0 Posts
Year: 88
Model: Cherokee
Engine: 4.0
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
And no, that won't affect your cruise or vents. Under the passenger side rear of the front bumper is a vacuum storage cannister that looks kinda like a football. The lines to it run from up near the firewall, next to the battery, and down to it. They are very prone to getting eaten by battery acid. Look there first.
#10
#12
Member
Join Date: Jun 2011
Location: Rocky Mountain House, Alberta, Canada
Posts: 104
Likes: 0
Received 1 Like
on
1 Post
Year: 1988 & 1990
Model: Cherokee
Engine: Inline 6

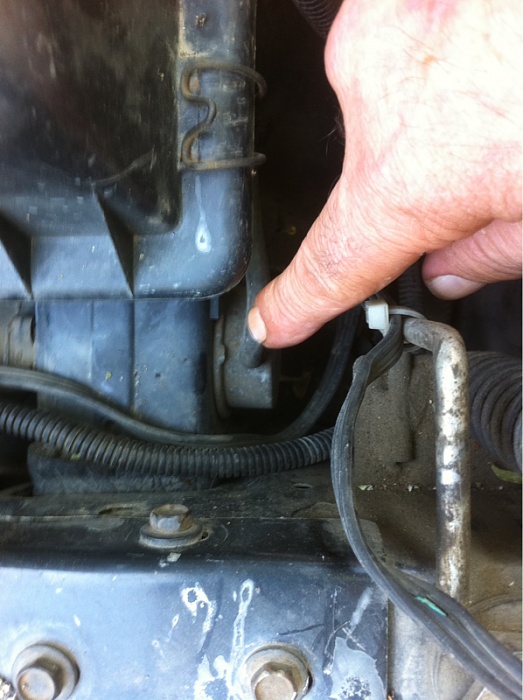

Originally Posted by blinkbears
Rudy, where does the other hose connect to?
