What rear axle is this (off of MJ)
#16
CF Veteran
Thread Starter
Join Date: Oct 2008
Location: Wyo
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Alright all,
I'm hopefully going to take another trip to the JY tomorrow to take more photos and figure out what year this MJ is? The axle in this picture doesn't look like the dana 44 axles that I'm seeing in photos, but I'd at least like to know what this is. I don't know if I'll be able to get any numbers off of the axle, but I'll crawl under there and look for any information that can help. What info should I get from the JY to make a positive ID?
Thanks,
s
I'm hopefully going to take another trip to the JY tomorrow to take more photos and figure out what year this MJ is? The axle in this picture doesn't look like the dana 44 axles that I'm seeing in photos, but I'd at least like to know what this is. I don't know if I'll be able to get any numbers off of the axle, but I'll crawl under there and look for any information that can help. What info should I get from the JY to make a positive ID?
Thanks,
s
#17
CF Veteran
Join Date: Nov 2008
Location: Paso Robles Ca
Posts: 2,473
Likes: 0
Received 9 Likes
on
9 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
GM CORPORATE 14-BOLT
With a 10 1/2-inch-diameter ring gear, the biggest 14-bolt GM rearend looks much like a Dana 70, and is but a few thousandths of an inch shorter in ring gear diameter. This axle is commonly used with big engines and/or overly large tires. It was used under 1973-87 3/4-tons.
#20
CF Veteran
yes it is a dana44. they came stock in some xj's and mj's.
however, mj is spring under, so if you wanna use it in an xj, you'll have to weld some new spring perches ontop. xj spring perches are about a 1/2 inch wider too.
gm 14 bolt is about twice the size as our little d44's.
however, mj is spring under, so if you wanna use it in an xj, you'll have to weld some new spring perches ontop. xj spring perches are about a 1/2 inch wider too.
gm 14 bolt is about twice the size as our little d44's.
#21
CF Veteran
Join Date: Apr 2008
Location: Northern Illinois
Posts: 2,237
Likes: 0
Received 3 Likes
on
3 Posts
Year: 90
Model: Cherokee
Engine: 4.0
What the heck??? Trying to steal my MJ??? Looks almost exactly like mine with the replacement fuel tank and ugly Jeep mudflaps on the front... The only difference I still have some of the exhaust left...
Last edited by whowey; 02-15-2009 at 03:19 AM.
#23
Senior Member
Join Date: Aug 2008
Location: tan house white shutters key's under the flower pot
Posts: 971
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
when i pick that up next week the new muffler will be on it, he said it fell off cuz it wasn't tight
#25
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
IT is not a D44. Me and COs have Dana 44 we prolly look at them everyday in Awe. So take it from us that it is not one. It is prolly a good axle either way better than a 8.25 or D35. But it is not a D44 sorry.
#28
CF Veteran
^not unless there's a spare tire under the motor.
now that i actually look at it closely. it does look like a sterling.
i just assumed it was a 44 since he said it was in an mj.
are you sure it's not an fsj comanche like a honcho?
still it would be either a 44 or a 20. and it's not a 20.
i'm stumped.
now that i actually look at it closely. it does look like a sterling.
i just assumed it was a 44 since he said it was in an mj.
are you sure it's not an fsj comanche like a honcho?
still it would be either a 44 or a 20. and it's not a 20.
i'm stumped.
#29
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6

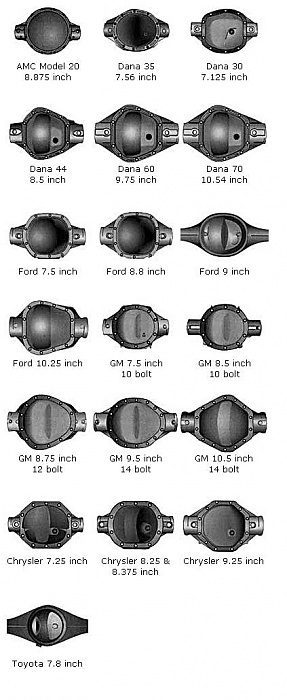

The 44's come to a lil more centered than the one you have pictured. And personally the one you have pictured looks a lil more beefy than a D44
Here is a XJ/MJ D44
Here is a XJ/MJ D44
