Old 01-17-2013, 07:21 AM
  #20791
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
Originally Posted by lowrange2
Wasn't me.






Is it snowing there?


Worst case is it's in a bind. I bet it'll be fine when you back out of your parking spot.
no lol.. I just decided I wanted to see how deep this puddle was in the ditch and figured id whip it in 4wd just to be safe. At first go around when It was just hanging in 2wd I could take the tip of my finger and touch the lever and it would pop back to 4hi. Then with speed I gave it a good push and it felt like it was actually staying in 2wd.
Xj88 is offline
Like
Old 01-17-2013, 07:25 AM
  #20792
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34° 25' 35.67", -81° 21' 12.04"
Posts: 15,016
Received 10 Likes on 8 Posts
Year: 1993
Engine: 4.0
Default
Sounds like you just need to adjust the linkage.
Lowrange2 is offline
Like
Old 01-17-2013, 07:28 AM
  #20793
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
Ill google that.
Will the front shaft spin at the same speed as the rear when in 2wd? (242 t case)
Xj88 is offline
Like
Old 01-17-2013, 07:30 AM
  #20794
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34° 25' 35.67", -81° 21' 12.04"
Posts: 15,016
Received 10 Likes on 8 Posts
Year: 1993
Engine: 4.0
Default
Yes, the front shaft will always spin the same speed as the rear no matter what t-case you have.

Assuming the front and rear gears match and all 4 wheels are on the ground.
Lowrange2 is offline
Like
Old 01-17-2013, 07:32 AM
  #20795
CF Veteran

jp92cherokee's Avatar

Join Date: May 2009
Location: Centennial ! 80015
Posts: 1,154
Likes: 0
Received 1 Like on 1 Post
Year: 1991
Model: Cherokee
Engine: 4.6 stroker ;)
Default
Originally Posted by Xj88
Ill google that.
Will the front shaft spin at the same speed as the rear when in 2wd? (242 t case)
If ur axle gearing is the same front and rear yes it will ...
jp92cherokee is offline
Like
Old 01-17-2013, 07:33 AM
  #20796
CF Veteran

jp92cherokee's Avatar

Join Date: May 2009
Location: Centennial ! 80015
Posts: 1,154
Likes: 0
Received 1 Like on 1 Post
Year: 1991
Model: Cherokee
Engine: 4.6 stroker ;)
Default
Originally Posted by Xj88

no lol.. I just decided I wanted to see how deep this puddle was in the ditch and figured id whip it in 4wd just to be safe. At first go around when It was just hanging in 2wd I could take the tip of my finger and touch the lever and it would pop back to 4hi. Then with speed I gave it a good push and it felt like it was actually staying in 2wd.
What year ? And some req you to go in reverse for a couple of feet after putting from 4hi to 2wd
jp92cherokee is offline
Like
Old 01-17-2013, 07:34 AM
  #20797
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
Its a 2000. It was converted from 2wd to 4wd.. Np 242 t case.. LP D30
Xj88 is offline
Like
Old 01-17-2013, 07:34 AM
  #20798
CF Veteran

jp92cherokee's Avatar

Join Date: May 2009
Location: Centennial ! 80015
Posts: 1,154
Likes: 0
Received 1 Like on 1 Post
Year: 1991
Model: Cherokee
Engine: 4.6 stroker ;)
Default
Originally Posted by lowrange2
Yes, the front shaft will always spin the same speed as the rear no matter what t-case you have.

Assuming the front and rear gears match and all 4 wheels are on the ground.
X2
jp92cherokee is offline
Like
Old 01-17-2013, 07:35 AM
  #20799
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
Ok..I had climbed out and tapped the gas while looking under it and noticed the front shaft spun with me tapping the gas just like the rear did. For some reason I had thought the front shaft just spun freely
Xj88 is offline
Like
Old 01-17-2013, 07:39 AM
  #20800
CF Veteran

jp92cherokee's Avatar

Join Date: May 2009
Location: Centennial ! 80015
Posts: 1,154
Likes: 0
Received 1 Like on 1 Post
Year: 1991
Model: Cherokee
Engine: 4.6 stroker ;)
Default
Originally Posted by Xj88
Ok..I had climbed out and tapped the gas while looking under it and noticed the front shaft spun with me tapping the gas just like the rear did. For some reason I had thought the front shaft just spun freely
Unless u have unlockable/lockable hubs on your axles , your drive shaft will turn no matter what ! It's unlocks in the transfercase
jp92cherokee is offline
Like
Old 01-17-2013, 07:40 AM
  #20801
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
Ok. Ill see how it feels when I go to lunch.. See if it feels like its binding or not.
Xj88 is offline
Like
Old 01-17-2013, 08:24 AM
  #20802
CF Veteran

onlyinajeep726's Avatar

Join Date: Apr 2011
Location: Clayton, NC
Posts: 1,146
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Engine: 4.6L I6 Stroker with port matched +99 intake and 62mm TB
Default
Originally Posted by Xj88
Will the front shaft spin at the same speed as the rear when in 2wd? (242 t case)

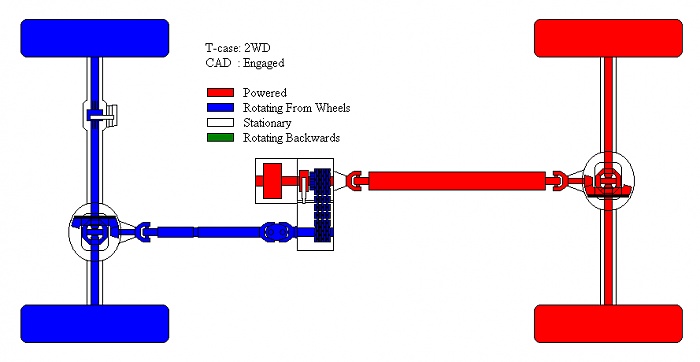

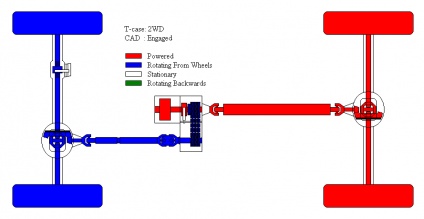

Yes, this holds true for XJ's past '90, as those from '84 - '90 used the CAD vacuum disconnect. The picture below simulates a Jeep in 2WD with the CAD locked. This also applies to the 1 piece front axles that no longer have the CAD, as it is locked all the time.
Attached Thumbnails XJ Ask the Question Thread-2wdclosed.jpg
onlyinajeep726 is offline
Like
Old 01-17-2013, 08:51 AM
  #20803
CF Veteran

99superjeep01's Avatar

Join Date: Feb 2012
Location: Buffalo, NY
Posts: 1,222
Likes: 0
Received 1 Like on 1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
Default
Originally Posted by Xj88
Ok..I had climbed out and tapped the gas while looking under it and noticed the front shaft spun with me tapping the gas just like the rear did. For some reason I had thought the front shaft just spun freely
I always like to pop mine in neutral and coast a few feet.
99superjeep01 is offline
Like
Old 01-17-2013, 08:53 AM
  #20804
Old School CF Moderator

Xj88's Avatar

Join Date: May 2010
Location: Chattanooga
Posts: 9,652
Likes: 0
Received 3 Likes on 3 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default
This is my first jeep with the 242.. Not used to it
Last 2 xjs had 231s. I bet when the PO did the 4x4 swap he didnt adjust the linkage exactly right.
Xj88 is offline
Like
Old 01-17-2013, 09:22 AM
  #20805
Member

bmp120's Avatar

Join Date: Jan 2009
Location: USA
Posts: 130
Likes: 0
Received 1 Like on 1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 / 6 EFI
Default Replace leafs or dont worry about it ... yet
It seems that my back end is sagging.
- 16" from center to flare.
- It should be 17.5" if I read the threads correctly.
- SHocks are good

Should I replace the leafs at this point or am I going through a lot of trouble for not a lot of benefit?

It seems to ride fine or I have just gotten used to a crummy ride.
bmp120 is offline
