Old 02-16-2013, 08:07 PM
  #23851
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
And since cruiser is here, how straightforward is a C101 delete? Just label all the wires on both sides, remove brackets, and solder? I assume there's a hole there big enough for all the wires?
NewKindOfClown is offline
Like
Old 02-16-2013, 08:10 PM
  #23852
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by NewKindOfClown
And since cruiser is here, how straightforward is a C101 delete? Just label all the wires on both sides, remove brackets, and solder? I assume there's a hole there big enough for all the wires?
No hole needed. Solder and shrink tube. Not sure it's worth it but others have done it and been pleased with the results. As a matter of fact, a buddy of mine did it because he had driveability issues and I hooked up my DRB to his 88. Showed a poor reading from the CTS. We wiggled the C101 and the reading was good. Wiggled again and it was bad.
cruiser54 is offline
Like
Old 02-16-2013, 08:11 PM
  #23853
Senior Member

theyammieguy's Avatar

Join Date: Apr 2009
Location: Houston Texas
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: I6
Default
Originally Posted by NewKindOfClown
And since cruiser is here, how straightforward is a C101 delete? Just label all the wires on both sides, remove brackets, and solder? I assume there's a hole there big enough for all the wires?
C101 delete?
theyammieguy is offline
Like
Old 02-16-2013, 08:12 PM
  #23854
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by cruiser54

No hole needed. Solder and shrink tube. Not sure it's worth it but others have done it and been pleased with the results. As a matter of fact, a buddy of mine did it because he had driveability issues and I hooked up my DRB to his 88. Showed a poor reading from the CTS. We wiggled the C101 and the reading was good. Wiggled again and it was bad.
Having trouble diagnosing a misfire/backfire, and problems are compounding. Started it up after work and it was idling at what sounded like 2k+ RPMs. Vacuum lines are all good. Tapped on the C101 a few times, and it dropped to the lowest and smoothest I've ever had it. Still backfiring, though.
NewKindOfClown is offline
Like
Old 02-16-2013, 08:13 PM
  #23855
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by theyammieguy

C101 delete?
'87/88/early '89 Renix rigs used a "C101" connector to pass the wire harness from engine bay to cab.
NewKindOfClown is offline
Like
Old 02-16-2013, 08:16 PM
  #23856
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by NewKindOfClown
'87/88/early '89 Renix rigs used a C101 connector to pass the wire harness from engine bay to cab.

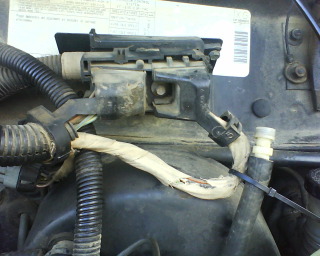

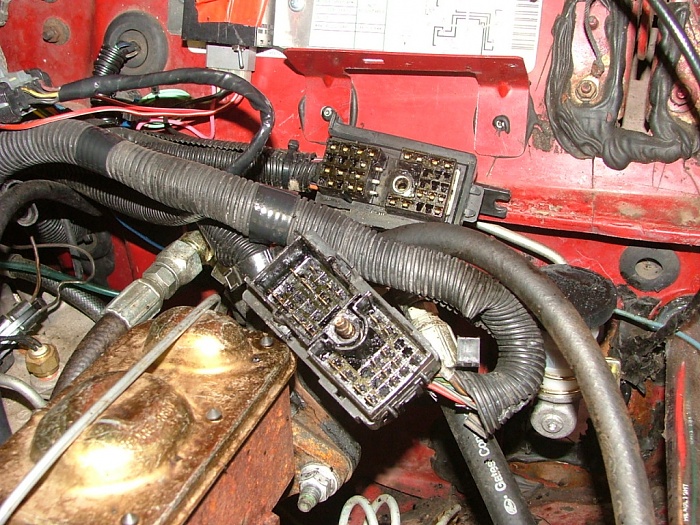

Not really. That's a different connector. The C101 is behind the brake booster and is just a connector from one part of the harness to another.
Attached Thumbnails XJ Ask the Question Thread-c101-connector1.jpg
Attached Images
cruiser54 is offline
Like
Old 02-16-2013, 08:17 PM
  #23857
Senior Member

theyammieguy's Avatar

Join Date: Apr 2009
Location: Houston Texas
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: I6
Default
Ah yes, I've read the renix threads about cleaning that. Forgot the name.
theyammieguy is offline
Like
Old 02-16-2013, 08:17 PM
  #23858
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by NewKindOfClown
Having trouble diagnosing a misfire/backfire, and problems are compounding. Started it up after work and it was idling at what sounded like 2k+ RPMs. Vacuum lines are all good. Tapped on the C101 a few times, and it dropped to the lowest and smoothest I've ever had it. Still backfiring, though.
Ever clean it per my instructions?
cruiser54 is offline
Like
Old 02-16-2013, 08:19 PM
  #23859
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by cruiser54

Not really. That's a different connector. The C101 is behind the brake booster and is just a connector from one part of the harness to another.
Right. I had the right part; wrong purpose in my head. I've wiped it down and sprayed it with electronics cleaner a while ago, but I haven't fully cleaned it. I figured I'd bypass if it isn't a problem, and then I wouldn't have to worry about it. Would you advise against that?
NewKindOfClown is offline
Like
Old 02-16-2013, 08:21 PM
  #23860
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by NewKindOfClown
Right. I had the right part; wrong purpose in my head. I've wiped it down and sprayed it with electronics cleaner a while ago, but I haven't fully cleaned it. I figured I'd bypass if it isn't a problem, and then I wouldn't have to worry about it. Would you advise against that?
Clean it per the instructions and tweak the female connectors tighter with a dental pick or the like.
cruiser54 is offline
Like
Old 02-16-2013, 08:24 PM
  #23861
CF Veteran

sycoglitch's Avatar

Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default
Originally Posted by NewKindOfClown

Try starting it with the shifter in Neutral. Easy NSS test.
Of the NSS is really bad he may need to push his shift level with a lil force towards the dash. Mine is gummed up bad and the only way to start is to hold the shifter forward. Eventually I need to remove and clean when the weather gets warn
sycoglitch is offline
Like
Old 02-16-2013, 08:24 PM
  #23862
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by cruiser54

Clean it per the instructions and tweak the female connectors tighter with a dental pick or the like.
Will do on Monday if the weather cooperates. Thanks.
NewKindOfClown is offline
Like
Old 02-16-2013, 08:26 PM
  #23863
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by sycoglitch

Of the NSS is really bad he may need to push his shift level with a lil force towards the dash. Mine is gummed up bad and the only way to start is to hold the shifter forward. Eventually I need to remove and clean when the weather gets warn
At first, I thought that was directed toward my high idle issue. I was gonna ask how I should push my column shifter towards the dash and what it would accomplish
NewKindOfClown is offline
Like
Old 02-16-2013, 08:30 PM
  #23864
CF Veteran

hick92's Avatar

Join Date: Nov 2012
Posts: 1,491
Likes: 0
Received 0 Likes on 0 Posts
Default
Originally Posted by sycoglitch

Of the NSS is really bad he may need to push his shift level with a lil force towards the dash. Mine is gummed up bad and the only way to start is to hold the shifter forward. Eventually I need to remove and clean when the weather gets warn
My nss is dirty sometimes it needs put in neutral to start it
hick92 is offline
Like
Old 02-16-2013, 08:34 PM
  #23865
CF Veteran

straightsixjeep's Avatar

Join Date: Aug 2012
Location: ks
Posts: 1,539
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default
You can try cycling the shifter from Park to 1st several times to help free the connector up.
