Old 05-10-2013, 05:18 PM
  #30466
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by ccooper1234
So its fine if I get a transmission cooler
Yes, it would help cool both systems.

There's one commonly used on ComancheClub. I don't recall the model, but you could search there.
NewKindOfClown is offline
Like
Old 05-10-2013, 05:20 PM
  #30467
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
OK I'll order one right now. I'm going to get the one that EricsXj used
ccooper1234 is offline
Like
Old 05-10-2013, 05:23 PM
  #30468
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
This one
http://www.jeepforum.com/forum/f11/r...oo-big-237898/
ccooper1234 is offline
Like
Old 05-10-2013, 05:26 PM
  #30469
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
I'm betting the radiator has poor flow.
cruiser54 is offline
Like
Old 05-10-2013, 05:29 PM
  #30470
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by cruiser54
I'm betting the radiator has poor flow.
I would assume so, but he doesn't want to change it.
NewKindOfClown is offline
Like
Old 05-10-2013, 05:31 PM
  #30471
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by NewKindOfClown
I would assume so, but he doesn't want to change it.
Alrighty then!! $110 radiator.
cruiser54 is offline
Like
Old 05-10-2013, 06:17 PM
  #30472
CF Veteran

94XjSport94's Avatar

Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like on 1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default
Most tranny coolers run in series returning to the transmission instead of before they enter the rad. Or at least that's how I did mine.
94XjSport94 is offline
Like
Old 05-10-2013, 06:27 PM
  #30473
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
Originally Posted by 94XjSport94
Most tranny coolers run in series returning to the transmission instead of before they enter the rad. Or at least that's how I did mine.
Got any pictures of install
ccooper1234 is offline
Like
Old 05-10-2013, 06:37 PM
  #30474
CF Veteran

94XjSport94's Avatar

Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like on 1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default
Originally Posted by ccooper1234

Got any pictures of install
Hold on

XJ Ask the Question Thread-image-1577141615.jpg

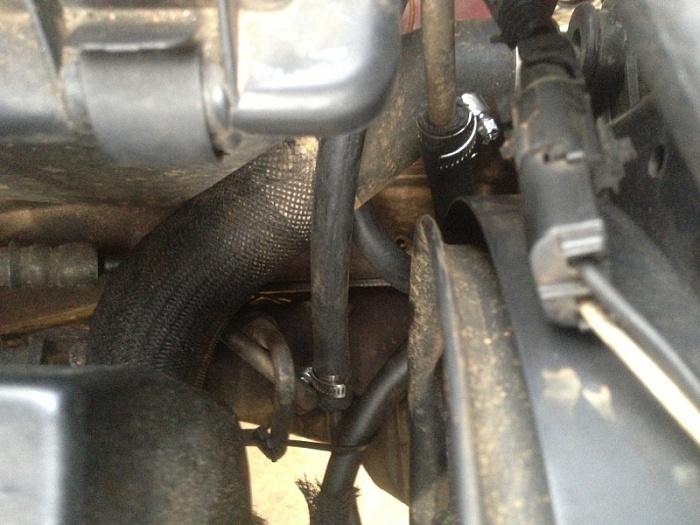

XJ Ask the Question Thread-image-3574007737.jpg

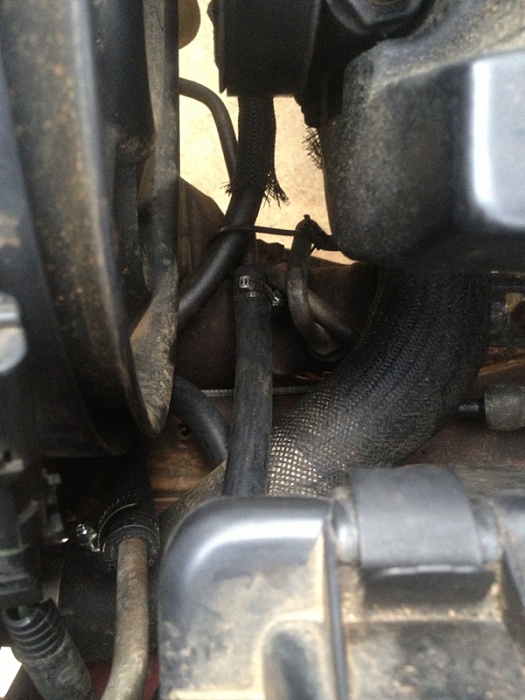

XJ Ask the Question Thread-image-3600109337.jpg

The hose running from the tranny line into the radiator on the top goes to the bottom of the aux cooler and then the too of the aux cooler returns to the tranny.
Last edited by 94XjSport94; 05-10-2013 at 06:40 PM.
94XjSport94 is offline
Like
Old 05-10-2013, 06:42 PM
  #30475
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
Also where would I install a transmission temperature sensor? Out line or return line?
ccooper1234 is offline
Like
Old 05-10-2013, 06:44 PM
  #30476
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
Originally Posted by 94XjSport94

Hold on

The hose running from the tranny line into the radiator on the top goes to the bottom of the aux cooler and then the too of the aux cooler returns to the tranny.
Wouldn't putting the output line on top and the return line on bottom be better do to gravity? Or by having it your way the fluid stays in the cooler longer to cool more
ccooper1234 is offline
Like
Old 05-10-2013, 06:48 PM
  #30477
CF Veteran

94XjSport94's Avatar

Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like on 1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default
Originally Posted by ccooper1234

Wouldn't putting the output line on top and the return line on bottom be better do to gravity? Or by having it your way the fluid stays in the cooler longer to cool more
Put a sensor on the return to transmission.

The line fills from the bottom to eliminate air pockets. I also put the cooler there so that when I run my e fan switch it pulls air across it
94XjSport94 is offline
Like
Old 05-10-2013, 06:49 PM
  #30478
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default
Originally Posted by 94XjSport94

Put a sensor on the return to transmission.

The line fills from the bottom to eliminate air pockets. I also put the cooler there so that when I run my e fan switch it pulls air across it
Oh OK that make sense.
ccooper1234 is offline
Like
Old 05-10-2013, 07:09 PM
  #30479
Senior Member

Eagle564's Avatar

Join Date: Nov 2012
Location: Oregon
Posts: 521
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default
Originally Posted by Eagle564

my tranny id plate says 30-43 LE. My chilton doesnt even say its an option? Made in japan?
Anyone? Just curious.
Eagle564 is offline
Like
Old 05-10-2013, 07:20 PM
  #30480
CF Veteran

94XjSport94's Avatar

Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like on 1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default
Originally Posted by Eagle564

Anyone? Just curious.
If you have an auto it's an AW4. Post a picture of the tranny-mine says the same thing
94XjSport94 is offline
Like
