XJ Ask the Question Thread
Member
Join Date: Aug 2012
Location: Denver, CO
Posts: 124
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0
Trust me don't do it, I disconnected my battery wile the engine was running trying to sort out high voltage issues. It blew out my head lights (like a camera flash) and wiper motor in the 2 seconds I disconnected the battery cable with the engine running. Funny thing is wipers and headlights were off at the time. My high voltage issue ended up being the neutral safety switch on the transmission being full of mud causing a ecu to overcharge the battery and output 19 volts at idle. Replaced ecu, alternator, battery, tore out all the wiring harnesses and transmission neutral switch was the last thing I checked. Cleaned out the mud, filled with die-electric grease and no issues since.
Trust me don't do it, I disconnected my battery wile the engine was running trying to sort out high voltage issues. It blew out my head lights (like a camera flash) and wiper motor in the 2 seconds I disconnected the battery cable with the engine running. Funny thing is wipers and headlights were off at the time. My high voltage issue ended up being the neutral safety switch on the transmission being full of mud causing a ecu to overcharge the battery and output 19 volts at idle. Replaced ecu, alternator, battery, tore out all the wiring harnesses and transmission neutral switch was the last thing I checked. Cleaned out the mud, filled with die-electric grease and no issues since.
CF Veteran
Join Date: May 2011
Location: Glendale,Az
Posts: 1,458
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
Any of the renix gurus I have some questions.......
1988 Xj 4.0 4x4
I've been trying to get my a/c vents to work properly. While idling in any gear with A/C (ON HIGH MAX) I get pretty hard pressure out the dash vents facing the passengers AND the defrost vents. Under just about any throttle it slows drastically down on the passenger vents and blows pretty hard out of the defrost vents.

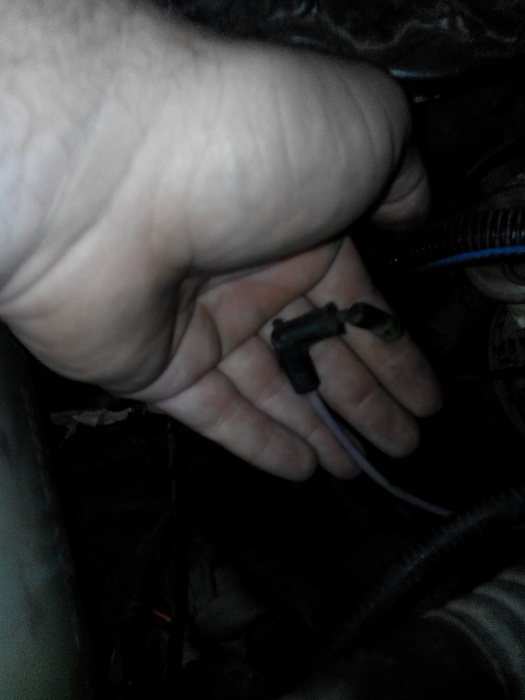

I started looking under the hood at the firewall. There is 2 plastic lines coming out of the firewall. One was a purple color and the other one is black and goes all the to the vacuum ball. On mine the purple line was plugged with a screw and the black line had a hairline crack near the firewall. I plugged the hairline crack and still had the same issues with the vents.

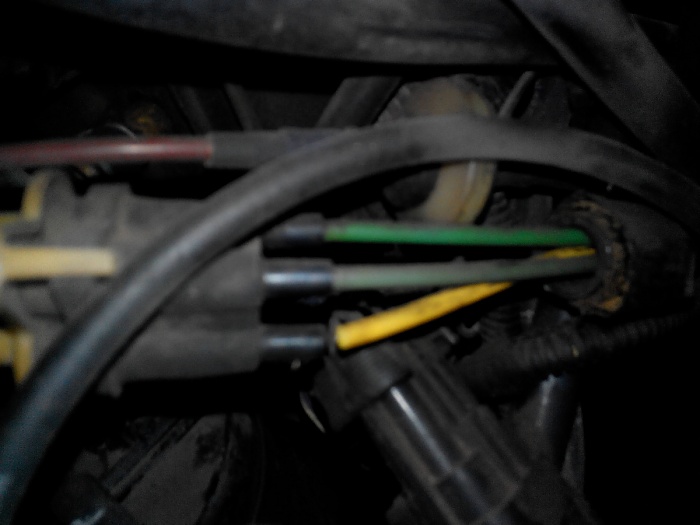

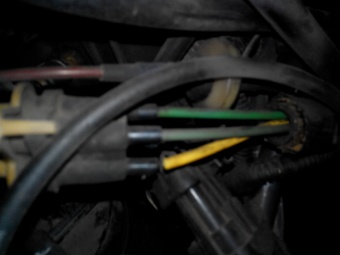

Also I see there is several colored vacuum lines going down to the axle I think. (Pics included). The yellow line is cracked right at the rubber grommet.
Here are my questions:
Does anyone have pictures of where the factory vacuum lines go for the A/C?
Where does the purple plastic line from the firewall go?
Would the yellow plastic line that's broke effect my A/C at all or just the vacuum actuated 4x4?
Any and all help is appreciated. Sorry for the bad pics.
1988 Xj 4.0 4x4
I've been trying to get my a/c vents to work properly. While idling in any gear with A/C (ON HIGH MAX) I get pretty hard pressure out the dash vents facing the passengers AND the defrost vents. Under just about any throttle it slows drastically down on the passenger vents and blows pretty hard out of the defrost vents.
I started looking under the hood at the firewall. There is 2 plastic lines coming out of the firewall. One was a purple color and the other one is black and goes all the to the vacuum ball. On mine the purple line was plugged with a screw and the black line had a hairline crack near the firewall. I plugged the hairline crack and still had the same issues with the vents.
Also I see there is several colored vacuum lines going down to the axle I think. (Pics included). The yellow line is cracked right at the rubber grommet.
Here are my questions:
Does anyone have pictures of where the factory vacuum lines go for the A/C?
Where does the purple plastic line from the firewall go?
Would the yellow plastic line that's broke effect my A/C at all or just the vacuum actuated 4x4?
Any and all help is appreciated. Sorry for the bad pics.
CF Veteran
Join Date: May 2011
Location: Glendale,Az
Posts: 1,458
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl

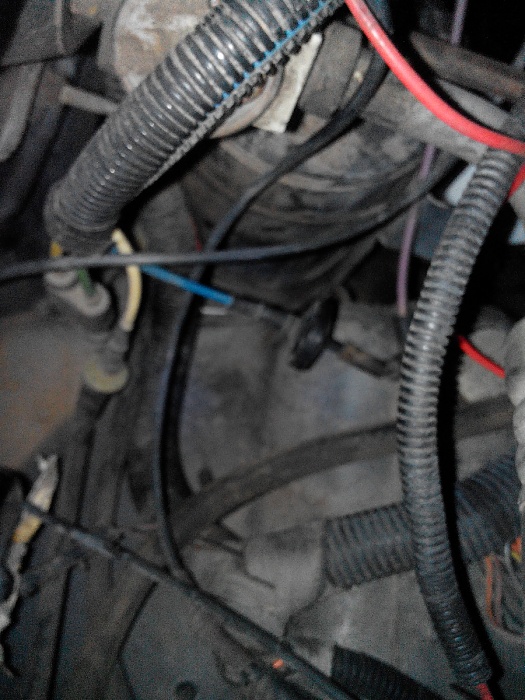

The blue line in the pictures is also disconnected. I just plugged it into the purple one to see if it had any change during my tests.
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Purple to heater control valve.
All those others are for your front axle disconnect.
All those others are for your front axle disconnect.
Re: Overhead Console Install
Found one in good condition and want to put it in my '01 XJ. However, the wiring for it was cut before the fusebox and the harnesses are not available and the temp sensor is not included.
How hard will this be to wire into my Jeep (I assume I won't be able to find the actual harnesses anywhere)?
Where can I get the Temp sensor as it isn't included?
Thanks,
Jamie
Found one in good condition and want to put it in my '01 XJ. However, the wiring for it was cut before the fusebox and the harnesses are not available and the temp sensor is not included.
How hard will this be to wire into my Jeep (I assume I won't be able to find the actual harnesses anywhere)?
Where can I get the Temp sensor as it isn't included?
Thanks,
Jamie
CF Veteran
Join Date: May 2013
Location: Washington, MO
Posts: 1,056
Likes: 0
Received 2 Likes
on
2 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Newbie
Join Date: Sep 2012
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 2.5l
Okay, so we have no spark and (possibly) no fuel. I've sprayed starter spray into the carb while trying to start the jeep but there was no change. This makes sense if there is no spark. After all, the starter spray needs a spark too! lol This would also, for the moment, set aside the possibility of a fuel problem since the engine should have at least started for a moment or two from the spray start. (If I can get the spark and it still doesn't start then we would then move to the fuel system for troubleshooting, correct?) So the question is: would a bad CPS cause a no spark? Thankfully, it's no hard to get to.
Junior Member
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Anyone have a link to replace just the CV joint on a front driveshaft? Everything I'm finding is for the ball in the double cardan joint. My ***** are fine.
Looks like you can get the temp sensor from an auto parts store for $15 or so. Is the part alone enough (ie is there a bracket I need from a donor jeep or anything)?
Thanks!
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Er, the ball is the only "special" part of the CV shaft. There are 3 U joints, the centering ball, and the slip yoke. What part are you talking about?
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
CF Veteran
Join Date: May 2011
Location: Glendale,Az
Posts: 1,458
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
cruiser remember when we discussed that I completely closed that screw on the side of the tb? You said if I closed it off and Its idling perfect then I'm getting air from somewhere else. Hopefully I'll notice a change in idle afterwards and I'll back that screw out a bit?
Senior Member
Join Date: Apr 2013
Location: Hahira,Ga
Posts: 663
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 I6
I want to night shade my tails, corners, and blinkers. While I had em off, and since I had a blown bulb I Was wandering if I need one of those LED resistors? If so can someone link a walk through? I believe it'll flash like a epileptic crack addict without it. And where do I get the bulb numbers?
