Old 01-14-2014, 06:35 AM
  #38881
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by salad
Can you obtain a voltage reading across the battery terminals at idle with a multimeter?
I can.
cruiser54 is offline
Like
Old 01-14-2014, 07:59 AM
  #38882
Senior Member

Houston Kid's Avatar

Join Date: Aug 2012
Location: Clear Lake, TX
Posts: 583
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999 Jeep Cherokee
Model: Cherokee
Engine: 4.0
Default
Originally Posted by bulrid8
I meant to make sure it was leaking there. Not tear it down just to do chain.

If it is leaking, yes replace it. Do cover gasket and front seal. Since you will have it apart anyway.

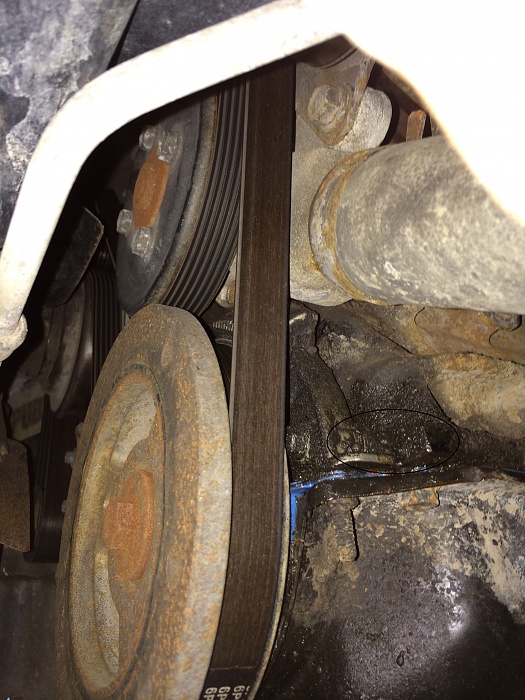

I am pretty confident it is leaking from either the seal or gasket on the cover. I have a new oil pan gasket, I did the oil filter adapter mod, I have a brand new valve cover gasket and all of those are not leaking. There is oil leaking from just above the front of the oil pan right behind the timing cover. I tired to take a pic and it shows the area some. Both sides look about the same as far as how much is leaking in the same place.
Attached Thumbnails XJ Ask the Question Thread-photo-2.jpg   XJ Ask the Question Thread-photo-4.jpg   XJ Ask the Question Thread-photo-1-1-.jpg   XJ Ask the Question Thread-photo-3.jpg
Last edited by Houston Kid; 01-14-2014 at 08:04 AM.
Houston Kid is offline
Like
Old 01-14-2014, 08:46 AM
  #38883
Seasoned Member

bulrid8's Avatar

Join Date: May 2012
Location: Ware Shoals, SC
Posts: 436
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0L
Default
Yeah, it looks like it is leaking there. Pull cover replace gasket, seal and might as well do chain and gears, since you have it off.

Since down that far, I would replace water pump too. Save doing it later.
bulrid8 is offline
Like
Old 01-14-2014, 09:38 AM
  #38884
Junior Member

Bignicky420's Avatar

Join Date: Dec 2013
Location: Salt Lake City, Utah
Posts: 35
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 in-line 6
Default
Originally Posted by cruiser54
You've actually cleaned the terminals/posts at the battery, right? What about the other end of the cables?

Also, try removing that braided ground cable from the firewall. Scrape the area under it to bare metal. Add a 4 gauge cable from there to the intake manifold, leaving the braided cable there also.

From my "Tips" link


A suggestion regarding the braided cable:
I prefer to add a #4 Gauge cable from the firewall to a bolt on the rear of the intake manifold, either to a heat shield bolt or fuel rail bolt. A cable about 18” long with a 3/8” lug on each end works great and you can get one at any parts store already made up. Napa has them as part number 781116.
I have cleaned the posts and cables at the battery. But not the other end. I will try that! So your thinking it's just a bad connection at the ground somewhere the right?
Bignicky420 is offline
Like
Old 01-14-2014, 09:40 AM
  #38885
Junior Member

Bignicky420's Avatar

Join Date: Dec 2013
Location: Salt Lake City, Utah
Posts: 35
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 in-line 6
Default
Originally Posted by salad
Can you obtain a voltage reading across the battery terminals at idle with a multimeter?
I will try that when I get home from work as well and get some readings for you guys. Thanks!
Bignicky420 is offline
Like
Old 01-14-2014, 12:44 PM
  #38886
Member

kevin96xx's Avatar

Join Date: Aug 2013
Location: Long Island
Posts: 145
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default
hey guys, i no the lift and tires i want to put on my xj but ive seen xj`s with the same lift and tires but they are sitting at diferent heights. what makes them sit higher or lower than each other? im still learning about all this and i want to get the most height i possibly can out of the lift i want.
kevin96xx is offline
Like
Old 01-14-2014, 01:55 PM
  #38887
Seasoned Member

tuff99's Avatar

Join Date: Nov 2012
Posts: 285
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default
Originally Posted by kevin96xx
hey guys, i no the lift and tires i want to put on my xj but ive seen xj`s with the same lift and tires but they are sitting at diferent heights. what makes them sit higher or lower than each other? im still learning about all this and i want to get the most height i possibly can out of the lift i want.
depends if the kit is spacers and add a leaf vs new coils and full leaf pack. With stock springs and spacers/ drop shackles it could sit at many different heights depending on how worn out the springs are that's why you should buy all new springs with your kit
tuff99 is offline
Like
Old 01-14-2014, 02:15 PM
  #38888
Member

kevin96xx's Avatar

Join Date: Aug 2013
Location: Long Island
Posts: 145
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default
Originally Posted by tuff99
depends if the kit is spacers and add a leaf vs new coils and full leaf pack. With stock springs and spacers/ drop shackles it could sit at many different heights depending on how worn out the springs are that's why you should buy all new springs with your kit
i plan on getting the 3.5 RE lift with the new leaf springs and new coils so will that give me a good height?
kevin96xx is offline
Like
Old 01-14-2014, 02:22 PM
  #38889
CF Veteran

tssguy123's Avatar

Join Date: Oct 2012
Location: Canton, GA
Posts: 2,314
Likes: 0
Received 3 Likes on 1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
Default
Originally Posted by kevin96xx
i plan on getting the 3.5 RE lift with the new leaf springs and new coils so will that give me a good height?
It should, yes. IIRC their 3.5" rear springs give closer to 4.5" when brand new and then settle down over time. But, this question is better suited for this thread.

Also, whether or not the person has a 97+ or pre 97 XJ can affect how tall the lift looks, because the flares are different. Same for trimmed/untrimmed fenders.
tssguy123 is offline
Like
Old 01-14-2014, 02:33 PM
  #38890
Member

kevin96xx's Avatar

Join Date: Aug 2013
Location: Long Island
Posts: 145
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default
Originally Posted by tssguy123
It should, yes. IIRC their 3.5" rear springs give closer to 4.5" when brand new and then settle down over time. But, this question is better suited for this thread.

Also, whether or not the person has a 97+ or pre 97 XJ can affect how tall the lift looks, because the flares are different. Same for trimmed/untrimmed fenders.
well my xj sits decently high for being stock so then im guessing it should get a decent height. thanks for help.
kevin96xx is offline
Like
Old 01-14-2014, 02:55 PM
  #38891
CF Veteran

tssguy123's Avatar

Join Date: Oct 2012
Location: Canton, GA
Posts: 2,314
Likes: 0
Received 3 Likes on 1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
Default
Originally Posted by kevin96xx
well my xj sits decently high for being stock so then im guessing it should get a decent height. thanks for help.
it won't matter what height it sits now, since you're installing full leaf packs and not add a leaf...
tssguy123 is offline
Like
Old 01-14-2014, 05:40 PM
  #38892
CF Veteran

884x4's Avatar

Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Likes: 0
Received 2 Likes on 2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Default
Is this stock? It got in the way of putting my door speakers behind me lower dash where tweeters would have been. It was bolted right up under the factory fog light switch area
1988 jeep Cherokee Laredo4x4


XJ Ask the Question Thread-forumrunner_20140114_173916.jpg



XJ Ask the Question Thread-forumrunner_20140114_173925.jpg

That big connector goes to it
The jeep started and went in drive without it so I'm thinking its some kind of anti theft device?
884x4 is offline
Like
Old 01-14-2014, 07:46 PM
  #38893
CF Veteran

884x4's Avatar

Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Likes: 0
Received 2 Likes on 2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Default
Originally Posted by 884x4
Is this stock? It got in the way of putting my door speakers behind me lower dash where tweeters would have been. It was bolted right up under the factory fog light switch area
1988 jeep Cherokee Laredo4x4

That big connector goes to it
The jeep started and went in drive without it so I'm thinking its some kind of anti theft device?
I think I found out what it is guys, I'm pretty sure that's the cruise control module.
884x4 is offline
Like
Old 01-14-2014, 08:19 PM
  #38894
CF Veteran

XJGrason's Avatar

Join Date: Aug 2010
Location: Fountain Inn, SC
Posts: 1,085
Likes: 0
Received 3 Likes on 3 Posts
Year: 1988
Model: Comanche (MJ)
Engine: I6 4.0L
Default
is $275 a good deal for a d44 outta an 89 xj a good deal?
XJGrason is offline
Like
Old 01-14-2014, 08:21 PM
  #38895
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes on 12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default
Is it a rusty heap of trash or does it have brakes? What gears? And what tires do you want to run?

My last C8.25 I got for $90...
salad is offline
Like
