XJ Ask the Question Thread
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Sorry to interrupt the debate but I am getting ready to replace the oil sending unit. Should I go with MOPAR on that our is a NAPA brand fine? Doing a tune up while I am in there and going to replace the distributor gasket as well. If anyone has any words of wisdom on that it would be appreciated.
I have no experience with the distributor gasket.
Seasoned Member
Join Date: Oct 2013
Location: Idaho
Posts: 376
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 Liter
So I replaced my window regulator yesterday and the motor works well and it slides well on the tracks but when I roll it up it won't roll up the last 1/4 into the seal at the top of the door. Any ideas on what to look for? Thanks guys
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes
on
36 Posts
Year: 1999
Engine: 4.0
loosen the bolts holding the glass and push it up and tighten it.
CF Veteran
Join Date: Aug 2012
Location: ks
Posts: 1,539
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I know a lot of people do not care for the Dana 30 front axle but I want to do a cheap upgrade to it anyway because I will probably never wheel hard enough to justify putting in an axle built for a tank.
I was reading IRO's website about axle shafts and they offer an OEM heavy duty Dana 30 front axle shaft assembly that comes out of a 95 or newer cherokee. That makes it sound like the axle shafts out of 94 and older are not as strong?
I have a 98 so I figured my axle shafts must be the same thing that IRO is offering? Which means I already have a semi-upgraded axle shaft with a 297X u-joint. This is what I am thinking after reading the info on their website. I could be wrong.
Anyway, they offer a Spicer 5- 760X u-joint for the front axle assembly and these Almost Alloy caps that weld on over the top of each u-joint cap. According to the website this will help prevent axle shaft failure by preventing the u-joints from coming apart. According to IRO, the axle shaft failure occurs after the u-joints have failed.
Am I reading all of this correctly and if so would you consider this a budget upgrade with the new 5- 760 u-joints and almost alloy caps?
I just ordered my new gears and will be adding a Lokka to the Dana 30 when I have it tore down. While I have the axle shafts pulled out I figured I might as well put in stronger u-joints and these almost alloy caps if it is considered an upgrade.
Sorry this is so long winded.
I was reading IRO's website about axle shafts and they offer an OEM heavy duty Dana 30 front axle shaft assembly that comes out of a 95 or newer cherokee. That makes it sound like the axle shafts out of 94 and older are not as strong?
I have a 98 so I figured my axle shafts must be the same thing that IRO is offering? Which means I already have a semi-upgraded axle shaft with a 297X u-joint. This is what I am thinking after reading the info on their website. I could be wrong.
Anyway, they offer a Spicer 5- 760X u-joint for the front axle assembly and these Almost Alloy caps that weld on over the top of each u-joint cap. According to the website this will help prevent axle shaft failure by preventing the u-joints from coming apart. According to IRO, the axle shaft failure occurs after the u-joints have failed.
Am I reading all of this correctly and if so would you consider this a budget upgrade with the new 5- 760 u-joints and almost alloy caps?
I just ordered my new gears and will be adding a Lokka to the Dana 30 when I have it tore down. While I have the axle shafts pulled out I figured I might as well put in stronger u-joints and these almost alloy caps if it is considered an upgrade.
Sorry this is so long winded.
CF Veteran
Join Date: Feb 2011
Location: Georgia
Posts: 1,048
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2004
Model: Grand Cherokee (WJ)
Engine: 4.0 Inline 6
Correct pre95' dana 30's have 260x (small) u-joints and 95'+ dana 30's have 297x (big) u-joints. If you have the skills to weld I would suggest you look into the dana 30 axle shaft full circle clip snap ring upgrade. Under load the u-joint caps spin and spit out the half moon retaining clip. There's two ways to fix that, full circle snap ring clips or weld those alloy caps over the end. Those caps are a good idea but it would be a pain to have to grind and reweld everytime you change a u-joint. For the full circle clips you can either buy high dollar aftermarket shaft ready for the clips or you can grind a small portion of your stock axle shafts to accept full circle clips. Thats what I did after I had a 297x u-joint explode taking the inner and outer shafts with it. Havn't had a problem since. http://rebelchapter4x4.com/forums/vi...php?f=22&t=323
Did you replace your u-joints with Spicer 5-760x?
CF Veteran
Join Date: Sep 2012
Location: grove city OHIO
Posts: 1,169
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 HO
ok so im installing my lift and i had to cut the track bar out. but i need to turn the Jeep around so that i can start on the rear. my question, is it ok to do two sharp 180* turns to turn it around. or will it over stress the control arms and such.
CF Veteran
Join Date: Sep 2012
Location: grove city OHIO
Posts: 1,169
Likes: 0
Received 5 Likes
on
5 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 HO
☠ CF Sheriff ☠
Use a couple ratchet straps then. You don't stand a chance of getting it turned around otherwise. Turning the steering wheel will just move the axle side to side.
CF Veteran
Join Date: Aug 2012
Location: ks
Posts: 1,539
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Your going to want 1 3/16" OD circle clip/snap rings. I found mine locally at Fastenal hardware, you can source them easily online.

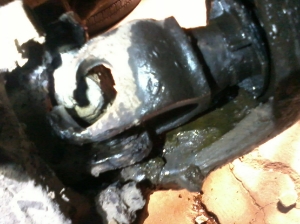

Here is my Moog 297x u-joint after an attempt in a rock garden on 33" tires (sheared all 4 legs of the u-joint off and snapped inner/outer shafts)-
Pulled a 95'+ axle shaft from the junkyard, ground the ears of the shafts and put it together. I feel that the snap rings are easier to install/remove than the half moon oem clips. Under stress the caps can spin and spit out the factory clips like mentioned before. Now with full circle clips the u-joint caps can spin all day long and the clips will hold them in.

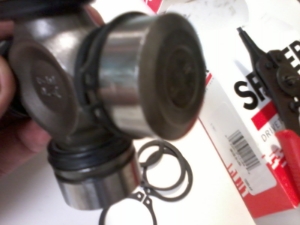

Spicer 5-760x dana 30 u-joints with 1 3/16 full circle clips.
Edit: If you google dana 30 or dana 44 u-joint clips there's a lot of threads mentioning places to buy. Looks like Napa auto even has them. External Retaining Ring Napa Part# 1345 (Snap Ring Shaft Diameter : 1 3/16").
Last edited by straightsixjeep; 03-24-2014 at 07:53 PM.
CF Veteran
Join Date: Feb 2011
Location: Georgia
Posts: 1,048
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2004
Model: Grand Cherokee (WJ)
Engine: 4.0 Inline 6
Glad to help, this forum has been there for me so I help out when I can.
Your going to want 1 3/16" OD circle clip/snap rings. I found mine locally at Fastenal hardware, you can source them easily online.
Here is my Moog 297x u-joint after an attempt in a rock garden on 33" tires (sheared all 4 legs of the u-joint off and snapped inner/outer shafts)-
Pulled a 95'+ axle shaft from the junkyard, ground the ears of the shafts and put it together. I feel that the snap rings are easier to install/remove than the half moon oem clips. Under stress the caps can spin and spit out the factory clips like mentioned before. Now with full circle clips the u-joint caps can spin all day long and the clips will hold them in.
Spicer 5-760x dana 30 u-joints with 1 3/16 full circle clips.
Edit: If you google dana 30 or dana 44 u-joint clips there's a lot of threads mentioning places to buy. Looks like Napa auto even has them. External Retaining Ring Napa Part# 1345 (Snap Ring Shaft Diameter : 1 3/16").
Your going to want 1 3/16" OD circle clip/snap rings. I found mine locally at Fastenal hardware, you can source them easily online.
Here is my Moog 297x u-joint after an attempt in a rock garden on 33" tires (sheared all 4 legs of the u-joint off and snapped inner/outer shafts)-
Pulled a 95'+ axle shaft from the junkyard, ground the ears of the shafts and put it together. I feel that the snap rings are easier to install/remove than the half moon oem clips. Under stress the caps can spin and spit out the factory clips like mentioned before. Now with full circle clips the u-joint caps can spin all day long and the clips will hold them in.
Spicer 5-760x dana 30 u-joints with 1 3/16 full circle clips.
Edit: If you google dana 30 or dana 44 u-joint clips there's a lot of threads mentioning places to buy. Looks like Napa auto even has them. External Retaining Ring Napa Part# 1345 (Snap Ring Shaft Diameter : 1 3/16").
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Glad to help, this forum has been there for me so I help out when I can.
Your going to want 1 3/16" OD circle clip/snap rings. I found mine locally at Fastenal hardware, you can source them easily online.
Here is my Moog 297x u-joint after an attempt in a rock garden on 33" tires (sheared all 4 legs of the u-joint off and snapped inner/outer shafts)-
Pulled a 95'+ axle shaft from the junkyard, ground the ears of the shafts and put it together. I feel that the snap rings are easier to install/remove than the half moon oem clips. Under stress the caps can spin and spit out the factory clips like mentioned before. Now with full circle clips the u-joint caps can spin all day long and the clips will hold them in.
Spicer 5-760x dana 30 u-joints with 1 3/16 full circle clips.
Edit: If you google dana 30 or dana 44 u-joint clips there's a lot of threads mentioning places to buy. Looks like Napa auto even has them. External Retaining Ring Napa Part# 1345 (Snap Ring Shaft Diameter : 1 3/16").
Your going to want 1 3/16" OD circle clip/snap rings. I found mine locally at Fastenal hardware, you can source them easily online.
Here is my Moog 297x u-joint after an attempt in a rock garden on 33" tires (sheared all 4 legs of the u-joint off and snapped inner/outer shafts)-
Pulled a 95'+ axle shaft from the junkyard, ground the ears of the shafts and put it together. I feel that the snap rings are easier to install/remove than the half moon oem clips. Under stress the caps can spin and spit out the factory clips like mentioned before. Now with full circle clips the u-joint caps can spin all day long and the clips will hold them in.
Spicer 5-760x dana 30 u-joints with 1 3/16 full circle clips.
Edit: If you google dana 30 or dana 44 u-joint clips there's a lot of threads mentioning places to buy. Looks like Napa auto even has them. External Retaining Ring Napa Part# 1345 (Snap Ring Shaft Diameter : 1 3/16").
CF Veteran
Join Date: Aug 2012
Location: ks
Posts: 1,539
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I haven't had a single issue. Don't get crazy with the angle grinder, just grind down the shaft lip so there's a flat surface for the circle clip to sit flush on the inside of the axle shaft ear.
CF Veteran
Join Date: Feb 2009
Location: Houston Tx.
Posts: 2,203
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
So I'm going to the dealership tomorrow to have them replace my ignition key cylinder, I'm bracing myself for when the parts guys gives me the outrageous quote for parts and labor.
Anyone have an idea how much it will be?
Anyone have an idea how much it will be?
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Best $8 upgrade ever. Throw 760x's in at the same time = super beef.
I haven't had a single issue. Don't get crazy with the angle grinder, just grind down the shaft lip so there's a flat surface for the circle clip to sit flush on the inside of the axle shaft ear.
I haven't had a single issue. Don't get crazy with the angle grinder, just grind down the shaft lip so there's a flat surface for the circle clip to sit flush on the inside of the axle shaft ear.
