Is it a factory switch or something you added?
The lights are getting 12 volts and a ground. Thats why they work.
The lights are getting 12 volts and a ground. Thats why they work.
I just added them, knock off KC lights. I just need the power to stop going to them when I turn the key off so my battery doesnt die. I wired it all straight to the battery.
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output

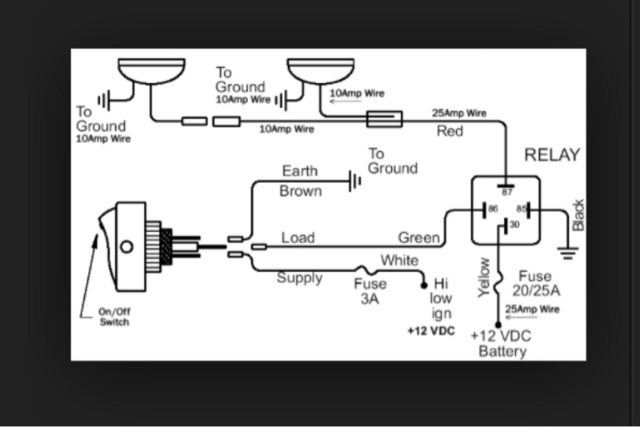

Take the wire off the battery, buy a 40amp relay, wire the relay in correctly. Find a circuit from your fuse box that is switched 12v and make that your signal wire to the relay. The relay will need 12v constant (can be from a switched source, a 12v switched signal (look in your fuse box), a ground, and an output leg to the lights.
Google how to wire lights. There are plenty of youtube videos.
CF Veteran
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
Thats why you are still getting power to the switch. You should wire the lighting through a relay and an acc Power source for the switch.
CF Veteran
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
CF Veteran
Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
From these patterns, pinion depth looks ok, but that will change once you carrier shims move around. Needs to be more centered in the toe and heel.
Looks like the drive side is just making contact with the top of the pinion tooth, needs to be a flatter contact area like your coast side.
This chart came in my Yukon install kits.
I think you are in the pinion too shallow area.
http://img512.imageshack.us/img512/4...atternsqd6.jpg
You think another pinion shim will flatten the drive side tooth contact a bit?
Ohhhhh ok, it just made sense. I ended up running the relay straight to the battery and the switch to the fuse on my fusebox that was labeled "auxilerry lights/fog lights/etc" and now it works just fine. Thanks guys.
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
You know the shims are different thicknesses, right?
Last edited by 94XjSport94; 05-24-2014 at 01:06 PM.
Junior Member
Join Date: May 2014
Location: Spring Branch, Tx.
Posts: 74
Likes: 0
Received 1 Like
on
1 Post
Year: 96
Model: Cherokee
Engine: 4.0l I6
96 xj aw4. I'm wanting to do the basic fluid change without dropping the pan but I've read if you mix the dex/merc and atf+4 it could be bad and I don't know what the PO used. I believe he used wally world (tires are from there) for service and from searching seems a lot of places will tell you to use the atf+4 (thanks CF for the right info ). I don't seem to have any slipping issues, although I did experience the slips in drive but not if I start in 1/2 (which from searching seems to be a tps issue that makes it go into limp mode). Any way to tell which atf is in there or do I just hope he used the dex/merc and proceed with the basic fluid change? Thx in advance.
