Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.
Old 09-21-2015, 03:49 PM
How-Tos on this Topic
Last edit by: IB Advertising
See related guides and technical advice from our community experts:

Browse all: General Overview
Print Wikipost

XJ Ask the Question Thread

Thread Tools

Search this Thread

Old 06-16-2014, 07:11 AM
  #43576
CF Veteran

DieselD's Avatar

Join Date: Apr 2011
Location: Indianapolis
Posts: 4,825
Likes: 0
Received 2 Likes on 2 Posts
Year: '99 and '91
Model: Cherokee
Default

Originally Posted by sycoglitch

Last time ive dealt with something as you described it, it was the joints in the steering shaft itself. A guy had hit a pothole so bad it screwed them bad. Same symptoms, turn wheel it be easy the hard the easy again. It wouldn't happen with just the pitman connected because the tires it what makes it work harder.

You're saying it happens only when the pitman arm is connected to the drag link right?
It did it with all steering connected, this was first time I noticed it, but I had just connected everything and didn't align it because I drove it across the street to get gas and back. Then it did same thing with nothing connected to pitman arm. Now it still does it with nothing connected and a different steering box.

I think you're right it has to be the joints in the shaft or something involving the shaft.
DieselD is offline
Old 06-16-2014, 10:21 AM
  #43577
CF Veteran

884x4's Avatar

Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Likes: 0
Received 2 Likes on 2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Default

I think the steering box stops the steering wheel if the steering stops on the axle don't...
If you pull your drag link off you can turn your pitman arm by hand then something abruptly stops the pitman arm.
I assume the steering box stops it and not something in the column or shaft
884x4 is offline
Old 06-16-2014, 11:32 AM
  #43578
CF Veteran

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes on 36 Posts
Year: 1999
Engine: 4.0
Default

Check to see if nothing get in the way of the steering shaft joints when u turn it.

When I bought my jeep from a junkyard, it was in a collision and the front end was smashed in. The power steering hoses (metal parts) was bent far enough that it interfered with the rotational movement of the steering shaft.
XJwonders is offline
Old 06-16-2014, 05:55 PM
  #43579
Junior Member

joeogio's Avatar

Join Date: Jul 2010
Location: Tn
Posts: 40
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default

my cherokee will start and run fine till it gets up to operating temperature then it doesn't want to idle if will putter below 500 then die out, there is also a little surging in the low rpm range up till about 1200. i have replaced the iac, tps, fuel injectors, battery, plug wires and distributor cap and button, fuel filter, any ideas what could be causing my problem?
ive also tried cleaning out the throttle body

Last edited by joeogio; 06-16-2014 at 05:57 PM. Reason: more information
joeogio is offline
Old 06-16-2014, 10:00 PM
  #43580
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by joeogio
my cherokee will start and run fine till it gets up to operating temperature then it doesn't want to idle if will putter below 500 then die out, there is also a little surging in the low rpm range up till about 1200. i have replaced the iac, tps, fuel injectors, battery, plug wires and distributor cap and button, fuel filter, any ideas what could be causing my problem?
ive also tried cleaning out the throttle body
Replaced all those parts....But have you done a good tune-up with plugs, ? Done Tips 1,3,4, and 5 in my link below?
cruiser54 is offline
Old 06-16-2014, 10:14 PM
  #43581
Senior Member

LawDog9's Avatar

Join Date: Apr 2012
Location: Huntsville, Tn
Posts: 638
Likes: 0
Received 0 Likes on 0 Posts
Year: Different Years (I have several XJ's)
Model: Cherokee
Engine: 4.0 HO
Default

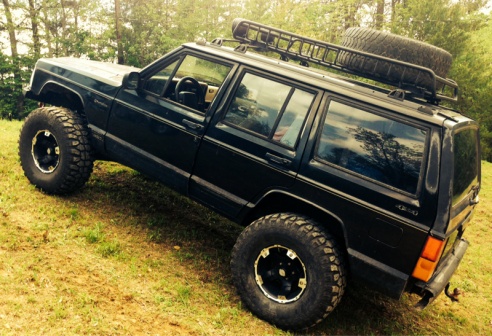

Anyone know of a good gutter mount system to mount this Yakima roof rack using gutter mounts instead of the flimsy oem crossbars?


XJ Ask the Question Thread-image-3563606977.jpg
LawDog9 is offline
Old 06-16-2014, 10:15 PM
  #43582
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by LawDog9
Anyone know of a good gutter mount system to mount this Yakima roof rack using gutter mounts instead of the flimsy oem crossbars?


Attachment 246005
These guys might be able to guide you.

http://www.yakima.com/fit/Information
cruiser54 is offline
Old 06-17-2014, 01:07 AM
  #43583
CF Veteran

DFlintstone's Avatar

Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 18 Likes on 18 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

Another option is to add more crossbars.
DFlintstone is offline
Old 06-17-2014, 01:59 AM
  #43584
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

I saw an early 90s XJ today with a 2.5L and OEM tow hitch. Was that even an option from the factory?
NewKindOfClown is offline
Old 06-17-2014, 05:11 AM
  #43585
Member

HappyPappy's Avatar

Join Date: Feb 2012
Posts: 124
Likes: 0
Received 2 Likes on 2 Posts
Model: Cherokee
Default

Originally Posted by NewKindOfClown
I saw an early 90s XJ today with a 2.5L and OEM tow hitch. Was that even an option from the factory?
It's all in the gear ratio!!! Once knew a guy that used a HUDSON FOR HIS TOW VEHICLE. Don't know what kind of rear it had, but it got the job done!!
HappyPappy is offline
Old 06-17-2014, 05:16 AM
  #43586
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes on 12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by NewKindOfClown
I saw an early 90s XJ today with a 2.5L and OEM tow hitch. Was that even an option from the factory?
I don't think many hitches were "factory", per se, but you could get whatever you wanted as a dealer-installed option.
salad is offline
Old 06-17-2014, 07:16 AM
  #43587
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

They had factory hitches back then.

With a 4 cylinder? Maybe not.
cruiser54 is offline
Old 06-17-2014, 09:42 AM
  #43588
kgm
CF Veteran

kgm's Avatar

Join Date: Oct 2013
Location: Denver
Posts: 1,589
Likes: 0
Received 1 Like on 1 Post
Year: 99
Model: Cherokee
Engine: 4.0
Default

Looking at replacing all my cooling system before it fails on me in the mountains randomly.

Gates is pretty solid for waterpumps? I know they make good belts, typically. Also just looking for an OEM 2 row rad, I see them for ~$80 on rockauto. What else should I replace, the upper & lower hose, new coolant, new t-stat (motorad, correct?) Anything else? Then just fill er up with distilled water and the green goodness?

I am going to probably drain it and try to spray out the heater core. When I first got it, a garage told me my rad was starting to seep so I figure its not worth doing a drain on the coolant without replacing it.
kgm is offline
Old 06-17-2014, 10:23 AM
  #43589
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,123
Received 20 Likes on 19 Posts
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by kgm
Looking at replacing all my cooling system before it fails on me in the mountains randomly.

Gates is pretty solid for waterpumps? I know they make good belts, typically. Also just looking for an OEM 2 row rad, I see them for ~$80 on rockauto. What else should I replace, the upper & lower hose, new coolant, new t-stat (motorad, correct?) Anything else?
'Water pump inlet tube' will likely need to be replaced also.
SteveMongr is offline
Old 06-17-2014, 04:58 PM
  #43590
CF Veteran

michaelOH's Avatar

Join Date: Sep 2012
Location: grove city OHIO
Posts: 1,169
Likes: 0
Received 5 Likes on 5 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 HO
Default

anyone know the measurements for the stock bump stops? i need how far the end of the bumpstop, is from the bottom part of the mount(for said bumpstop) for the front.
and the distance from the bottom of the "Frame" to the bottom of the bump stop in the rear...

measuring for bump stops without any bump stops...
michaelOH is offline
