Old 07-10-2014, 11:40 AM
  #44161
Newbie

Branches's Avatar

Join Date: Jul 2014
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default
Originally Posted by Branches
OK - thanks to this picture I was able to find the drip hose, pull it off and clean it and also clean the path through the firewall. The hose on my XJ was slightly different. It was the same size, but it dropped along side of the frame.

I will report back on whether this resolved the issue. Thanks!
Problem solved - no more a/c water leaks. Here is a link to the picture of the drain hose on my 1996 XJ

https://www.flickr.com/photos/heybak...n/photostream/
Branches is offline
Like
Old 07-10-2014, 11:44 AM
  #44162
CF Veteran

EZEARL's Avatar

Join Date: Aug 2009
Location: WV
Posts: 5,676
Received 298 Likes on 253 Posts
Year: '96
Model: Cherokee
Default
YES! (arm pumping up and down)

Actually that's a fairly common problem.
EZEARL is offline
Like
Old 07-10-2014, 11:45 AM
  #44163
CF Veteran

VTJeep's Avatar

Join Date: Jul 2010
Location: 802
Posts: 4,930
Likes: 0
Received 3 Likes on 3 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Default
Ok, so after replacing that broke dizzy cap it fired right up and ran smooth. Till it started running rough and threw the CEL for the upstream o2. It does this often, but everything is new- ECM, o2, TPS, IAC.. When I got the headers in they had to extend the o2 wires. Maybe an issue there. I unplugged the o2 and nothing happened, no CEL. What gives?..
VTJeep is offline
Like
Old 07-10-2014, 11:52 AM
  #44164
CF Veteran

EZEARL's Avatar

Join Date: Aug 2009
Location: WV
Posts: 5,676
Received 298 Likes on 253 Posts
Year: '96
Model: Cherokee
Default
Maybe a bad connection where the extended the O2 wires. Or wires damaged on the header.
EZEARL is offline
Like
Old 07-10-2014, 12:05 PM
  #44165
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,123
Received 20 Likes on 19 Posts
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default
Originally Posted by ITTs_Cole
Is there anything that could leak oil near/under the left side of the radiator? It doesnt smell like coolant, its too light to be oil, and the power steering or brake level isn't moving either.
The nose usually knows. Soak some up on a paper towel, fluid will show it's true color. Sniff for confirmation.
SteveMongr is offline
Like
Old 07-10-2014, 03:00 PM
  #44166
Senior Member

crabmushrooms5's Avatar

Join Date: May 2012
Location: Fayetteville, NC
Posts: 651
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default what is this broken piece?
It sits right under the expansion valve on the firewall. It comes from the cab side of the firewall to the engine side. Appears to be black plastic.
Don't mind the water drops I was spraying off the engine
Last edited by crabmushrooms5; 07-10-2014 at 04:01 PM.
crabmushrooms5 is offline
Like
Old 07-10-2014, 03:24 PM
  #44167
CF Veteran

EZEARL's Avatar

Join Date: Aug 2009
Location: WV
Posts: 5,676
Received 298 Likes on 253 Posts
Year: '96
Model: Cherokee
Default
My '96 has a screw with a nut on it coming out of that hole.
EZEARL is offline
Like
Old 07-10-2014, 03:25 PM
  #44168
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,123
Received 20 Likes on 19 Posts
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default
^ That is a bolt hole for the blower motor. I believe there is three of them.
SteveMongr is offline
Like
Old 07-10-2014, 03:31 PM
  #44169
CF Veteran

EZEARL's Avatar

Join Date: Aug 2009
Location: WV
Posts: 5,676
Received 298 Likes on 253 Posts
Year: '96
Model: Cherokee
Default
For the mounting of it?
EZEARL is offline
Like
Old 07-10-2014, 03:39 PM
  #44170
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,123
Received 20 Likes on 19 Posts
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default
Originally Posted by EZEARL
For the mounting of it?
Yes, mounts through firewall, harness and connections are inside cab.
SteveMongr is offline
Like
Old 07-10-2014, 03:45 PM
  #44171
CF Veteran

EZEARL's Avatar

Join Date: Aug 2009
Location: WV
Posts: 5,676
Received 298 Likes on 253 Posts
Year: '96
Model: Cherokee
Default
Hmm. He's missing one then.
EZEARL is offline
Like
Old 07-10-2014, 03:57 PM
  #44172
Senior Member

crabmushrooms5's Avatar

Join Date: May 2012
Location: Fayetteville, NC
Posts: 651
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

I took it to the dealership for an evaporator core and some other work. Never again, still finding easter eggs
crabmushrooms5 is offline
Like
Old 07-10-2014, 04:10 PM
  #44173
CF Veteran

VTJeep's Avatar

Join Date: Jul 2010
Location: 802
Posts: 4,930
Likes: 0
Received 3 Likes on 3 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Default

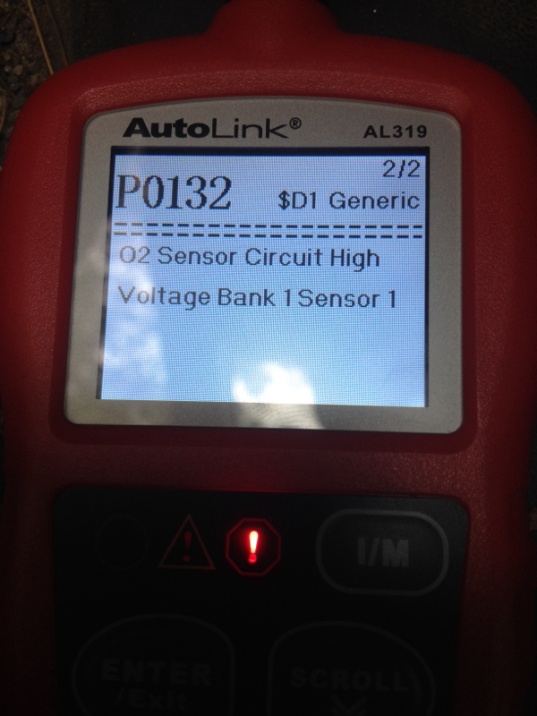

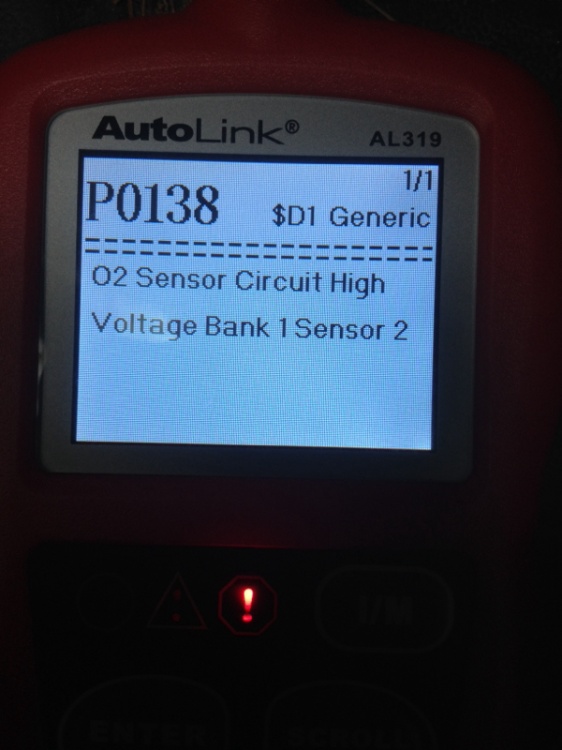

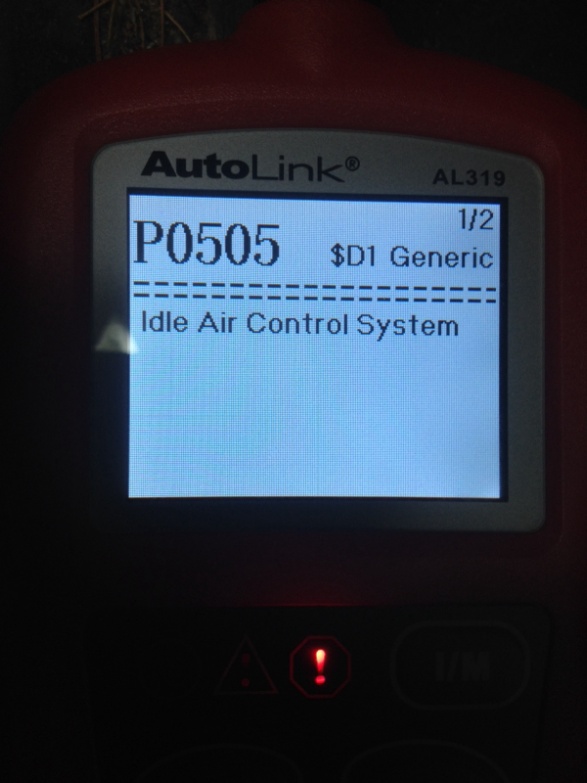

WTF?! Now I'm getting a IAC code along with both o2 sensors reading the circuits are high.. Idles ok now, was rough, haven't gotten up to speed to see if it's still stuttering under top gear acceleration. I've refreshed grounds, I've replaced everything. Unplugging upstream o2 still makes no difference in idle. I need your input and advice guys, I'm getting super frustrated with this thing..

The bank 1 sensor 2 code is pending, the other two are stored codes. Thanks fellas.
Attached Thumbnails XJ Ask the Question Thread-image-1483972539.jpg   XJ Ask the Question Thread-image-3424502679.jpg   XJ Ask the Question Thread-image-3959578125.jpg
VTJeep is offline
Like
Old 07-10-2014, 04:18 PM
  #44174
CF Veteran

EZEARL's Avatar

Join Date: Aug 2009
Location: WV
Posts: 5,676
Received 298 Likes on 253 Posts
Year: '96
Model: Cherokee
Default
Can't remember. Did you replace your IAC? If not did you do an ohms test on it.
EZEARL is offline
Like
Old 07-10-2014, 05:20 PM
  #44175
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes on 12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default
PCM ground by the dipstick tube by any chance?

First thing to always check with O2S high voltage code is for a chewed or melted wiring harness.
salad is offline
