Old 08-08-2014, 11:07 AM
  #44821
Member

canada_man's Avatar

Join Date: Oct 2012
Location: Manitoba
Posts: 248
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Does anybody have a good write-up for the re1801 hack n tap install. I've searched but seems like the recommended links have been removed or moved on most forums. Just looking for some good tips that will help make the install smoother. I'm installing it on a 90 xj with 4.5" zone lift and np242
canada_man is offline
Old 08-08-2014, 01:25 PM
  #44822
☠ CF Sheriff ☠

dukie564's Avatar

Join Date: Nov 2009
Location: Aberdeen, MD
Posts: 15,197
Received 17 Likes on 13 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Once you cut the shaft to the proper length, center punch the middle, start the truck and engage reverse, and slowly drill with plenty of cutting oil.
dukie564 is offline
Old 08-08-2014, 02:00 PM
  #44823
CF Veteran

sycoglitch's Avatar

Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

No instructions are needed really. When i did my IRO, i left the staft at 1.5" long give or take, forgot aTM, and have a good grinder blade and goggles. Took me 15 mins to cut straight through without the TC spinning. Worked better with everything stopped. Just get good drilling oil and really good drill bits. Have extras
sycoglitch is offline
Old 08-08-2014, 04:45 PM
  #44824
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Likes: 0
Received 7 Likes on 7 Posts
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by canada_man
Does anybody have a good write-up for the re1801 hack n tap install. I've searched but seems like the recommended links have been removed or moved on most forums. Just looking for some good tips that will help make the install smoother. I'm installing it on a 90 xj with 4.5" zone lift and np242
I did everything save for tapping with the shaft spinning in reverse. Keeps your cut square with the shaft, and your drill somewhat centered. I even center punched it while spinning. I had a dewalt 4.5" cutting wheel on my grinder and didnt even put a dent in the wheel. Tapping took the longest, make sure you clean your tap, and use a magnetic tip screwdriver to clean out the hole. Easy peasy.

Last edited by JerrytheJeep; 08-08-2014 at 04:49 PM.
JerrytheJeep is offline
Old 08-08-2014, 05:05 PM
  #44825
Member

Wolf427's Avatar

Join Date: Jul 2014
Location: Mississauga, Ontario
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0l I6
Default

So my coolant temp sensor inside the cylinder head was damaged. Tried removing it, broke it in half. The threads are left in the head, and a bolt remover wont pull it out. Any ideas?
Wolf427 is offline
Old 08-08-2014, 05:09 PM
  #44826
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by Wolf427
So my coolant temp sensor inside the cylinder head was damaged. Tried removing it, broke it in half. The threads are left in the head, and a bolt remover wont pull it out. Any ideas?
What kind of bolt remover? You do know that the hole is at an angle, right?
cruiser54 is offline
Old 08-08-2014, 05:19 PM
  #44827
Member

Wolf427's Avatar

Join Date: Jul 2014
Location: Mississauga, Ontario
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0l I6
Default

Originally Posted by cruiser54
What kind of bolt remover? You do know that the hole is at an angle, right?
The reverse spiral bit style. I figured, the bolt remover was in on an angle.
I used a combo wrench to try turning it, and I broke them. 7mm snap-on. I don't have the handle to use with it, so I tried the box end of the combo wrench.
Wolf427 is offline
Old 08-08-2014, 09:28 PM
  #44828
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default

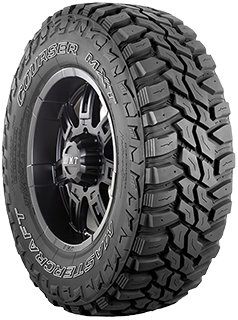

Anyone running Mastercraft Courser MXT? not sure how good they are, can get them for $780 installed. Any better tires I should look into before getting these?
Attached Images
ccooper1234 is offline
Old 08-08-2014, 09:31 PM
  #44829
CF Veteran

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes on 16 Posts
Year: My Jeep is a GMC
Default

Originally Posted by ccooper1234
Anyone running Mastercraft Courser MXT? not sure how good they are, can get them for $780 installed. Any better tires I should look into before getting these?
Better for what or why?
Turbo X_J is offline
Old 08-08-2014, 09:34 PM
  #44830
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default

Originally Posted by Turbo X_J
Better for what or why?
Need a decent tire for sand and mud
ccooper1234 is offline
Old 08-08-2014, 10:20 PM
  #44831
CF Veteran

sycoglitch's Avatar

Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by ccooper1234
Anyone running Mastercraft Courser MXT? not sure how good they are, can get them for $780 installed. Any better tires I should look into before getting these?
I've been looking at those. Nice thread pattern plus sipping.
sycoglitch is offline
Old 08-08-2014, 10:39 PM
  #44832
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default

I heard that they had a 2 ply sidewall and aren't very durable. So I'm conflicted on what tires to get. What about Goodyear MTR Kevlars?
ccooper1234 is offline
Old 08-08-2014, 11:03 PM
  #44833
CF Veteran

sycoglitch's Avatar

Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes on 4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by ccooper1234
I heard that they had a 2 ply sidewall and aren't very durable. So I'm conflicted on what tires to get. What about Goodyear MTR Kevlars?
Hear good things about kevlars. Didn't know the coursers were 2ply. I was also looking at the federal couragia mt.
sycoglitch is offline
Old 08-09-2014, 01:07 AM
  #44834
CF Veteran

DESERTXJ206's Avatar

Join Date: May 2011
Location: Glendale,Az
Posts: 1,458
Likes: 0
Received 2 Likes on 2 Posts
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
Default

Originally Posted by cruiser54

Coolant leaking into cylinders cleans the carbon off pistons.

Remember our threads about removing carbon from an engine using water?

Video Link: https://www.youtube.com/watch?v=bv4a3k-6Z4w
Thats what I thought, but the dirty ones looked funky. Thanks for the advice again. Time to do a head gasket when it cools down! This phx heat sucks! It wouldnt be so bad if I didnt have to work outside all day then come home to do a big job like HG in the same heat.
DESERTXJ206 is offline
Old 08-09-2014, 05:00 AM
  #44835
Junior Member

UltimateEnthusiasts's Avatar

Join Date: Aug 2014
Location: British Columbia
Posts: 40
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

98 XJ, 4.0L
When driving, Some times the throttle will kick out.. Motor begins to die.. But if i let off the gas and tap on the peddle a few times she revs back up and drives fine.
(also, the gas peddle also kind of locks up?) tps?
Does this sound like a fuel pump issue? I dont have any dash lights on. I replaced both 02's to see if it made a difference, but nothing.
Thanks.
UltimateEnthusiasts is offline
