09-21-2015, 03:49 PM
Last edit by: IB Advertising
See related guides and technical advice from our community experts:
Browse all: General Overview
- Jeep Grand Cherokee WJ 1999 to 2004 Crash Test and Safety Ratings
Important Information to help you understand your Jeep Grand Cherokee.
Browse all: General Overview
XJ Ask the Question Thread
08-24-2014, 03:30 PM
Junior Member
Join Date: Mar 2013
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
What is the maintenance interval of a drain and fill for trans fluid? Should I drop the pan if its never been serviced and inspect it and replace the filter/strainer?
When dropping an oil pan, what are a few things one would want to look at or look for? Is there a torque sequence or torque lbs rating for the pan bolts?
When dropping an oil pan, what are a few things one would want to look at or look for? Is there a torque sequence or torque lbs rating for the pan bolts?
The dipstick tube is ATTACHED to the pan... I hung onto it for all I was worth to dislodge it... If it aint leaking... leave it... It has a drain plug.. drain and fill until its nice and cherry looking... it took me about 6 changovers b/c the oil had not been changed often enough.
ATF is cheap insurance.. when the oil wears out it causes slippage.. ATF is supposed to maintain friction to prevent slippage... Good Luck....Kirk out...
08-24-2014, 04:33 PM
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
What is the maintenance interval of a drain and fill for trans fluid? Should I drop the pan if its never been serviced and inspect it and replace the filter/strainer?
When dropping an oil pan, what are a few things one would want to look at or look for? Is there a torque sequence or torque lbs rating for the pan bolts?
When dropping an oil pan, what are a few things one would want to look at or look for? Is there a torque sequence or torque lbs rating for the pan bolts?
08-24-2014, 05:41 PM
Moderator CF K9-unit
Join Date: Apr 2012
Location: Alaska
Posts: 5,842
Likes: 0
Received 9 Likes
on
8 Posts
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
08-24-2014, 06:41 PM
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Photo stolen and filed away. Thanks Duma.
08-24-2014, 07:00 PM
Moderator CF K9-unit
Join Date: Apr 2012
Location: Alaska
Posts: 5,842
Likes: 0
Received 9 Likes
on
8 Posts
Year: 2000 sport
Model: Cherokee (XJ)
Engine: New 4.0l from s&j engines
08-25-2014, 11:33 AM
Seasoned Member
Join Date: Sep 2010
Location: Tallahassee, FL
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
I need to do a COMPLETE flush of my 4.0's coolant system. The conventional driveway method is not cutting it. Can someone explain the use of the block's drain plugs to me? I can't seem to find a write up or video.
08-25-2014, 04:48 PM
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
There's 2 of them on the driver's side of the block. 5/16" square drive.
08-25-2014, 05:08 PM
Beach Bum
08-25-2014, 06:00 PM
CF Veteran
Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
08-25-2014, 06:13 PM
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
08-25-2014, 06:19 PM
CF Veteran
Join Date: Nov 2013
Location: Wetumpka, AL
Posts: 1,347
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0
So after doing all my front and work and putting the new front tires on I've developed a slight wobble at around 35-45 mph. It goes away at any speed above or below that range. Its not bad, but I'm sure it will get worse if I don't address the problem. As far as what ive done to the front, is as follows: all new pads, rotors, upper and lower ball joints, hub assemblies, wheel u joints, tre's and rod, drag link, fixed lca's, 4.5" lift coils, f350 sway bar links with new bushings, steering stabilizer, and shocks. I'm getting an alignment done next week but my driveway alignment has the toe 1/8-1/4" inward so I'm good there. Tires where balanced when I had them put on Friday, and I'm running 26psi. Any ideas?
Edit: I guess its more of a shimmy than wobble, slight side to side shimmy in the steering, and you can feel it in the peddles as well.
Edit: I guess its more of a shimmy than wobble, slight side to side shimmy in the steering, and you can feel it in the peddles as well.
Last edited by drhoward1988; 08-25-2014 at 06:21 PM.
08-26-2014, 08:36 AM
CF Veteran
Join Date: Oct 2013
Location: Denver
Posts: 1,589
Likes: 0
Received 1 Like
on
1 Post
Year: 99
Model: Cherokee
Engine: 4.0
This is the exhaust manifold I want right? 99 4.0
http://www.1aauto.com/jeep-exhaust-m...6/i/1aeem00146
It's the dorman with flex pipe. I've heard reports of that all stainless one that's available and without flex pipes won't always fit right. I don't want to deal with that. Any other parts I need for this repair? Is there a gasket between the manifold and the mating piece of the downpipe?
http://www.1aauto.com/jeep-exhaust-m...6/i/1aeem00146
It's the dorman with flex pipe. I've heard reports of that all stainless one that's available and without flex pipes won't always fit right. I don't want to deal with that. Any other parts I need for this repair? Is there a gasket between the manifold and the mating piece of the downpipe?
08-26-2014, 08:39 AM
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
This is the exhaust manifold I want right? 99 4.0
http://www.1aauto.com/jeep-exhaust-m...6/i/1aeem00146
It's the dorman with flex pipe. I've heard reports of that all stainless one that's available and without flex pipes won't always fit right. I don't want to deal with that. Any other parts I need for this repair? Is there a gasket between the manifold and the mating piece of the downpipe?
http://www.1aauto.com/jeep-exhaust-m...6/i/1aeem00146
It's the dorman with flex pipe. I've heard reports of that all stainless one that's available and without flex pipes won't always fit right. I don't want to deal with that. Any other parts I need for this repair? Is there a gasket between the manifold and the mating piece of the downpipe?

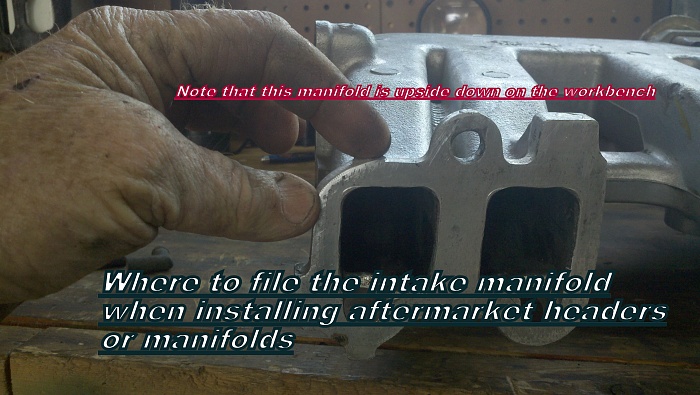

The issue is that the header collides with the intake manifold at the head. The solution is to take your time and file the intake manifold as needed. Easy 5 minute job.
