Old 10-16-2014, 06:31 PM
  #46081
CF Veteran

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes on 36 Posts
Year: 1999
Engine: 4.0
Default
Originally Posted by salad
Yes, 3.55:1 and up is the carrier break. It's only below that ratio that you need to be concerned (us guys with 3.07:1).
Are u sure? I thought 4.10 was the carrier break?
XJwonders is offline
Like
Old 10-16-2014, 06:49 PM
  #46082
CF Veteran

kuzican's Avatar

Join Date: Feb 2012
Location: Forest Hill, Maryland
Posts: 6,468
Likes: 0
Received 18 Likes on 14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
3.55 and down is one, 3.73 and up is the different carrier
kuzican is offline
Like
Old 10-16-2014, 07:03 PM
  #46083
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes on 12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default
Originally Posted by XJwonders
Are u sure? I thought 4.10 was the carrier break?
Originally Posted by kuzican
3.55 and down is one, 3.73 and up is the different carrier
Sorry Kuzican is right
salad is offline
Like
Old 10-16-2014, 07:07 PM
  #46084
CF Veteran

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes on 36 Posts
Year: 1999
Engine: 4.0
Default
Originally Posted by kuzican
3.55 and down is one, 3.73 and up is the different carrier
ah that make sense. Idk why I thought it was 4.10's.
XJwonders is offline
Like
Old 10-16-2014, 07:49 PM
  #46085
Member

canada_man's Avatar

Join Date: Oct 2012
Location: Manitoba
Posts: 248
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default

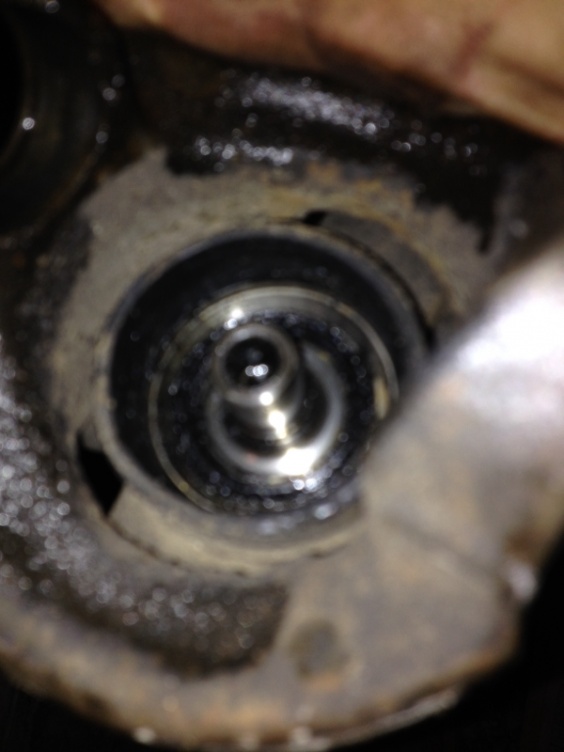

How do I attach the 211229x pinion flange to the double cardon. I removed the tc side u-joint on the shaft but can't seat the flangeinto the double cardon because of the small cylinder that the spring sits in.
Attached Thumbnails XJ Ask the Question Thread-image-2024284796.jpg
canada_man is offline
Like
Old 10-16-2014, 08:18 PM
  #46086
CF Veteran

ThatPurpleXJ's Avatar

Join Date: Sep 2012
Location: Springfield Virginia
Posts: 1,289
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default
Originally Posted by kuzican
3.55 and down is one, 3.73 and up is the different carrier
Hmm so it will work with the new carrier or no?
ThatPurpleXJ is offline
Like
Old 10-16-2014, 08:29 PM
  #46087
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Likes: 0
Received 7 Likes on 7 Posts
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default
Originally Posted by canada_man
How do I attach the 211229x pinion flange to the double cardon. I removed the tc side u-joint on the shaft but can't seat the flangeinto the double cardon because of the small cylinder that the spring sits in.
Pic of the other part? And better quality pic of the first?
JerrytheJeep is offline
Like
Old 10-16-2014, 08:30 PM
  #46088
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by ThatPurpleXJ
Hmm so it will work with the new carrier or no?
No
NewKindOfClown is offline
Like
Old 10-16-2014, 08:35 PM
  #46089
CJG
Junior Member

CJG's Avatar

Join Date: Mar 2012
Location: Pasadena, Ca.
Posts: 95
Received 6 Likes on 6 Posts
Year: 1990
Model: Cherokee
Engine: 2.5L 4-cyl.
Default
Thanks 884x4 and ITTs_Cole for the advice.

I may still give replacing the muffler myself a shot but I'm already getting grief from the girlfriend since I just had spinal surgery a few months ago and she's freaked about me sliding under the Jeep on my back to work. (I mean it's not like I'm going to climb under there and try to jack the Jeep up with my feet but she may have a point...)

Thanks again.

CJ
CJG is offline
Like
Old 10-16-2014, 08:48 PM
  #46090
CF Veteran

ThatPurpleXJ's Avatar

Join Date: Sep 2012
Location: Springfield Virginia
Posts: 1,289
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default
Originally Posted by NewKindOfClown
No
Sorry got to ask but then why don't lockers have options for what carrier you have? I figured an aussie, arb or powertrax will fit with any gears say 3.07, 3.73 or 4.56 even if the carrier is changed
ThatPurpleXJ is offline
Like
Old 10-16-2014, 08:53 PM
  #46091
Member

canada_man's Avatar

Join Date: Oct 2012
Location: Manitoba
Posts: 248
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Default
Originally Posted by JerrytheJeep
Pic of the other part? And better quality pic of the first?
No more pics needed I figured it out.
canada_man is offline
Like
Old 10-16-2014, 08:56 PM
  #46092
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by ThatPurpleXJ
Sorry got to ask but then why don't lockers have options for what carrier you have? I figured an aussie, arb or powertrax will fit with any gears say 3.07, 3.73 or 4.56 even if the carrier is changed
I've been told auto lockers don't care about gear ratio, but full case lockers like Detroit are dependant on carrier. I may be wrong, as I haven't personally installed a locker yet
NewKindOfClown is offline
Like
Old 10-16-2014, 09:17 PM
  #46093
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes on 12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default
Originally Posted by NewKindOfClown
I've been told auto lockers don't care about gear ratio, but full case lockers like Detroit are dependant on carrier. I may be wrong, as I haven't personally installed a locker yet
I'm going to say that this is correct for the following reasons:

- The difference between carriers is on account of the thicker ring gears/larger pinions.
- Spider gear sets are universal within a given axle. The internal dimensions don't change.
salad is offline
Like
Old 10-16-2014, 09:20 PM
  #46094
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Likes: 0
Received 7 Likes on 7 Posts
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default
Originally Posted by NewKindOfClown

I've been told auto lockers don't care about gear ratio, but full case lockers like Detroit are dependant on carrier. I may be wrong, as I haven't personally installed a locker yet
Full case lockers are the carrier.
JerrytheJeep is offline
Like
Old 10-16-2014, 09:23 PM
  #46095
Moderator of Jeeps

NewKindOfClown's Avatar

Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes on 3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default
Originally Posted by JerrytheJeep

Full case lockers are the carrier.
Okay, dependent on carrier BREAK. Better?
