XJ Ask the Question Thread
01-09-2015, 06:42 PM
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
01-09-2015, 06:55 PM
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
01-09-2015, 08:34 PM
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Kind of, except opposite. My hard line turns and aims towards the front of the Jeep, wraps 180 in a tight loop around the front of the perch, and then goes into the soft line. I drilled a hole in the soft line bracket to sit over the u bolt threads so I could make it 'stationary'.
I'll look and see if I can find a pic. My setup seemed to work for a while, but I am always open to better solutions lol.
I'll look and see if I can find a pic. My setup seemed to work for a while, but I am always open to better solutions lol.
See what I mean about wanting it going back and behind/under the perch? Also looking at the bump stops makes me wonder how they haven't crushed the line yet...
I was looking at stock XJ front driver's side brake hoses. An extra 9 inches I think... I wonder if it would be too much?
Also, sway bar is coming out. POS that it is lol.
01-09-2015, 09:05 PM
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Ok salad, as promised, pics from my build thread:
See what I mean about wanting it going back and behind/under the perch? Also looking at the bump stops makes me wonder how they haven't crushed the line yet...
I was looking at stock XJ front driver's side brake hoses. An extra 9 inches I think... I wonder if it would be too much?
Also, sway bar is coming out. POS that it is lol.
See what I mean about wanting it going back and behind/under the perch? Also looking at the bump stops makes me wonder how they haven't crushed the line yet...
I was looking at stock XJ front driver's side brake hoses. An extra 9 inches I think... I wonder if it would be too much?
Also, sway bar is coming out. POS that it is lol.
Yeah my lines don't go anywhere near there anymore.
01-09-2015, 09:15 PM
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
The other limiting factor on orienting these soft lines is the stupid 'block' construction of the caliper and hose ends. If the hose ends were more circular vise boxes, it would allow different angle articulation for proper bends.
I think I'll grab a stock front line and see how it goes. I really want to try and route the soft line against the top of the axle running behind the perch and maybe fab an easy bracket to bolt it in place. 9 inches shouldn't be too much I don't think.
Guinea pig status! Oh yeah!
01-09-2015, 09:19 PM
Senior Member
Join Date: Apr 2012
Location: Huntsville, Tn
Posts: 638
Likes: 0
Received 0 Likes
on
0 Posts
Year: Different Years (I have several XJ's)
Model: Cherokee
Engine: 4.0 HO
01-09-2015, 09:25 PM
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
My sentiments exactly!
The other limiting factor on orienting these soft lines is the stupid 'block' construction of the caliper and hose ends. If the hose ends were more circular vise boxes, it would allow different angle articulation for proper bends.
I think I'll grab a stock front line and see how it goes. I really want to try and route the soft line against the top of the axle running behind the perch and maybe fab an easy bracket to bolt it in place. 9 inches shouldn't be too much I don't think.
Guinea pig status! Oh yeah!
The other limiting factor on orienting these soft lines is the stupid 'block' construction of the caliper and hose ends. If the hose ends were more circular vise boxes, it would allow different angle articulation for proper bends.
I think I'll grab a stock front line and see how it goes. I really want to try and route the soft line against the top of the axle running behind the perch and maybe fab an easy bracket to bolt it in place. 9 inches shouldn't be too much I don't think.
Guinea pig status! Oh yeah!
01-09-2015, 09:27 PM
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
The bracket did pose its own obstructions. Another quick q... will there be risk adding 'soft' length in terms of braking ability? As in flex, etc? Also, how tight of a turn can brake hose make?
01-09-2015, 11:16 PM
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Hmm. How tight are we talking about here lol I would avoid a bend radius less than 2" for 180°
01-09-2015, 11:34 PM
Moderator of Jeeps
Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
01-10-2015, 02:01 PM
Seasoned Member
Join Date: Oct 2013
Location: Idaho
Posts: 376
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 Liter

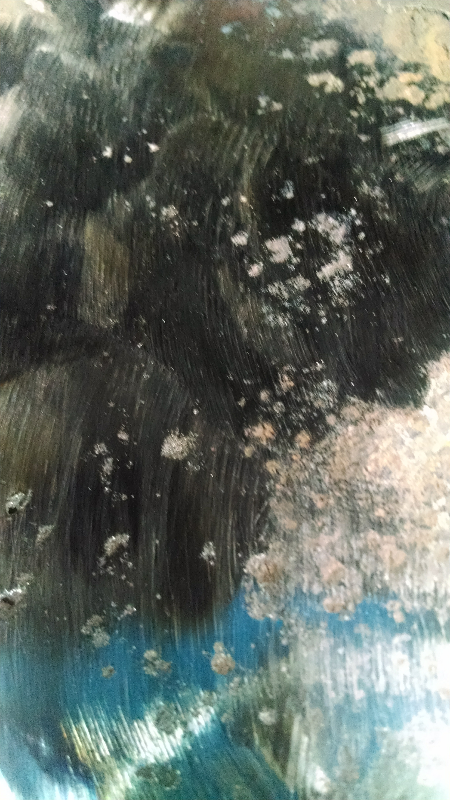

How should I take car of this on the floor? Do I need to try and smooth it out? I bed lined my floor last year and as you can see I need to do some touch ups because of the rust. I'll be bed lining it again but I was thinking I should try and clean it up more or something. I'd put down POR15 but its not available anywhere here so I'd have to order it.
01-10-2015, 02:09 PM
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
How should I take car of this on the floor? Do I need to try and smooth it out? I bed lined my floor last year and as you can see I need to do some touch ups because of the rust. I'll be bed lining it again but I was thinking I should try and clean it up more or something. I'd put down POR15 but its not available anywhere here so I'd have to order it.
If you don't want to do that, there are a number of products designed to "convert" or "melt" rust in pitted areas. Naval jelly, phosphoric acid, Rust Converter, etc generally react with the iron oxide and turn it into iron phosphate that you can just paint or bedline over.
01-10-2015, 06:43 PM
Newbie
Join Date: Aug 2012
Location: Fairchild AFB
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee

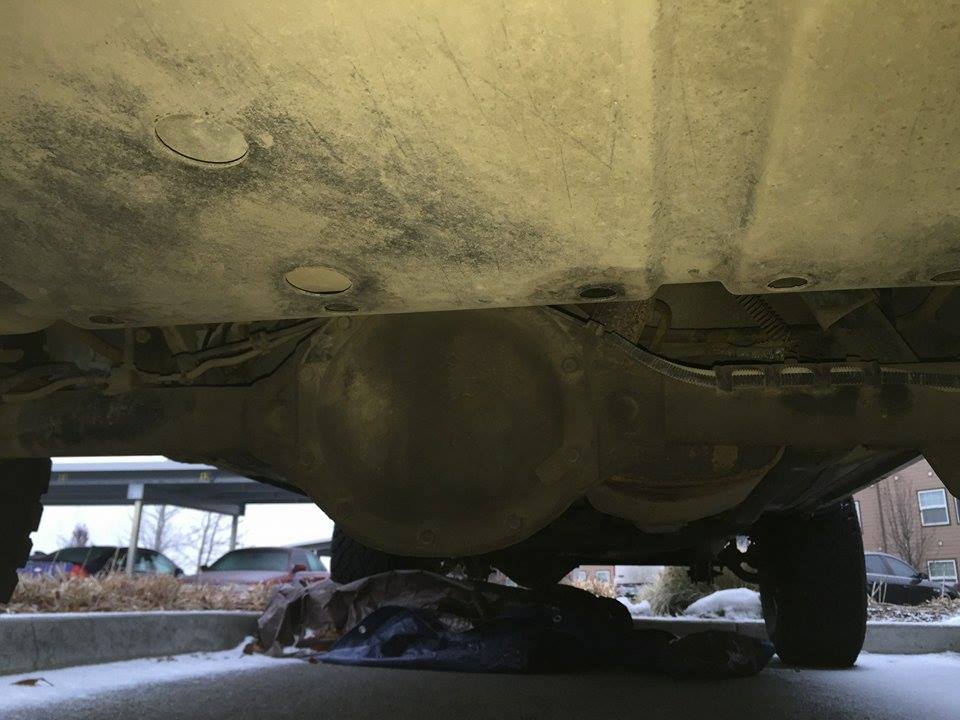

Axle type for lift kit.
I am currently deployed and want to order a lift kit to put on when I get home but I didnt remember what axle I have so I had the wife send me a picture. What axle do I have? I thought chrysler 8.25 but I dont see that familiar circle off to the right side.
