XJ Ask the Question Thread
CF Veteran
Join Date: Jul 2010
Location: 802
Posts: 4,930
Likes: 0
Received 3 Likes
on
3 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Junior Member
Join Date: Jul 2015
Location: Florida
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO
Can you turn the arm the connects wheel to steering box? Grab with a wrench and it if makes pops or grinds a bit then its bad. But it could be the end link. They are cheap
CF Veteran
Join Date: Jul 2010
Location: 802
Posts: 4,930
Likes: 0
Received 3 Likes
on
3 Posts
Year: 99
Model: Cherokee
Engine: 4.0
No, sorry. I was referring to the arm between the steering wheel and the steering box. It's about a half inch square steel bar. And if the box checks out then maybe the link is bad. With age all steering components are suspect to wear and can be a contributing factor in many issues.
Junior Member
Join Date: Jul 2015
Location: Florida
Posts: 93
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO
No, sorry. I was referring to the arm between the steering wheel and the steering box. It's about a half inch square steel bar. And if the box checks out then maybe the link is bad. With age all steering components are suspect to wear and can be a contributing factor in many issues.
Last edited by CAT_Tech2; 07-26-2015 at 09:34 PM.
CF Veteran
Join Date: Jul 2010
Location: 802
Posts: 4,930
Likes: 0
Received 3 Likes
on
3 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Oh okay and that's what I was thinking is its going to be a combination of everything. Thank you for your answers and any xj tie rod end will do for that drag link end? I just want to ask these questions first you know XD its weird how I can know so much about machinery but be completely clueless when it comes almost anything automotive
Last edited by VTJeep; 07-27-2015 at 06:18 AM.
Ask the Question Thread
Hey guys I'm back. I replaced my cps and it has stopped shutting off going down the road, but When i shut it off it want crank up unless I wiggle the cps connector. What could be causing this?
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
CF Veteran
Join Date: Mar 2012
Location: Quebec
Posts: 1,024
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0L
RPM bounces at highway speed (60-70 mph / 100-110 kmh), at around 2k. It will jump anywhere from 1,500 to a little above 2,000. One day it'll do it, the other it won't.
I already replaced the TPS a little over a year ago, but the issue persisted. It was throwing a code and went away after replacing, which makes me believe it's not another faulty TPS.
I have no clue if it can be related, but the TPS I had to get was from a 97, the little plastic thing that receives the throttle pin was angled differently in 96 and 97.
Idle is fine, it starts fine, in the city there's also no issues.
Any ideas
I already replaced the TPS a little over a year ago, but the issue persisted. It was throwing a code and went away after replacing, which makes me believe it's not another faulty TPS.
I have no clue if it can be related, but the TPS I had to get was from a 97, the little plastic thing that receives the throttle pin was angled differently in 96 and 97.
Idle is fine, it starts fine, in the city there's also no issues.
Any ideas
Last edited by Cane; 07-27-2015 at 10:14 AM.
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
RPM bounces at highway speed (60-70 mph / 100-110 kmh), at around 2k. It will jump anywhere from 1,500 to a little above 2,000. One day it'll do it, the other it won't.
I already replaced the TPS a little over a year ago, but the issue persisted. It was throwing a code and went away after replacing, which makes me believe it's not another faulty TPS.
I have no clue if it can be related, but the TPS I had to get was from a 97, the little plastic thing that receives the throttle pin was angled differently in 96 and 97.
Idle is fine, it starts fine, in the city there's also no issues.
Any ideas
I already replaced the TPS a little over a year ago, but the issue persisted. It was throwing a code and went away after replacing, which makes me believe it's not another faulty TPS.
I have no clue if it can be related, but the TPS I had to get was from a 97, the little plastic thing that receives the throttle pin was angled differently in 96 and 97.
Idle is fine, it starts fine, in the city there's also no issues.
Any ideas
CF Veteran
Join Date: Mar 2012
Location: Quebec
Posts: 1,024
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0L
And is this located on the pedal itself?
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

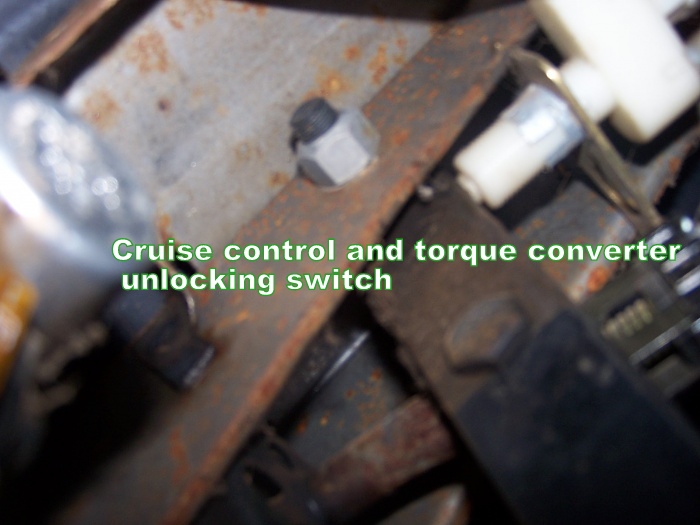

Absolutely. Located up near the pivot point of the pedal assembly. Here's a photo of an earlier model for reference:
CF Veteran
Join Date: Mar 2012
Location: Quebec
Posts: 1,024
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0L
And when you say adjust, is it by tightening it or what? Never been under there except for my headlight switch, so any insight will help
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Push the pedal down with your hand. Push the switch toward the pedal. Release the pedal. Shizam!! It's adjusted.
