XJ Ask the Question Thread
Newbie
Join Date: Sep 2015
Location: Southern California
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 6 cyl. 4.0L High Output
Oil leak, but I dont think it's from the pan
So I have an oil leak that is getting progressively worse. I just purchased a 91 Cherokee Laredo and I noticed the leak at the valve cover gasket. I replaced that. and it is still getting worse.
Recently I noticed that the oil pressure gauge was malfunctioning. Could it be that the hose, or something related to the oil pressure sensor could be leaking? Also, don't think it is the oil pan because the majority of the oil is not dripping off of the oil pan. It is coming off something behind it.
Recently I noticed that the oil pressure gauge was malfunctioning. Could it be that the hose, or something related to the oil pressure sensor could be leaking? Also, don't think it is the oil pan because the majority of the oil is not dripping off of the oil pan. It is coming off something behind it.
Moderator of Jeeps
Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Moderator of Jeeps
Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
So I have an oil leak that is getting progressively worse. I just purchased a 91 Cherokee Laredo and I noticed the leak at the valve cover gasket. I replaced that. and it is still getting worse.
Recently I noticed that the oil pressure gauge was malfunctioning. Could it be that the hose, or something related to the oil pressure sensor could be leaking? Also, don't think it is the oil pan because the majority of the oil is not dripping off of the oil pan. It is coming off something behind it.
Recently I noticed that the oil pressure gauge was malfunctioning. Could it be that the hose, or something related to the oil pressure sensor could be leaking? Also, don't think it is the oil pan because the majority of the oil is not dripping off of the oil pan. It is coming off something behind it.
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes
on
1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I'd be looking up ABOVE first, and VERIFYING the source of the oil leak YOURSELF.
Everybody, who doesn't own or have to pay for or perform your vehicle repairs, loves to poke their noggin UNDER the Jeep and come out bearing the false bad news that your RMS is leaking.
Many mechanics, friends, people on Jeep forums who can’t see your Jeep from where they’re at, and good old Uncle Bob seem to enjoy telling you it’s the rear main seal. Has a catastrophic ring to it, doesn’t it?
A simple leak at the back of the valve cover or other source could produce the same symptoms. You don’t need to be a mechanic to figure this out. If you have good eyesight and a dim flashlight, you’re good to go on your own. Don't jump on the RMS/oil pan gasket bandwagon right off the bat.
Almost any oil leak on your 4.0 is gonna drip from the RMS area for two simple reasons.
First off, the engine sits nose-up and any oil will run back to the RMS area. Secondly, the RMS area is also the lowest point on the engine. Simple physics and the old plumber's adage apply here. "$hit flows downhill".
Valve cover gasket, oil pressure sending unit, oil filter adapter seals and distributor gasket, in that order, have to be eliminated as possibilities first.
Revised 02-26-2013
CF Veteran
Join Date: Sep 2012
Location: Springfield Virginia
Posts: 1,289
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0

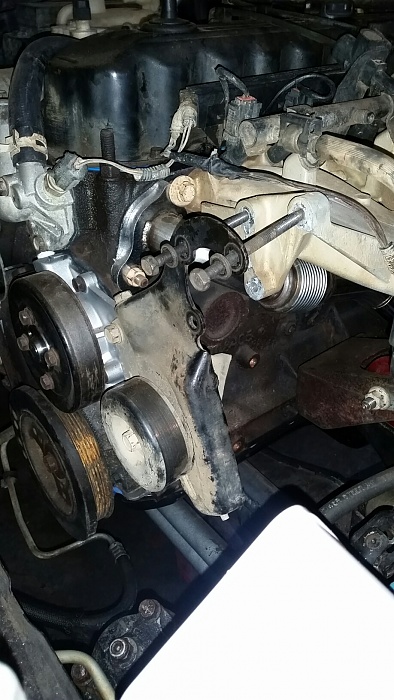

Swapping a 94 long block in my 98. Power steering pump bracket and water pump from a 98 and a 99+ intake. Why aren't my power steering bolts not lining up? Bracket isn't bent, intake is flush, cant imagine my new water pump was machines wrong either. I know the PS brackets changed throughout years but as far as I'm concerned the mounting should be the same
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes
on
36 Posts
Year: 1999
Engine: 4.0
Swapping a 94 long block in my 98. Power steering pump bracket and water pump from a 98 and a 99+ intake. Why aren't my power steering bolts not lining up? Bracket isn't bent, intake is flush, cant imagine my new water pump was machines wrong either. I know the PS brackets changed throughout years but as far as I'm concerned the mounting should be the same
CF Veteran
Join Date: Sep 2012
Location: Springfield Virginia
Posts: 1,289
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes
on
36 Posts
Year: 1999
Engine: 4.0
CF Veteran
Join Date: Sep 2012
Location: Springfield Virginia
Posts: 1,289
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Yeah I've had the intake for 3 years. Had it on the original engine then replaced with a 96 engine, still worked and now it doesn't on a 94 engine. The bracket is the same one I've used too.
Newbie
Join Date: Apr 2015
Location: Richmond, VA
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 L
So, I want to replace the front shocks on my 2000 XJ Sport which has the Up Country suspension package. Is it just the springs that give the 1" lift? Or do I have to be mindful when buying replacement shocks? Thanks!
Moderator of Jeeps
Join Date: Jul 2011
Location: Frederick, MD from Cleveland, OH
Posts: 21,029
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1993 YJ Wrangler
Engine: 4.0 I6
The springs are what give it the 1" of lift, but you will need 1" longer-than-normal shocks to match your suspension.
CF Veteran
Does anyone else have KOR's radiator support and think that the tow points should be for 5/8" shackles and have more clearance to the actual radiator? If a pull got sideways at all it would drag the shackle into the corner of the radiator. Should I be super concerned? There's what looks to be a metal corner guard is there room to remove that and have clearance or should I just be super careful if using the tow points? Plan to get steel bumpers with recovery points eventually but who knows how far off that is?
