Old 06-09-2016, 02:18 PM
  #54526
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by rcguymike
Ah. so a much better option for grounds, not so good idea for multi pin electrical connectors.
Correct.

De-Ox-It and OxGard go together like peas and carrots.
cruiser54 is offline
Like
Old 06-09-2016, 02:20 PM
  #54527
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by odgreen
Time to replace the fuse block and wire harness.
Go to the junk yard and pull the block and the harness slowly so you can see where it unplugged and goes. That will be the right way to fix it. Who ever said you can pull the terminals out is a Tard.
You sure about that tard comment?

I've got a fuse box sitting out in the garage.....
cruiser54 is offline
Like
Old 06-09-2016, 02:22 PM
  #54528
CF Veteran

odgreen's Avatar

Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Likes: 0
Received 8 Likes on 8 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default
Originally Posted by cruiser54

You sure about that tard comment?

I've got a fuse box sitting out in the garage.....
Was it you that said that?
odgreen is offline
Like
Old 06-09-2016, 02:31 PM
  #54529
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by odgreen
Was it you that said that?
LOL. No. I think you MAY be able to release the terminals from the back side of the box.

I can verify it in a bit.
cruiser54 is offline
Like
Old 06-09-2016, 03:02 PM
  #54530
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

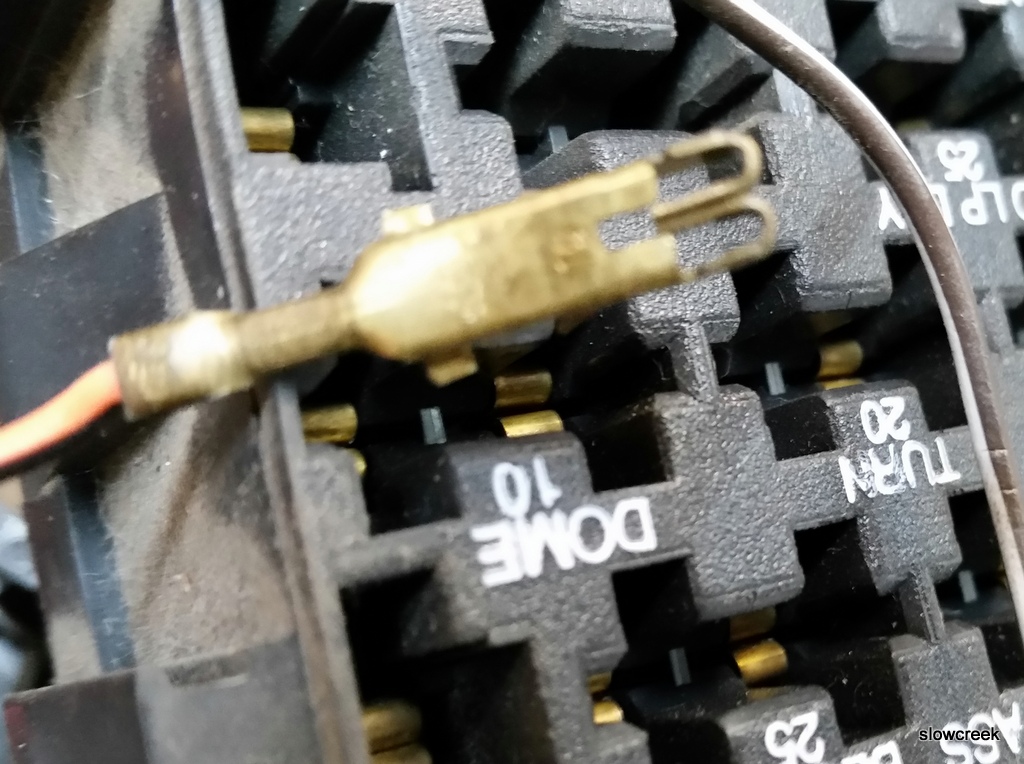

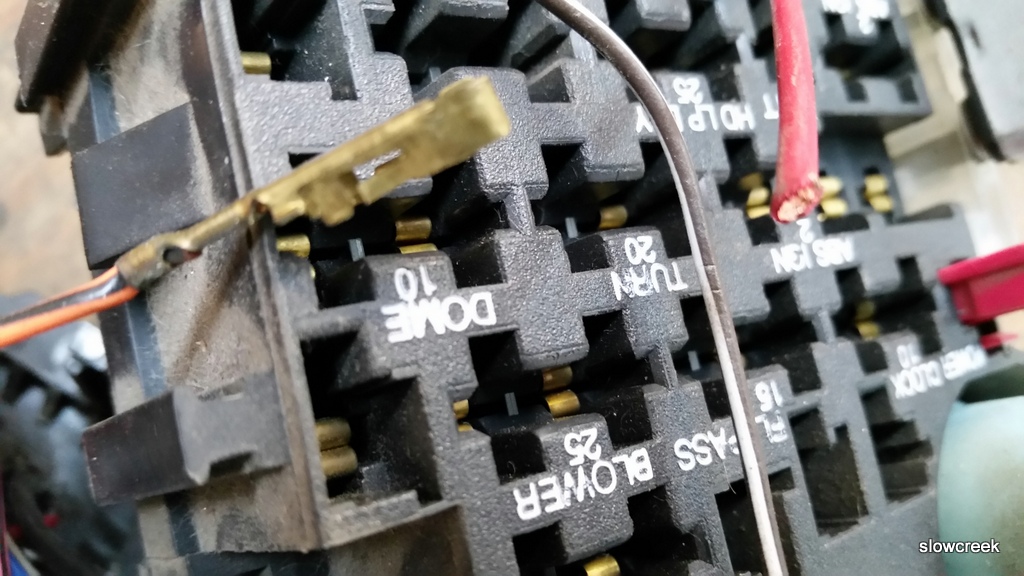

VERIFIED!!!

I am the biggest tard ever!!

Look what I did:
Attached Thumbnails XJ Ask the Question Thread-1-fusebox-terminal-001.jpg   XJ Ask the Question Thread-1-fusebox-terminal.jpg   XJ Ask the Question Thread-1-fusebox-terminal-002.jpg
cruiser54 is offline
Like
Old 06-09-2016, 03:41 PM
  #54531
Member

winginit's Avatar

Join Date: Apr 2016
Posts: 184
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default
Yup , those little tabs hold it in, bend them back a little push it in and it locks in place. yet another myth bites the dust LOL
winginit is offline
Like
Old 06-09-2016, 03:44 PM
  #54532
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,971
Received 1,559 Likes on 1,263 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by winginit
Yup , those little tabs hold it in, bend them back a little push it in and it locks in place. yet another myth bites the dust LOL
Yup. all you need to remove them is a pocket screwdriver.
cruiser54 is offline
Like
Old 06-09-2016, 04:27 PM
  #54533
Newbie

BurnToast's Avatar

Join Date: Jun 2016
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 I6
Default
Have an 88 with some flat rear springs. She has a 4" lift, what would be a solid, safe set of leaf springs to throw under her?
BurnToast is offline
Like
Old 06-09-2016, 04:27 PM
  #54534
CF Veteran

odgreen's Avatar

Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Likes: 0
Received 8 Likes on 8 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default
Then edit my post. Op's question worded it that he could just reach in and pull straight out.
odgreen is offline
Like
Old 06-09-2016, 10:31 PM
  #54535
CF Veteran

Joecam18's Avatar

Join Date: Jul 2013
Posts: 1,149
Likes: 0
Received 35 Likes on 24 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Default
Hi all. Hoping to get some advice for my throttle valve cable replacement. I get the gist of it and know how to do it, just not sure how to unhook the cable from the top of the transmission case. Judging from pictures, it looks like theres a metal hook thats holding it down. Any advice on how to disconnect the cable with the transmission still in place?

Thanks!



Name: 4upkC99l.jpg Views: 10 Size: 76.9 KB
(dont mind the circled bolts)
Joecam18 is offline
Like
Old 06-09-2016, 10:54 PM
  #54536
CF Veteran

odgreen's Avatar

Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Likes: 0
Received 8 Likes on 8 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Default
Originally Posted by Joecam18
Hi all. Hoping to get some advice for my throttle valve cable replacement. I get the gist of it and know how to do it, just not sure how to unhook the cable from the top of the transmission case. Judging from pictures, it looks like theres a metal hook thats holding it down. Any advice on how to disconnect the cable with the transmission still in place?

Thanks!

(dont mind the circled bolts)
You have to pull the pan to disconnect the cable
odgreen is offline
Like
Old 06-09-2016, 11:19 PM
  #54537
CF Veteran

Joecam18's Avatar

Join Date: Jul 2013
Posts: 1,149
Likes: 0
Received 35 Likes on 24 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by odgreen
You have to pull the pan to disconnect the cable
Yes absolutely! But I am just curious as to how to disconnect the cable from the external hook fixating it to the top of the transmission as circled in the first picture above
Joecam18 is offline
Like
Old 06-10-2016, 04:46 AM
  #54538
Newbie

Luckyhollow's Avatar

Join Date: Sep 2010
Location: West Virginia
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000 1987
Model: Cherokee
Engine: 4.0 2.5
Default
Originally Posted by cruiser54
VERIFIED!!!

I am the biggest tard ever!!

Look what I did:
Thanks for the pics and the info guys.
Is there any chance you all know of a place to buy new tabs?
Luckyhollow is offline
Like
Old 06-10-2016, 05:46 AM
  #54539
CF Veteran

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 40 Likes on 36 Posts
Year: 1999
Engine: 4.0
Default
Just loosen that bolt up then slide the cable from under the hook.
XJwonders is offline
Like
Old 06-10-2016, 08:17 AM
  #54540
CF Veteran

Joecam18's Avatar

Join Date: Jul 2013
Posts: 1,149
Likes: 0
Received 35 Likes on 24 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Default
Originally Posted by XJwonders
Just loosen that bolt up then slide the cable from under the hook.
Not sure ill be able to get a wrench up under there. Might just yield to a tranny shop
Joecam18 is offline
Like
