tornprince

i am so sorry to aask this question: i seriously need help wiring up a starter. i have the little wire hookt to the smaller screw, now there's 2 bigger ones that the positive connects too and i can't remember where it goes. just got the starter today, gotta have it wired b4 the end of the day, gotta move before the 3rd of july. again i am really sorry to ask, but it's important. btw it's a starter fer a 90 cherokee laredo. thanks.

dukie564

the large terminal on the solenoid closest to the motor connects to the motor coil terminal. The other large terminal goes to battery (+).

tornprincesgirl

that helped alot...now on tornprince's behalf...what is the motor coil terminal and where is it located? weve never had a cherokee before,the only one hes every worked on at all was my useless brothers,and its a 97 and a way different motor cuz its a grand cherokee. any answers at all would be great,and pictures too please. sorry to ask...

dukie564

usually it's not an actual terminal, it's the short thick wire that comes out of the starter body (the black wire with the cloth covering in the picture i posted)

zimbobwye

The larger stud, closer to the "body" of the starter, should already be connected to the starter motor terminal.. If there is already a wire there, then it is fine & you don't need to do anything. The other large stud, opposite the body, is what you would connect to the positive side of the battery. The smaller wire would go to the wire leading from the NSS/Ignition Switch. The Starter grounds itself when you bolt it on. If you need, I can take a picture of my setup for you.. It's on a 2000. But, should be similar!

zimbobwye

I need to post more, i'm tired of seeing "Newbie" under my name.

87laredoxj

I have a question about my stereo. Im trying to install an aftermarket head unit. Had it all wired and speakers and fuse are good but went to play a cd and it doesn't play what could be the problem

Customizer1000

Well if it requires an amp wire to be hooked up and all you have.is antena wire.hoked up that could be the.problem

87laredoxj

I don't have an amp now but had it hooked up and had a friend of mine look at it and couldn't figure it out either

Cherryokee

PM'd a link to the thread which includes a link to the harness.

I also found the cause of the mystery latch-up for the high beam after harness installation. It was caused by the factory fog lamp set-up. For now, the cure is to remove the factory fog lamp relay.

xjguy383

Considering getting the RC X flex 6.5 lift for $900. Until i can save up and get the long arm upgrade kit for $600 and make it a long arm. Going to run 33x12.5 Goodyear Wrangler Kevlar. It comes out to be the same price of the complete long arm. What should i do?

LSU NUT JOB

hello all,
i'm new to the jeep world, i just bought a 2000 cherokee w/ 60k on the clock, i want to make a trail runner out of her. i want to start with a rear locker, what are you running, and why do you like it? i'll hang up and listen now. thank you for your support.

GEAUX TIGERS

LSU NUT JOB

zimbobwye

good find! ..I'm jealous of how few miles you have! It'll last fooorrevveerrrrrr!

LSU NUT JOB

i have been looking for a LONG time and just came across it. it is 100% original and the inside is PERFECT. i want to put a 3 inch lift, larger tires, locker, front bumper w/ a winch. i want to explore the trails in Colorado and New Mexico.

Thanks for the kind words.

LSU NUT JOB

Skyline

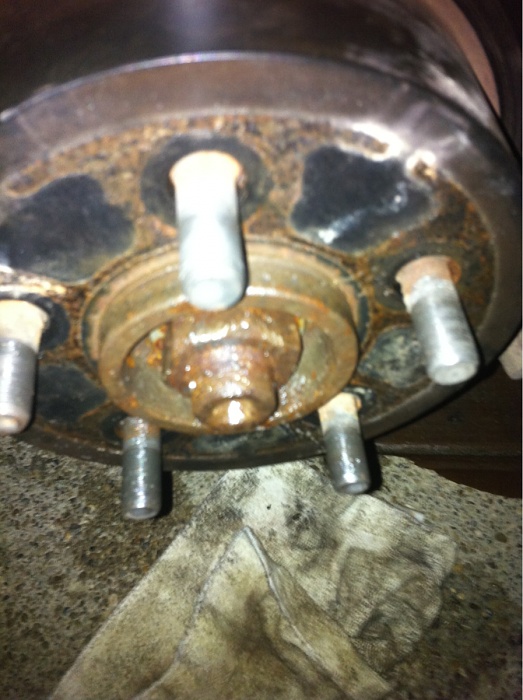

Am I right in thinking this bolt needs to come out to get my rotor off?

Sent from my iPhone using CherokeeFM
