XJ Ask the Question Thread
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II

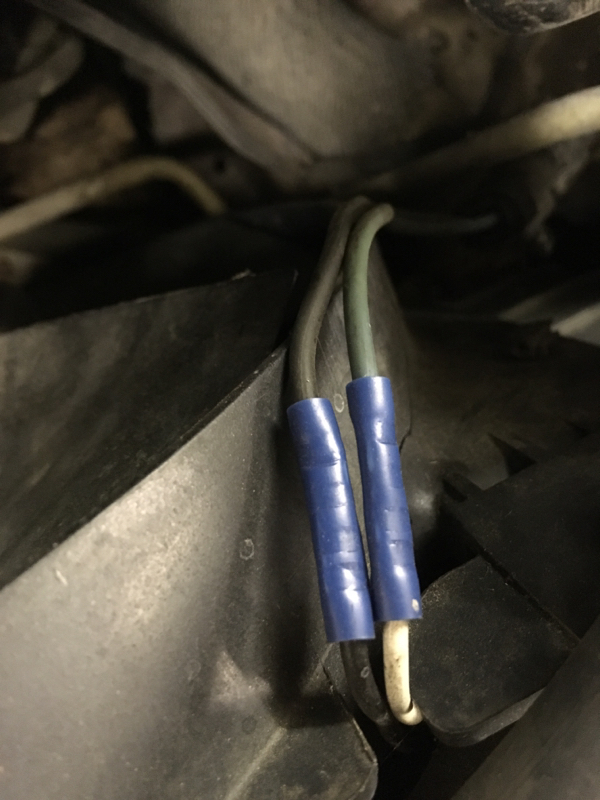

Swapping a 98+ efan into my 91 XJ. Got a proper wiring harness plug from a member here. Problem is Jeep sucks at wiring, and the new plug wiring is clearly beefier than the stuff they used in 91. What should I do here? I'm considering going the "headlight harness" route and using the stock wiring as a relay trigger for standalone wiring.
I put the older square-blade style into my 2001. Much larger wiring on the fan than the feed from the harness. The wires do not get noticeably warmer during operation. If you're using the newest style fan with the curve blades attached to an outer ring, I believe they use less power. You should be fine.
(It's already off of a relay, in case you weren't aware)
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Square-blade fan or the fancy curved one?
I put the older square-blade style into my 2001. Much larger wiring on the fan than the feed from the harness. The wires do not get noticeably warmer during operation. If you're using the newest style fan with the curve blades attached to an outer ring, I believe they use less power. You should be fine.
(It's already off of a relay, in case you weren't aware)
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
1995 FSM says a 20A fuse and 16 AWG wire. 2001 FSM says a 40A fuse and 12 AWG wire.
You will certainly want to build a harness for that thing. And I think I'm going to put that older fan back on the shelf and grab the newer style from my '99
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
I checked my FSMs and now I'm not so sure that my memory isn't backwards.
1995 FSM says a 20A fuse and 16 AWG wire. 2001 FSM says a 40A fuse and 12 AWG wire.
You will certainly want to build a harness for that thing. And I think I'm going to put that older fan back on the shelf and grab the newer style from my '99
Reagarding my Jeep CHEROKEE XJ
hi, my mame is Didier Pierre, I'm in Congo Brazzaville. I have a Daimler Chrysler Jeep Cherrokee XJ model 6 online 4.L with ABS. whinch is on 103.000 km. i realy love this car.
since 2013, I have same technical probem. on board the ligt of Cheack engine is always on. i would like to know at this stage of 103.000 km what I have to replaces?
Also with a smal budget, if it's possible. how can'I get better acessories for:
a complete Ignition systems, 12 champion spark plugs, dynaforce alternator, battery cable kit, battery disconnect switches. ful pump relay, electric ful pomp, Engine gasket sets, transmission cooler, oil coolers and accessories, transmission new tricks automatic, set proforged suspension components, front drun to disc brake conversion kits, Racing2- stage system coat pants quart jeep black color, ultra heat barrier/sound and vibration, body styling accessories complit front grille kits (with 4 lampes), led auxillary lights, faster brighter better taillights rear. Rear cool springs shocks pair, all filter, iol air and cabin. trupart select surpentine belts, hub and bearing assemblies pairs and master cylinders for brake oil, wheel cylinders rear brake. universal joints complet car set.
since 2013, I have same technical probem. on board the ligt of Cheack engine is always on. i would like to know at this stage of 103.000 km what I have to replaces?
Also with a smal budget, if it's possible. how can'I get better acessories for:
a complete Ignition systems, 12 champion spark plugs, dynaforce alternator, battery cable kit, battery disconnect switches. ful pump relay, electric ful pomp, Engine gasket sets, transmission cooler, oil coolers and accessories, transmission new tricks automatic, set proforged suspension components, front drun to disc brake conversion kits, Racing2- stage system coat pants quart jeep black color, ultra heat barrier/sound and vibration, body styling accessories complit front grille kits (with 4 lampes), led auxillary lights, faster brighter better taillights rear. Rear cool springs shocks pair, all filter, iol air and cabin. trupart select surpentine belts, hub and bearing assemblies pairs and master cylinders for brake oil, wheel cylinders rear brake. universal joints complet car set.
Senior Member
Didier,
The check engine light can come on for many reasons. The good news is that the engine computer knows why the check engine light is on, and it will tell you. You just have to ask it.
What year is your jeep?
The check engine light can come on for many reasons. The good news is that the engine computer knows why the check engine light is on, and it will tell you. You just have to ask it.
What year is your jeep?
CF Veteran
Senior Member
CF Veteran
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 13 Likes
on
12 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Yeah, I know. Doesn't go on the road though.
Yes, the newer style is quieter and move more air. Not at all surprising if they use twice the juice.
CF Veteran
Join Date: Mar 2012
Location: Quebec
Posts: 1,024
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0L
will regular re-gearing kits work in an lsd 8.25? i'm looking into re-gearing soon but now that I'm building up a trac loc 8.25, I was wondering so before I look into buying something and having to return it because it doesn't work with my setup.
CF Veteran
Join Date: Feb 2015
Location: North Carolina
Posts: 1,528
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0

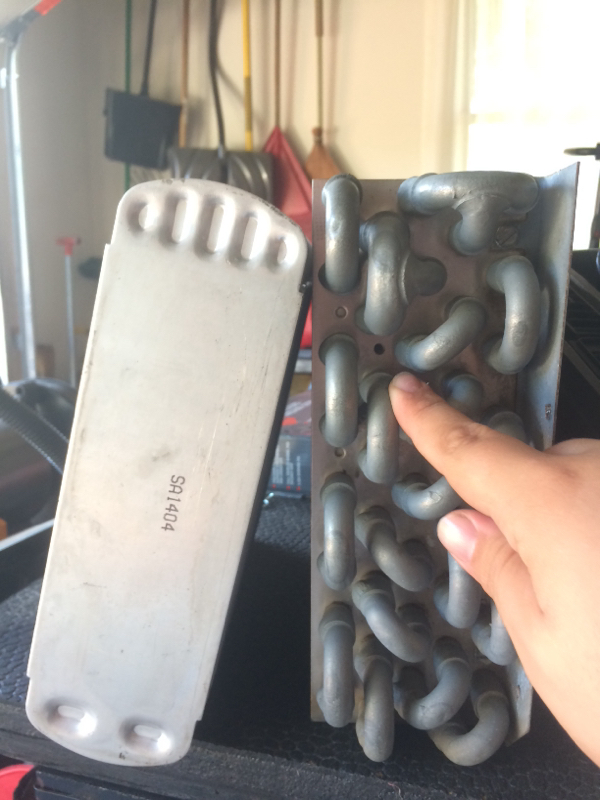

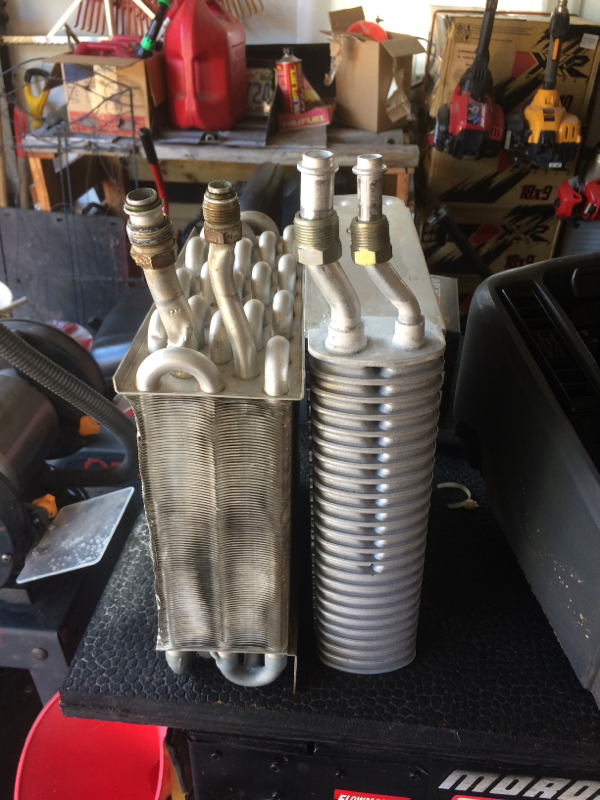

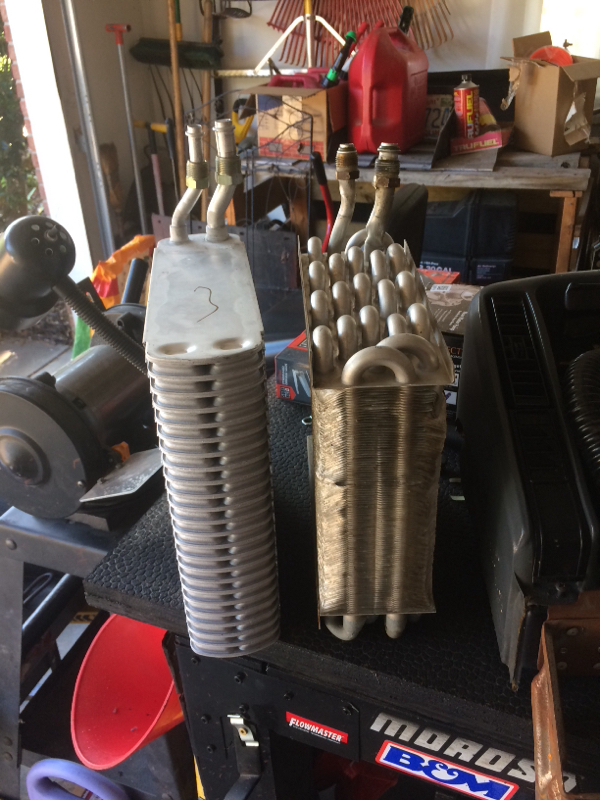

I've found several threads on this but nobody ever had an answer. No matter where I looked I couldn't find the OEM style A/C evaporator so I finnally broke down and order the typical replacment from RockAuto. How does everybody fit their thermistor n the new one? Do I drill a hole? I Dont want to drill in wrong spot, should I just put the thermistor so it's resting against the new vaporator instead of going through it? What does everybody else do? Not to mention, the new evaporator fits a bit looser than the old one.
